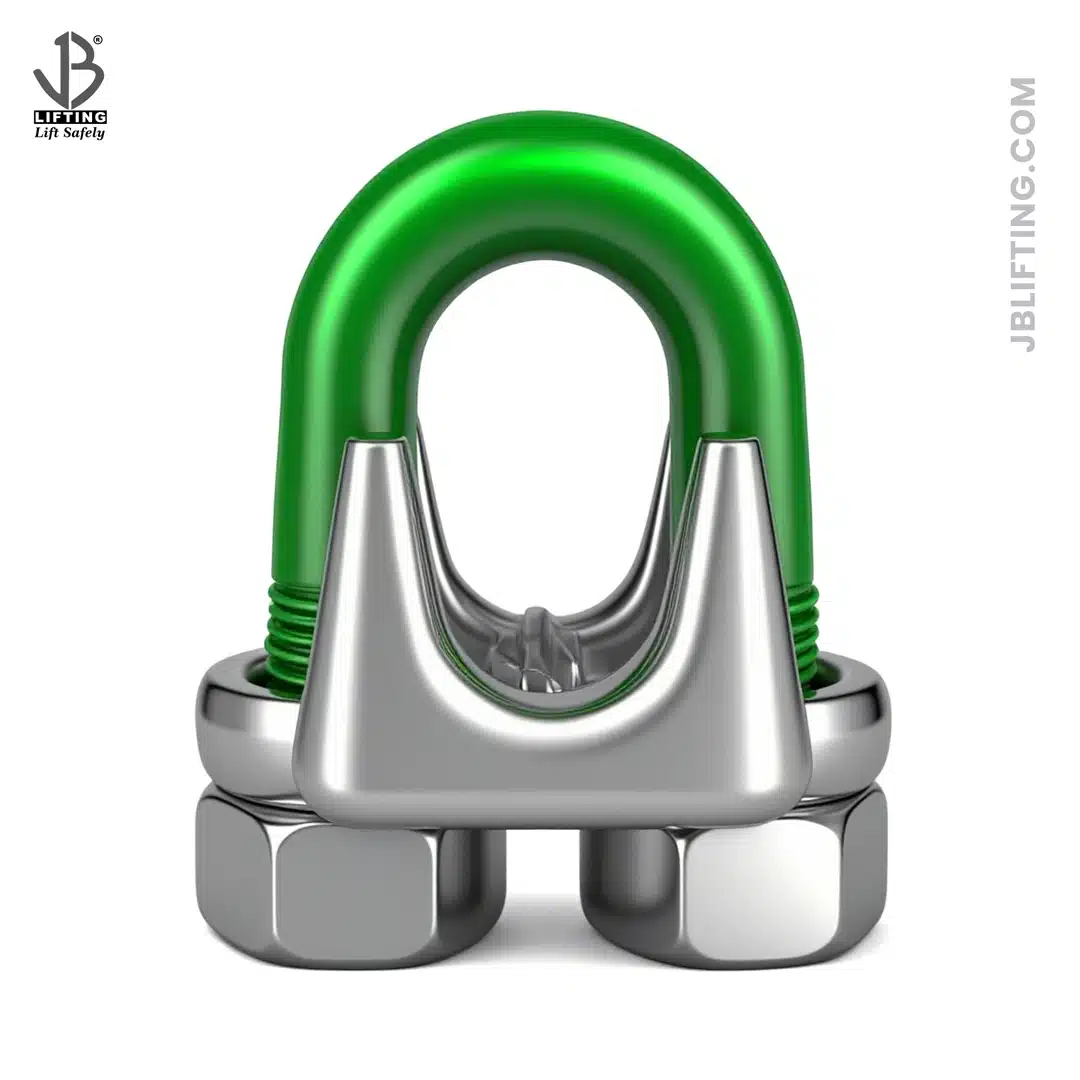

HEAVY DUTY WIRE ROPE CLIP
SSTC heavy-duty steel wire rope clips are used on wire rope to make eye connections when socketing or mechanical splicing is not feasible or when a temporary joint is required.
Standard: Conforming to federal specification FF – C 450 type 1 class 1.
Material: Forged carbon steel
Finish: Hot dip galvanized

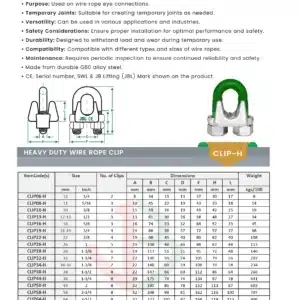

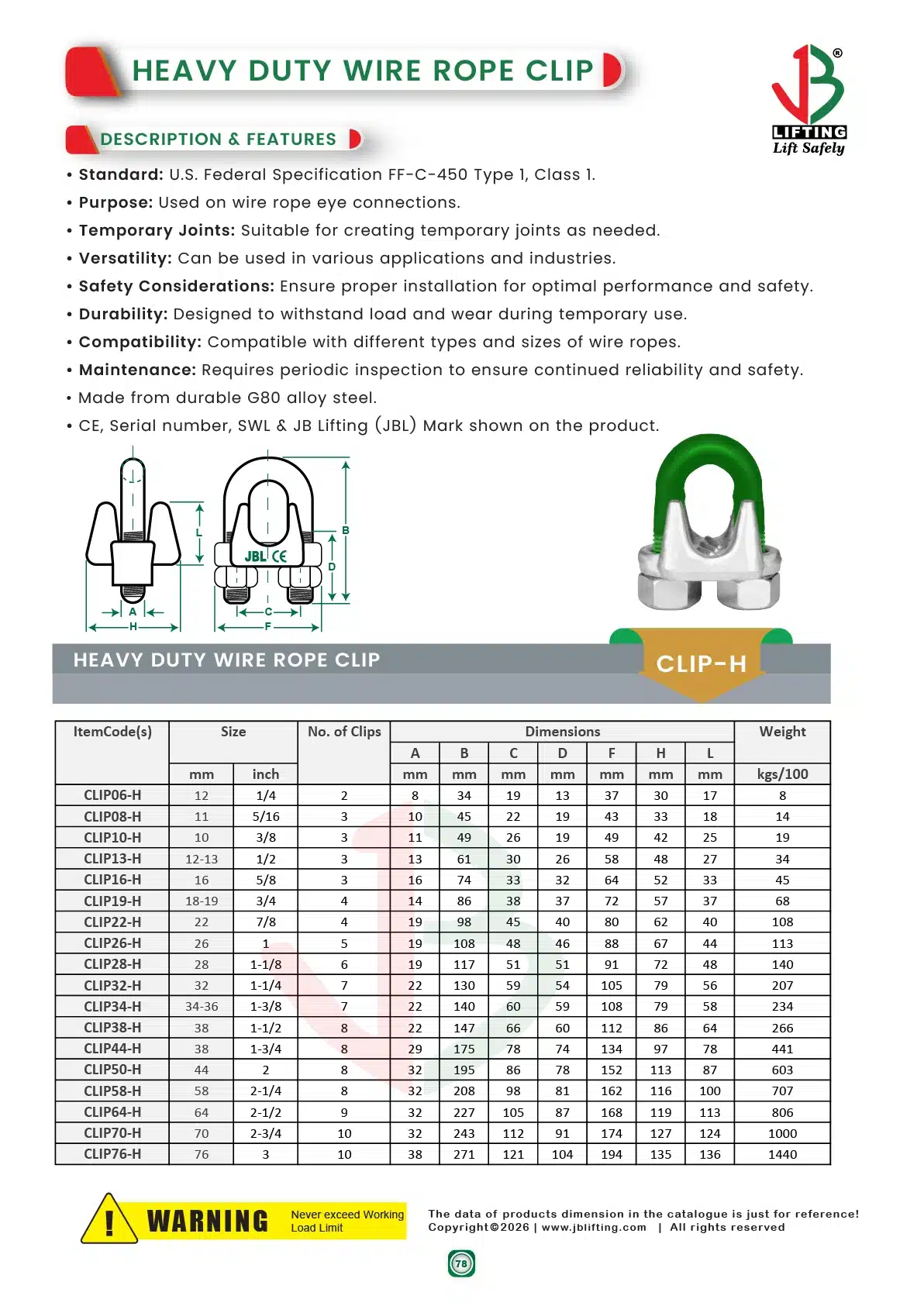

Specifications:
ItemCode(s) | Size | No. of Clips | Dimensions | Weight | |||||||
(mm) | (inch) | A | B | C | D | F | H | L | |||
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | kgs/100 | ||||
CLIP06-H | 6 | 1/4 | 2 | 8 | 34 | 19 | 13 | 37 | 30 | 17 | 8 |
CLIP08-H | 8 | 5/16 | 3 | 10 | 45 | 22 | 19 | 43 | 33 | 18 | 14 |
CLIP10-H | 10 | 3/8 | 3 | 11 | 49 | 26 | 19 | 49 | 42 | 25 | 19 |
CLIP13-H | 12-13 | 1/2 | 3 | 13 | 61 | 30 | 26 | 58 | 48 | 27 | 34 |
CLIP16-H | 16 | 5/8 | 3 | 16 | 74 | 33 | 32 | 64 | 52 | 33 | 45 |
CLIP19-H | 18-19 | 3/4 | 4 | 14 | 86 | 38 | 37 | 72 | 57 | 37 | 68 |
CLIP22-H | 22 | 7/8 | 4 | 19 | 98 | 45 | 40 | 80 | 62 | 40 | 108 |
CLIP26-H | 26 | 1 | 5 | 19 | 108 | 48 | 46 | 88 | 67 | 44 | 113 |
CLIP28-H | 28 | 1-1/8 | 6 | 19 | 117 | 51 | 51 | 91 | 72 | 48 | 140 |
CLIP32-H | 32 | 1-1/4 | 7 | 22 | 130 | 59 | 54 | 105 | 79 | 56 | 207 |
CLIP34-H | 34-36 | 1-3/8 | 7 | 22 | 140 | 60 | 59 | 108 | 79 | 58 | 234 |
CLIP38-H | 38 | 1-1/2 | 8 | 22 | 147 | 66 | 60 | 112 | 86 | 64 | 266 |
CLIP44-H | 38 | 1-3/4 | 8 | 29 | 175 | 78 | 74 | 134 | 97 | 78 | 441 |
CLIP50-H | 44 | 2 | 8 | 32 | 195 | 86 | 78 | 152 | 113 | 87 | 603 |
CLIP58-H | 58 | 2-1/4 | 8 | 32 | 208 | 98 | 81 | 162 | 116 | 100 | 707 |
CLIP64-H | 64 | 2-1/2 | 9 | 32 | 227 | 105 | 87 | 168 | 119 | 113 | 806 |
CLIP70-H | 70 | 2-3/4 | 10 | 32 | 243 | 112 | 91 | 174 | 127 | 124 | 1000 |
CLIP76-H | 76 | 3 | 10 | 38 | 271 | 121 | 104 | 194 | 135 | 136 | 1440 |
