ر.س 250.00 – ر.س 5,000.00 EX.VAT
Brand:
- Manufactured from high-quality tensile steel for exceptional strength and durability.
- Furnished with roller bearings for smooth and efficient operation
- Reduce friction and wear on ropes and cables.
- Reliable performance in critical lifting operations.
Please select Size and Diameter
Ask An Expert
Rope Snatch Block-Crane Sheave Block Pulley With Shackle
Introducing our Rope Snatch Block-Crane Sheave Block Pulley with Shackle, a premium lifting accessory meticulously engineered to deliver outstanding performance and reliability in a variety of rigging and lifting applications. Crafted from the highest quality tensile steel, this pulley block is designed to withstand heavy loads and demanding working conditions with ease.
Key Features:
- Heavy-duty construction for enhanced durability and performance.
- High load capacity to handle demanding lifting tasks.
- Smooth sheave operation for efficient rope handling and reduced wear.
- Included shackle for secure attachment and easy setup.
Optional Features:-
- Galvanized Finish
- Higher capacity, custom snatch blocks are available

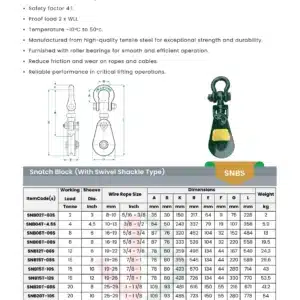

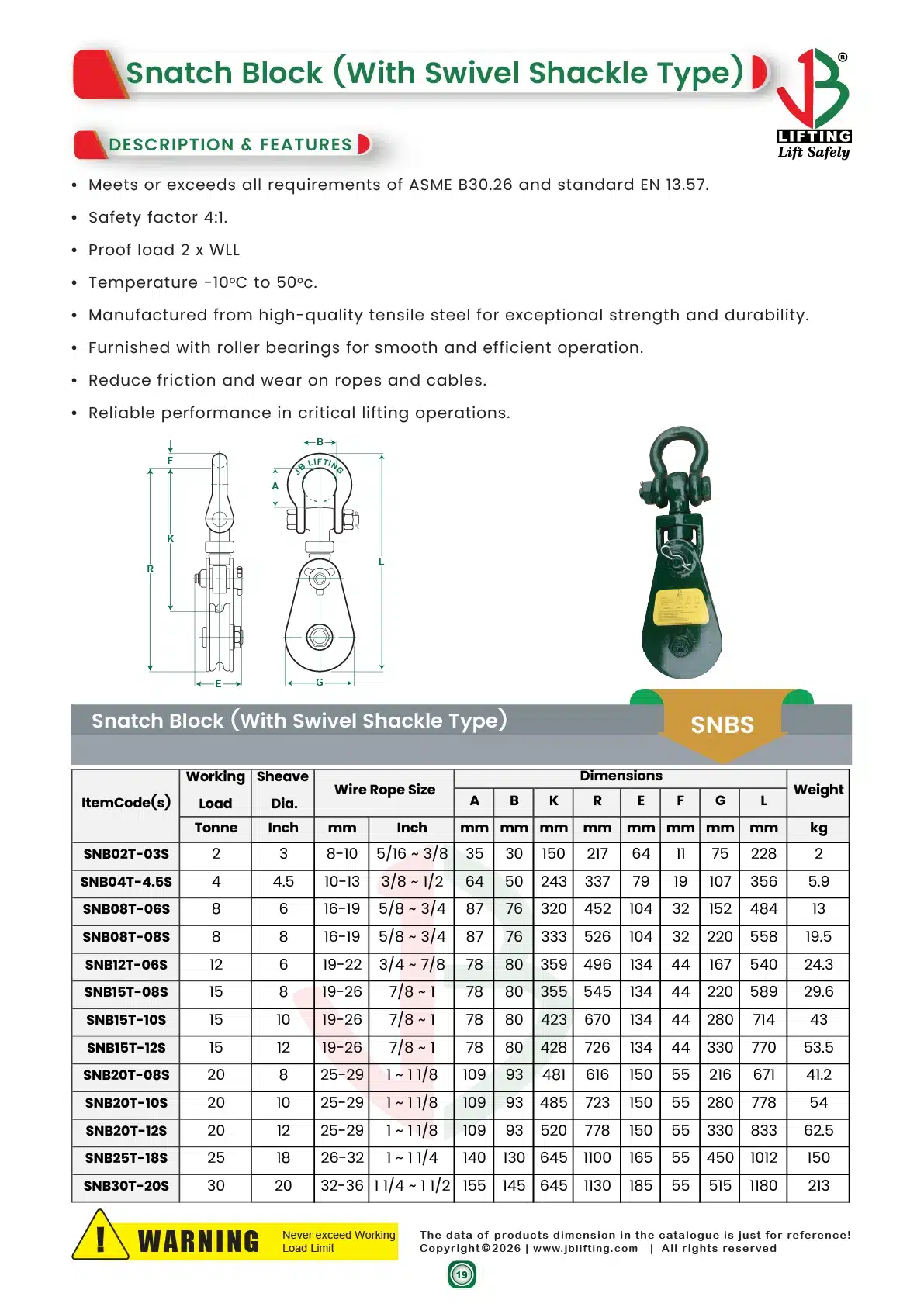

Specifications:
| ItemCode(s) | Working Load Limit | Sheave Dia. | Wire Rope Size | Dimensions | Weight | ||||||||
| A | B | K | R | E | F | G | L | ||||||
| (Tons) | (Inch) | (mm) | (Inch) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| SNB02T-03S | 2 | 3 | 8-10 | 5/16 ~ 3/8 | 35 | 30 | 150 | 217 | 64 | 11 | 75 | 228 | 2.0 |
| SNB04T-4.5S | 4 | 4.5 | 10-13 | 3/8 ~ 1/2 | 64 | 50 | 243 | 337 | 79 | 19 | 107 | 356 | 5.9 |
| SNB08T-06S | 8 | 6 | 16-19 | 5/8 ~ 3/4 | 87 | 76 | 320 | 452 | 104 | 32 | 152 | 484 | 13.0 |
| SNB08T-08S | 8 | 8 | 16-19 | 5/8 ~ 3/4 | 87 | 76 | 333 | 526 | 104 | 32 | 220 | 558 | 19.5 |
| SNB12T-06S | 12 | 6 | 19-22 | 3/4 ~ 7/8 | 78 | 80 | 359 | 496 | 134 | 44 | 167 | 540 | 24.3 |
| SNB15T-08S | 15 | 8 | 19-22 | 3/4 ~ 7/8 | 78 | 80 | 355 | 545 | 134 | 44 | 220 | 589 | 29.6 |
| SNB15T-10S | 15 | 10 | 19-22 | 3/4 ~ 7/8 | 78 | 80 | 423 | 670 | 134 | 44 | 280 | 714 | 43.0 |
| SNB15T-12S | 15 | 12 | 19-22 | 3/4 ~ 7/8 | 78 | 80 | 428 | 726 | 134 | 44 | 330 | 770 | 53.5 |
| SNB20T-08S | 20 | 8 | 25-29 | 1 ~ 1 1/8 | 109 | 93 | 481 | 616 | 150 | 55 | 216 | 671 | 41.2 |
| SNB20T-10S | 20 | 10 | 25-29 | 1 ~ 1 1/8 | 109 | 93 | 485 | 723 | 150 | 55 | 280 | 778 | 54.0 |
| SNB20T-12S | 20 | 12 | 25-29 | 1 ~ 1 1/8 | 109 | 93 | 778 | 150 | 55 | 330 | 833 | 62.5 | |
Application:
Our Rope Snatch Block-Crane Sheave Block Pulley with Shackle is suitable for a wide range of lifting and rigging applications across various industries, including:
- Construction: Used for lifting heavy materials and equipment on construction sites.
- Marine: Utilized in marine environments for mooring, towing, and lifting operations.
- Mining: Essential for handling and transporting heavy loads in mining operations.
- Transportation: Used for securing and lifting cargo on trucks, trailers, and other vehicles.
| Weight | N/A |
|---|---|
| Size (Tonne) | 2T, 4T, 8T, 12T, 15T, 20T |
| Sheave Diameter (Inch) | 3 Inch, 4.5 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch |
1 review for Rope Snatch Block-Crane Sheave Block Pulley With Shackle
You must be logged in to post a review.
Related products
Can't Find What You're Looking For?
If you couldn’t find the product you need , don’t worry! Fill out the form below, and our team will assist you in finding the perfect match. Your satisfaction is our priority.
ر.س 250.00 – ر.س 5,000.00 EX.VAT
Request for Quotation
Complete The Form Below To Start Discussing Your Lifting Product Needs.
farrukh.buttt –
This single tool, often called a snatch block with shackle, combines three functionalities:
Changes direction: Redirects pulling force for easier maneuvering of heavy objects.
Boosts lifting power: Utilizes a sheave block to distribute the load and reduce friction.
Secures connections: Features a shackle for robust attachment of ropes or chains.
Ideal for construction, recovery, and marine tasks, it offers versatility, efficiency, and secure lifting. Remember to choose the right size and capacity for your needs. plz try it!
