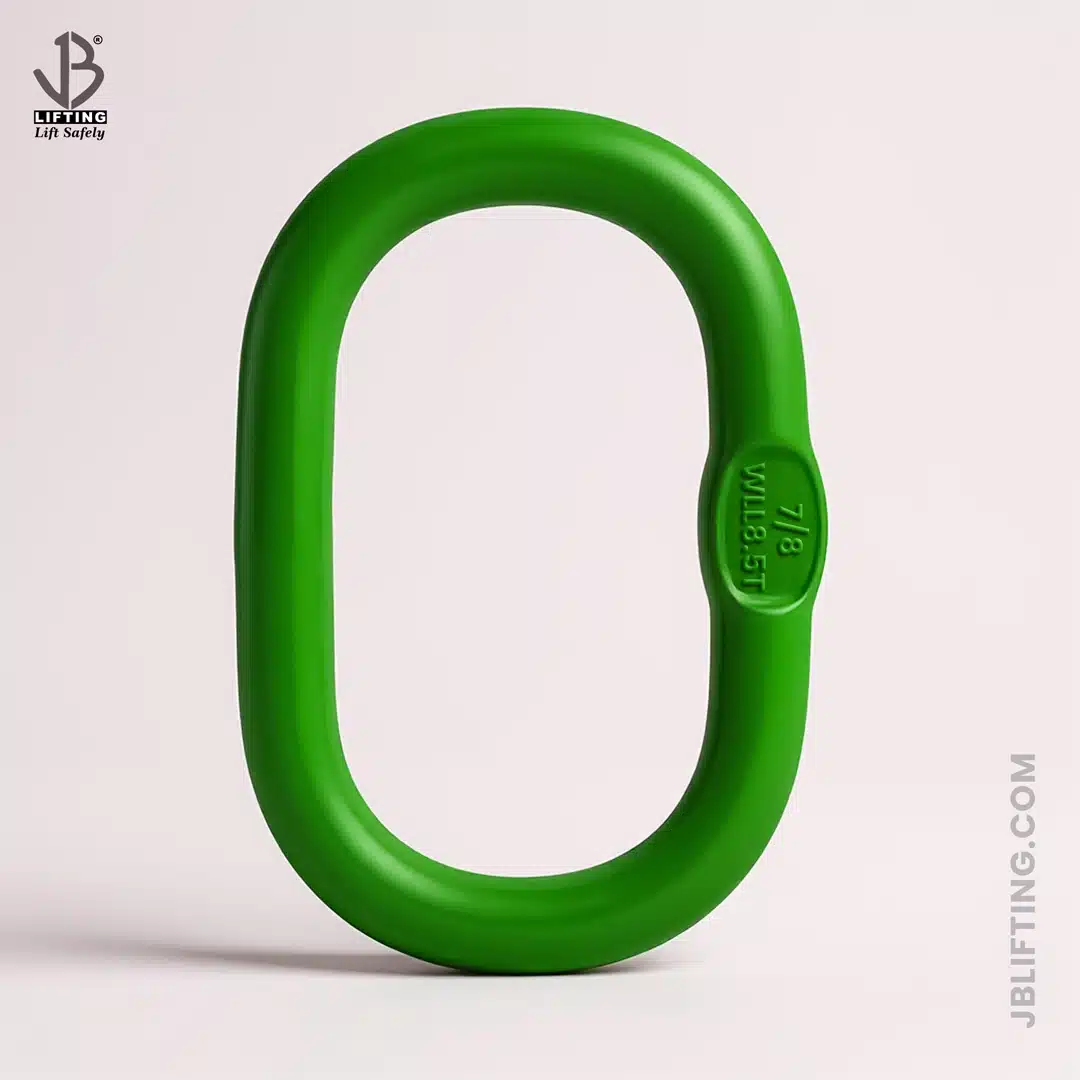

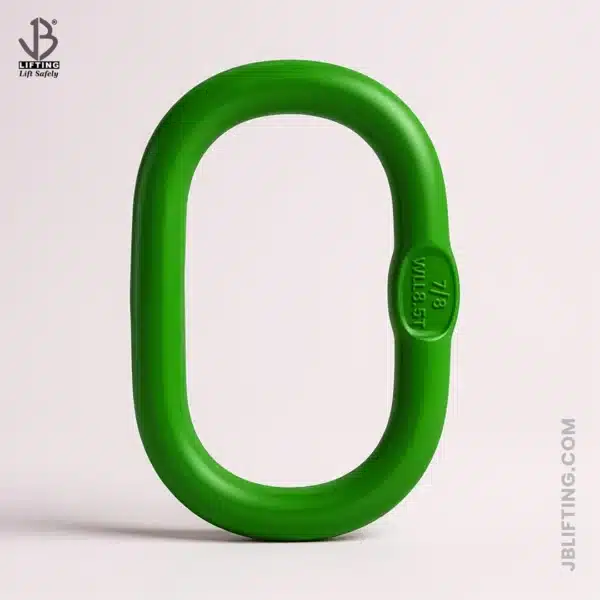

Welded Master LinkÂ
Key Features:
- Designed for coupling with Grade 80 alloy chain or wire rope for overhead lifting operations.
- Versatile Master Link for multipurpose applications.
- Material: G80 alloy steel(quenched and tempered)
- Proof load: 2.5 times of WLL.
- Safety factory: 4:1.
- Fatigue rated 1.5 times WLL at 20,000 cycles.
- Finish: color painted
- According to standard: EN1677-4
- Traceability code, capacity, and WLL embossed.
Specifications:
ItemCode(s) | Capacity | Dimensions | Weight | ||
D | L | W | |||
(Ton) | (mm) | (mm) | (mm) | (kg/pc) | |
ML-2T | 2.50 | 13 | 115 | 60 | 0.40 |
ML-4T | 4.25 | 16 | 120 | 70 | 0.60 |
ML-6T | 6.7 | 20 | 170 | 90 | 1.30 |
ML-8T | 8.2 | 22 | 170 | 90 | 1.60 |
ML-10T | 10.7 | 25 | 190 | 103 | 2.30 |
ML-11T | 11.8 | 28 | 270 | 140 | 4.00 |
ML-17T | 17.1 | 32 | 270 | 140 | 5.30 |
ML-28T | 28.1 | 38 | 270 | 140 | 7.50 |
ML-39T | 39.3 | 45 | 320 | 170 | 12.3 |
ML-45T | 45.0 | 50 | 380 | 200 | 18 |
ML-65T | 65.3 | 60 | 430 | 220 | 30 |
ML-84T | 84.4 | 70 | 500 | 250 | 44 |
farrukh.buttt –
Enhance strength and reliability in your rigging applications with our Welded Master Link. Crafted for durability, it ensures secure connections, meeting the highest standards of safety and performance. Elevate your lifting solutions with confidence.
