Electric Chain Hoist / Block Without Trolley
Meets And Exceeds Standards: EN ISO 12100:2010, EN 14492-2:2006+A1:2009, EN 60204-32:2008
Technical Features:
- Relative humidity: <85%
- Ambient temperature: -25ºC-40ºC
- Working class: M4
- Level of Protection: IP54
- Power: 3P/220~480V/50HZ or 60HZ
- Chain size: φ5×15/φ7.1X 21/φ9×27
Key Features of electric chain hoist without electric trolley:
The chain hoist electric offers exceptional performance and safety for lifting tasks in industrial settings. Its robust design and advanced features ensure efficient and reliable operations for a variety of applications.

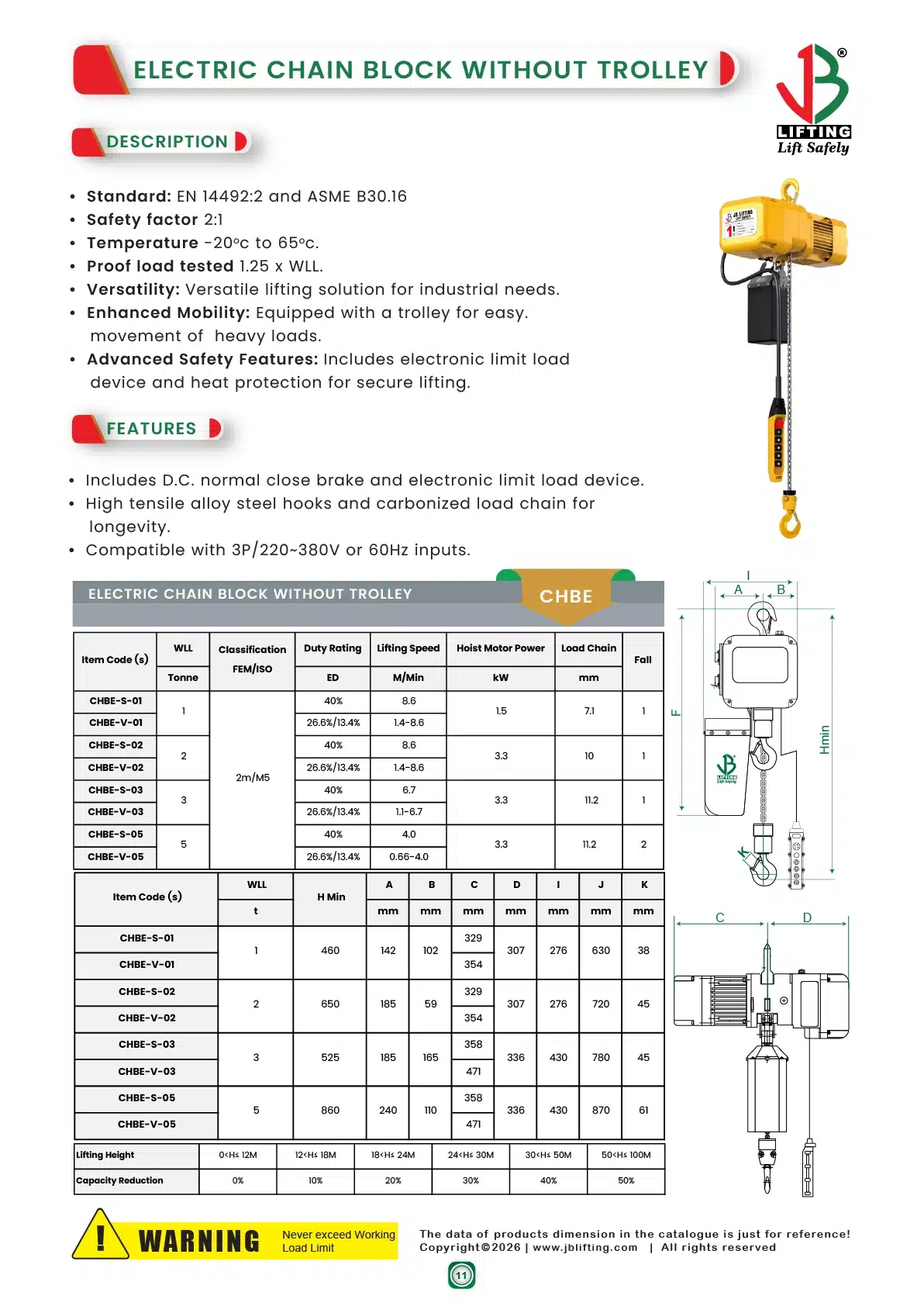

Electric Chain Hoist Diagram:
Explore detailed electric chain hoist diagrams and premium lifting solutions. Your trusted source in Saudi Arabia for industrial safety and lifting equipment.
Item Code (s) |
WLL (t) |
Classification FEM/ISO |
Duty Rating (ED) |
Lifting Speed (M/Min) |
Hoist Motor Power (kW) |
Load Chain (mm) |
Fall |
CHBE-S-01 | 1 | 2m/M5 | 40% | 8.6 | 1.5 | 7.1 | 1 |
CHBE-V-01 | 26.6%/13.4% | 1.4-8.6 | |||||
CHBE-S-02 | 2 | 40% | 8.6 | 3.3 | 10 | 1 | |
CHBE-V-02 | 26.6%/13.4% | 1.4-8.6 | |||||
CHBE-S-03 | 3 | 40% | 6.7 | 3.3 | 10 | 1 | |
CHBE-V-03 | 26.6%/13.4% | 1.1-6.7 | |||||
CHBE-S-05 | 5 | 40% | 4.0 | 3.3 | 11.2 | 2 | |
CHBE-V-05 | 26.6%/13.4% | 0.66-4.0 |
Item Code (s) |
WLL (t) |
H Min | A | B | C | D | I | J | K |
CHBE-S-01 | 1 | 460 | 142 | 102 | 329 | 307 | 276 | 630 | 38 |
CHBE-V-01 | 354 | ||||||||
CHBE-S-02 | 2 | 650 | 185 | 59 | 329 | 307 | 276 | 720 | 45 |
CHBE-V-02 | 354 | ||||||||
CHBE-S-03 | 3 | 525 | 185 | 165 | 358 | 336 | 430 | 780 | 45 |
CHBE-V-03 | 471 | ||||||||
CHBE-S-05 | 5 | 860 | 240 | 110 | 358 | 336 | 430 | 870 | 61 |
CHBE-V-05 | 471 |
Note: Custom lengths are available on request. Contact Us for inquiry
Application of electric chain hoist without electric trolley:
The electric chain hoist without electric trolley is suitable for a wide range of lifting tasks in industrial settings, including:
- Manufacturing facilities: Ideal for lifting heavy machinery and equipment during production processes.
- Warehouses and distribution centers: Perfect for loading and unloading goods from storage areas or trucks.
- Construction sites: Essential for lifting materials and tools to different levels on construction projects.
- Workshops: Suitable for lifting and maneuvering workpieces or components in automotive and metalworking workshops.
How to Use:
Proper usage of a chain hoist electric ensures safe and efficient lifting operations in industrial settings. By following the correct procedures, you can maximize the performance and longevity of your chain hoist electric while maintaining workplace safety.
- Ensure the relative humidity is below 85% and the ambient temperature is within the range of -25°C to 40°C before operation.
- Connect the hoist to a compatible power source according to the specified voltage and frequency requirements.
- Attach the load securely to the hoist using the top hook, ensuring it is properly positioned and balanced.
- Use the control panel to operate the hoist, raising or lowering the load as needed. The electronic limit load device prevents the chain from being over-tightened.
- Monitor the operation of the hoist, ensuring smooth and controlled lifting. The brake engages automatically once the motor stops, holding the load safely in place.
- After use, store the chain hoist electric in a safe and dry location, keeping the load chain in the chain container to protect it from dirt and debris.
Precautions of hoist electric chain:
- Ensure the electric chain hoist has a correct earth connection before applying it for operation.
- Before lifting a load, examine the load chain to check for any twists, kinks, or turn-overs of the bottom hook for multi-falls.
- Only use the hoist for loads within its specified capacity; never exceed the rated capacity.
- Make sure to lift the load vertically; avoid lifting diagonally or towing a load beyond 10 degrees.
- While operating, never allow anyone to stand or work underneath the load.
- Do not use the load chain as slinging tackle for lifting any load.
- Never apply any load to the tip of the hook for lifting.
- When lifting, avoid operating the hoist with rapid up and down motions repetitively.
- Do not run the hoist beyond the limit position.
- Never lift a load using two or more hoists simultaneously.
- Do not dismantle or adjust the limit load device yourself.
- Avoid using the limit load device for measuring the load.
- Ensure the load chain is properly lubricated with suitable oil or grease before use, and perform periodic lubrication to ensure normal operation.
- When lifting, ensure the slings are properly placed in the hook throat, and the safety latch is securely closed.
