Electric Chain Hoist Block With Trolley
Meets And Exceeds Standards: EN ISO 12100:2010, EN 14492-2:2006+A1:2009, EN 60204-32:2008
Technical Features of Electric Chain Block with Trolley:
- Relative humidity: <85%
- Ambient temperature: -25ºC-40ºC
- Working class: M4
- Level of Protection: IP54
- Power: 3P/220~480V/50HZ or 60HZ
- Chain size: φ5×15/φ7.1X 21/φ9×27
Key Features of Chain Block and Trolley:

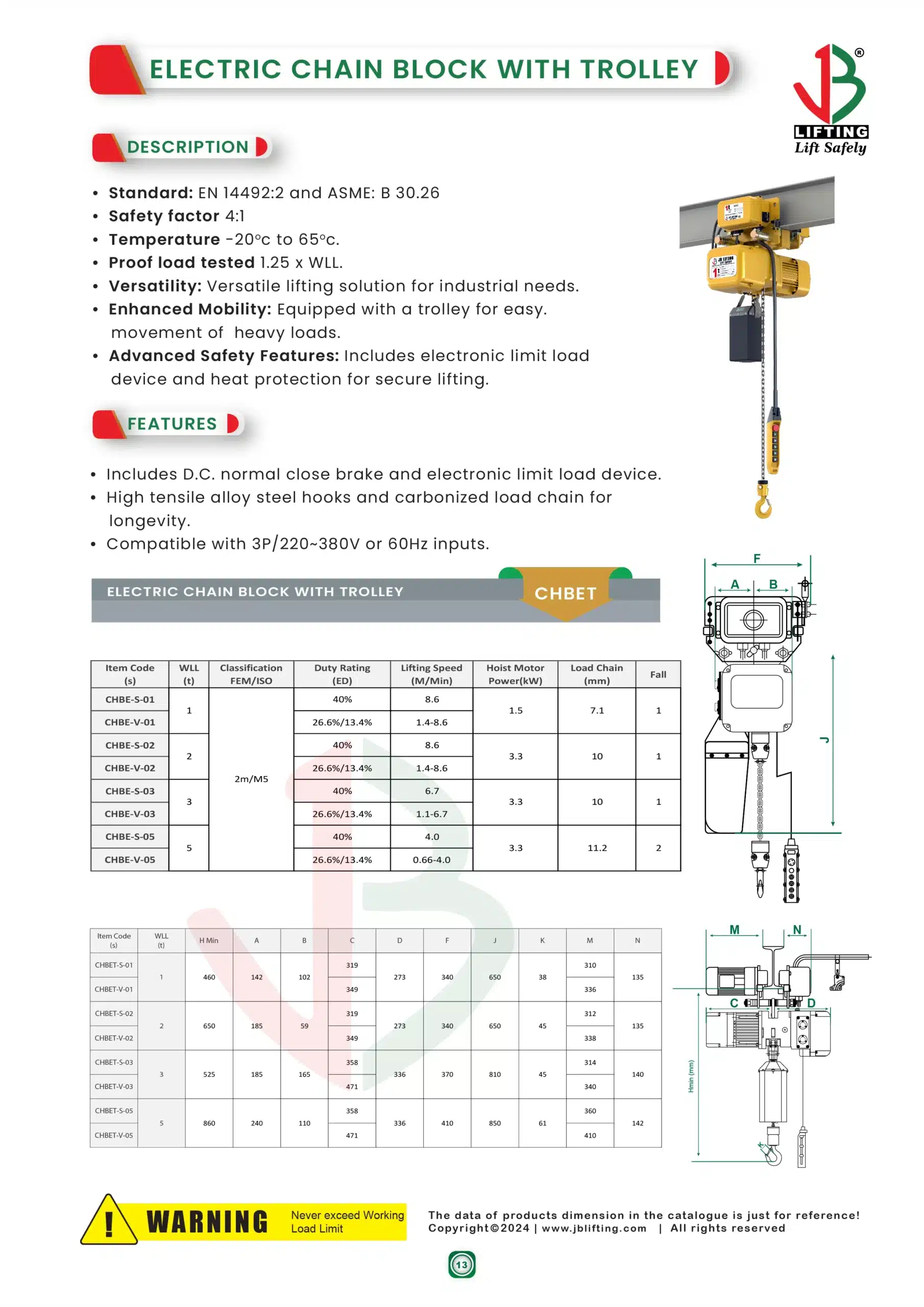

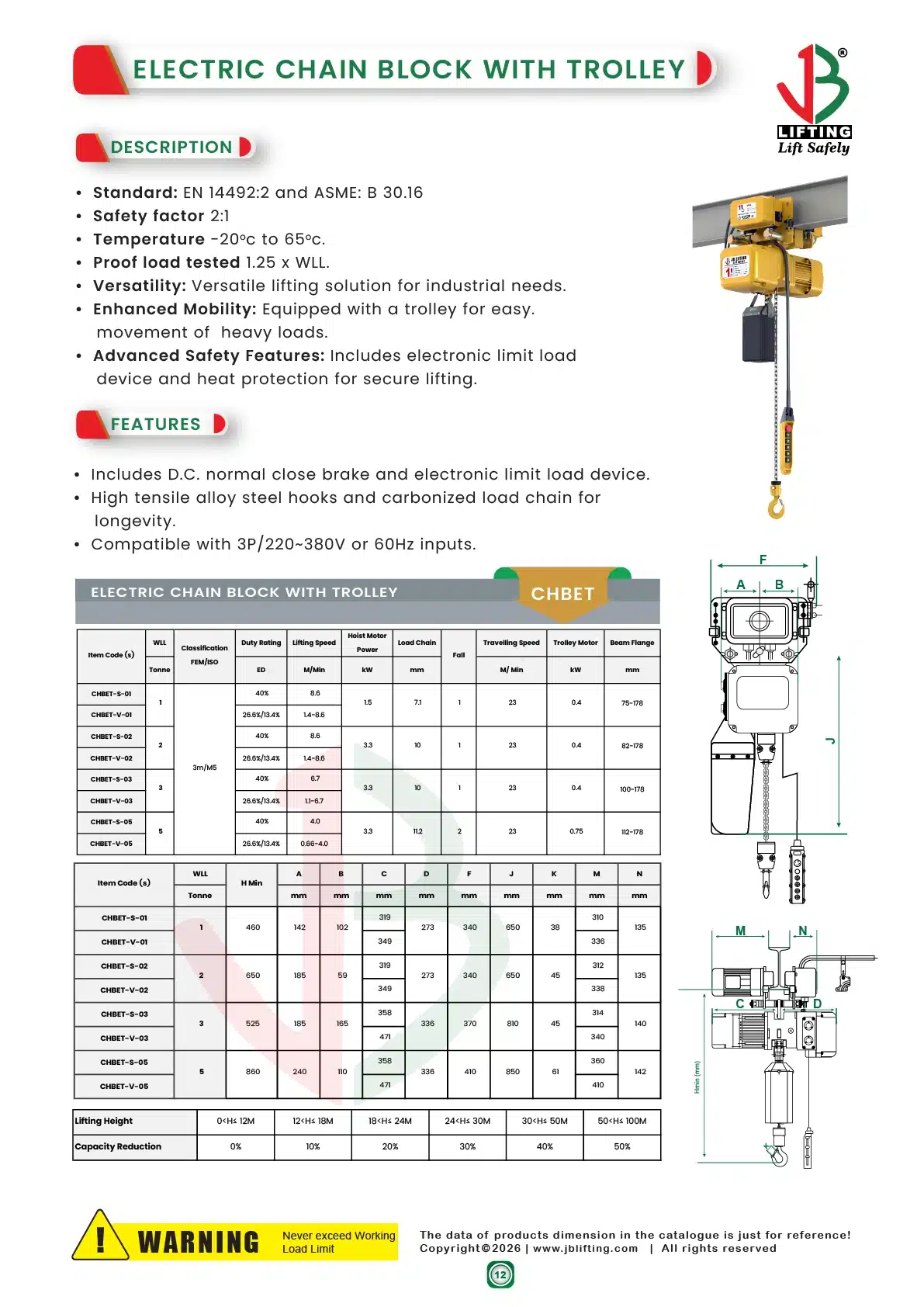

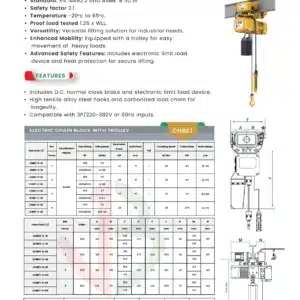

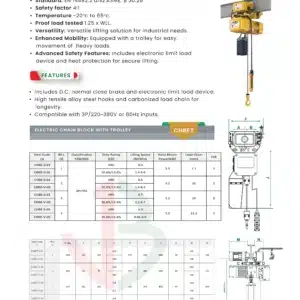

Electric Chain Hoist Diagram:
Explore detailed electric chain hoist diagrams and premium lifting solutions. Your trusted source in Saudi Arabia for industrial safety and lifting equipment.
Item Code (s) |
WLL (t) |
Classification FEM/ISO |
Duty Rating (ED) | Lifting Speed (M/Min) | Hoist Motor Power(kW) | Load Chain (mm) |
Fall | Travelling Speed (M/ Min) |
Trolley Motor (kW) |
Beam Flange (mm) |
CHBET-S-01 | 1 | 3m/M5 | 40% | 8.6 | 1.5 | 7.1 | 1 | 23 | 0.4 | 75-178 |
CHBET-V-01 | 26.6%/13.4% | 1.4-8.6 | ||||||||
CHBET-S-02 | 2 | 40% | 8.6 | 3.3 | 10 | 1 | 23 | 0.4 | 82-178 | |
CHBET-V-02 | 26.6%/13.4% | 1.4-8.6 | ||||||||
CHBET-S-03 | 3 | 40% | 6.7 | 3.3 | 10 | 1 | 23 | 0.4 | 100-178 | |
CHBET-V-03 | 26.6%/13.4% | 1.1-6.7 | ||||||||
CHBET-S-05 | 5 | 40% | 4.0 | 3.3 | 11.2 | 2 | 23 | 0.75 | 112-178 | |
CHBET-V-05 | 26.6%/13.4% | 0.66-4.0 |
Item Code (s) |
WLL (t) |
H Min | A | B | C | D | F | J | K | M | N |
CHBET-S-01 | 1 | 460 | 142 | 102 | 319 | 273 | 340 | 650 | 38 | 310 | 135 |
CHBET-V-01 | 349 | 336 | |||||||||
CHBET-S-02 | 2 | 650 | 185 | 59 | 319 | 273 | 340 | 650 | 45 | 312 | 135 |
CHBET-V-02 | 349 | 338 | |||||||||
CHBET-S-03 | 3 | 525 | 185 | 165 | 358 | 336 | 370 | 810 | 45 | 314 | 140 |
CHBET-V-03 | 471 | 340 | |||||||||
CHBET-S-05 | 5 | 860 | 240 | 110 | 358 | 336 | 410 | 850 | 61 | 360 | 142 |
CHBET-V-05 | 471 | 410 |
Note: Custom lengths are available on request. Contact Us for inquiries!
Application of hoist electric chain with trolley:
The hoist electric chain with trolley is suitable for a wide range of lifting tasks in industrial settings, including:
- Manufacturing facilities: Ideal for lifting heavy machinery and equipment with the added mobility of the trolley.
- Warehouses and distribution centers: Perfect for loading and unloading goods from storage areas or trucks with ease of movement.
- Construction sites: Essential for lifting materials and tools to different levels on construction projects with enhanced maneuverability.
- Workshops: Suitable for lifting and maneuvering workpieces or components in automotive and metalworking workshops with the flexibility of the trolley.
How to Use chain block and trolley:
- Ensure the relative humidity is below 85% and the ambient temperature is within the range of -25°C to 40°C before operation.
- Connect the hoist to a compatible power source according to the specified voltage and frequency requirements.
- Attach the load securely to the hoist using the top hook, ensuring it is properly positioned and balanced.
- Use the control panel to operate the hoist, raising or lowering the load as needed. The electronic limit load device prevents the chain from being over-tightened.
- Monitor the operation of the hoist, ensuring smooth and controlled lifting. The brake engages automatically once the motor stops, holding the load safely in place.
- After use, store the hoist in a safe and dry location, keeping the load chain in the chain container to protect it from dirt and debris.
Warnings!
- Ensure the hoist has a correct earth connection before applying it for operation.
- Before lifting a load, examine the load chain to check for any twists, kinks, or turnover of the bottom hook for multi-falls.
- Only use the hoist for loads within its specified capacity; avoid overloading.
- Make sure to lift the load vertically, as lifting diagonally or towing a load beyond 10 degrees is not allowed.
- While operating, never allow anyone to stand or work underneath the load.
- Do not use the load chain as slinging tackle to lift any load.
- Avoid applying any load to the tip of the hook for lifting.
- When lifting, do not operate the hoist with rapid up and down motions repeatedly.
- Do not run the hoist beyond the limit position.
- Never lift a load using two or more hoists simultaneously.
- Do not dismantle or adjust the limit load device yourself.
- Avoid measuring the load with the limit load device.
- Ensure proper lubrication of the load chain with suitable oil or grease before use, and perform periodic lubrication for normal operation.
- Always make sure the slings are properly placed in the hook throat, and the safety latch is securely closed when lifting.
Precautions for hoist electric chain with trolley:
When using the hoist electric chain with trolley in Saudi Arabia, always follow safety guidelines to ensure smooth and safe operations. Operate the hoist electric chain with trolley within specified conditions, and regularly inspect the equipment to prevent accidents and maintain optimal performance.
- Ensure the chain block and trolley operates within its specified weight capacity to avoid overload.
- Always check the load chain for any twists, kinks, or damage before use.
- Ensure the hoist is properly grounded before operation.
- Never lift a load with the hook tip and avoid using the load chain as slinging tackle.
- Do not operate the hoist for rapid up and down motions; lift slowly and steadily.
- Never exceed the recommended lifting angle, keeping it within 10 degrees.
- Always use the safety latch on the hook and ensure the slings are correctly placed in the hook throat.
- Avoid standing or working underneath the load while operating the hoist.
- Regularly lubricate the load chain with suitable oil or grease to ensure smooth operation.
- Do not dismantle or adjust the limit load device on your own.
Order today ELECTRIC CHAIN HOIST BLOCK WITH TROLLEY and get swift delivery in Saudi Arabia.
