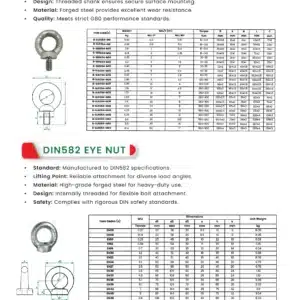

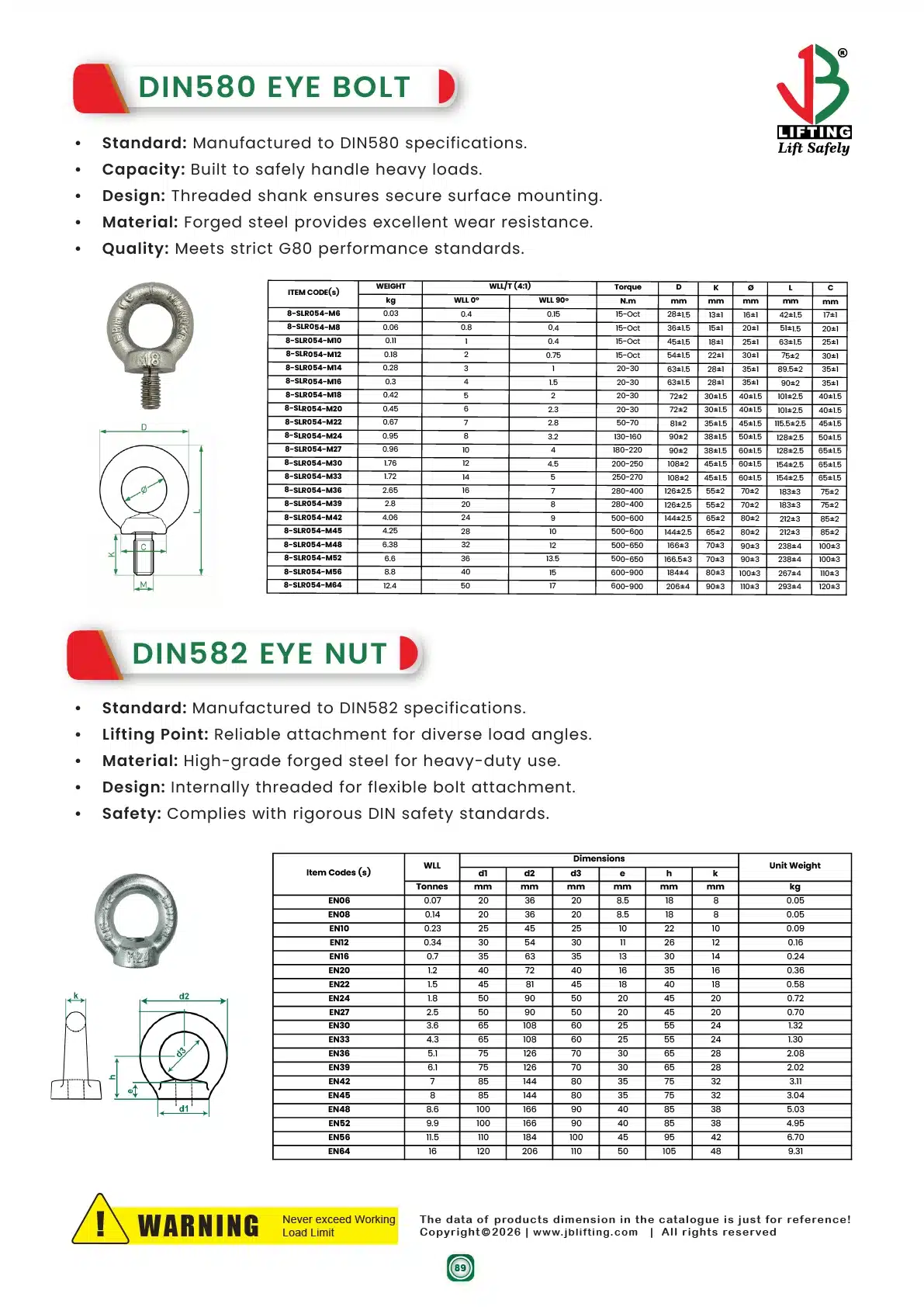

582 Galvanized Eye Bolt
• Design: Eye nuts with a loop for attaching lifting equipment.
• Standards: Conforms to DIN 582 for reliability and safety.
• Load Capacity: Available in various capacities for different lifting needs.
• Thread Size: Different sizes for compatibility with various configurations.
• Material: Made from stainless steel, carbon steel, or alloy steel.
• Installation: Securely tighten into threaded hole or use a nut for fastening.
• Maintenance: Regular inspection for wear, deformation, or corrosion.
• Safety: Follow precautions to prevent accidents and injuries.
582 lifting eye bolt
Item Codes (s) | WLL | Dimensions | Dimensions | Dimensions | Dimensions | Dimensions | Dimensions | Unit Weight |
d1 | d2 | d3 | e | h | k | |||
Tonnes | mm | mm | mm | mm | mm | mm | kg | |
EN06 | 0.07 | 20 | 36 | 20 | 8.5 | 18 | 8 | 0.05 |
EN08 | 0.14 | 20 | 36 | 20 | 8.5 | 18 | 8 | 0.05 |
EN10 | 0.23 | 25 | 45 | 25 | 10 | 22 | 10 | 0.09 |
EN12 | 0.34 | 30 | 54 | 30 | 11 | 26 | 12 | 0.16 |
EN16 | 0.7 | 35 | 63 | 35 | 13 | 30 | 14 | 0.24 |
EN20 | 1.2 | 40 | 72 | 40 | 16 | 35 | 16 | 0.36 |
EN22 | 1.5 | 45 | 81 | 45 | 18 | 40 | 18 | 0.58 |
EN24 | 1.8 | 50 | 90 | 50 | 20 | 45 | 20 | 0.72 |
EN27 | 2.5 | 50 | 90 | 50 | 20 | 45 | 20 | 0.70 |
EN30 | 3.6 | 65 | 108 | 60 | 25 | 55 | 24 | 1.32 |
EN33 | 4.3 | 65 | 108 | 60 | 25 | 55 | 24 | 1.30 |
EN36 | 5.1 | 75 | 126 | 70 | 30 | 65 | 28 | 2.08 |
EN39 | 6.1 | 75 | 126 | 70 | 30 | 65 | 28 | 2.02 |
EN42 | 7 | 85 | 144 | 80 | 35 | 75 | 32 | 3.11 |
EN45 | 8 | 85 | 144 | 80 | 35 | 75 | 32 | 3.04 |
EN48 | 8.6 | 100 | 166 | 90 | 40 | 85 | 38 | 5.03 |
EN52 | 9.9 | 100 | 166 | 90 | 40 | 85 | 38 | 4.95 |
EN56 | 11.5 | 110 | 184 | 100 | 45 | 95 | 42 | 6.70 |
EN64 | 16 | 120 | 206 | 110 | 50 | 105 | 48 | 9.31 |
