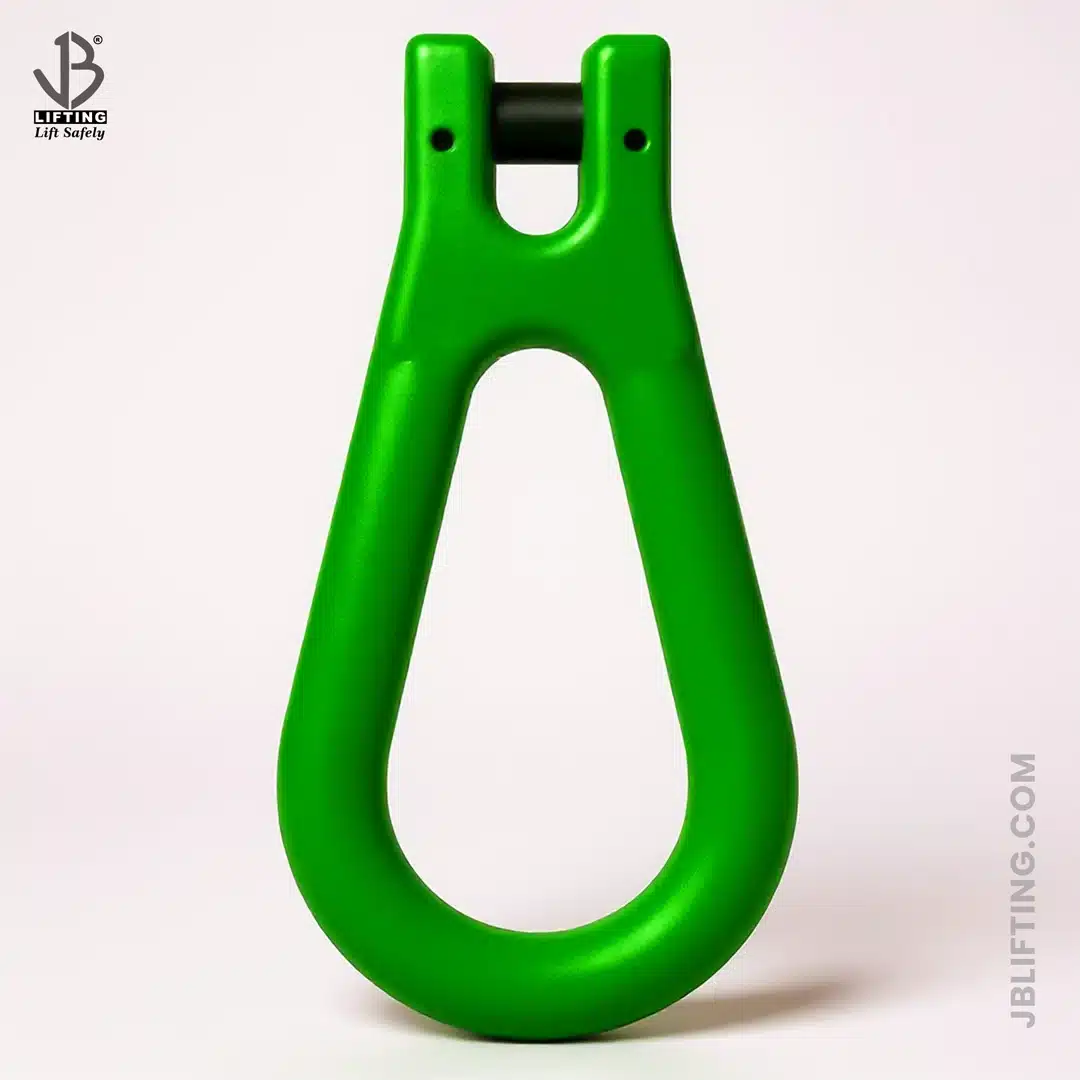

Alloy Steel Clevis Lug Link
Features
- Ultimate load is 4 times the Working Load Limit.
- It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
- It can be matched with sling and G80 chains which can meet the standard EN818-2;
- Each workpiece should pass testing at 2.5 times of working load limit;
- We should carry out sampling and 20000 times of fatigue testing;
- We should carry out strict sampling and breakage testing for each batch of products;
- We should carry out 100% magnetic powder flaw detection;
- 100% of the pin should be tested to ensure that they have the same hardness;
- Surface treatment: plastics spraying.

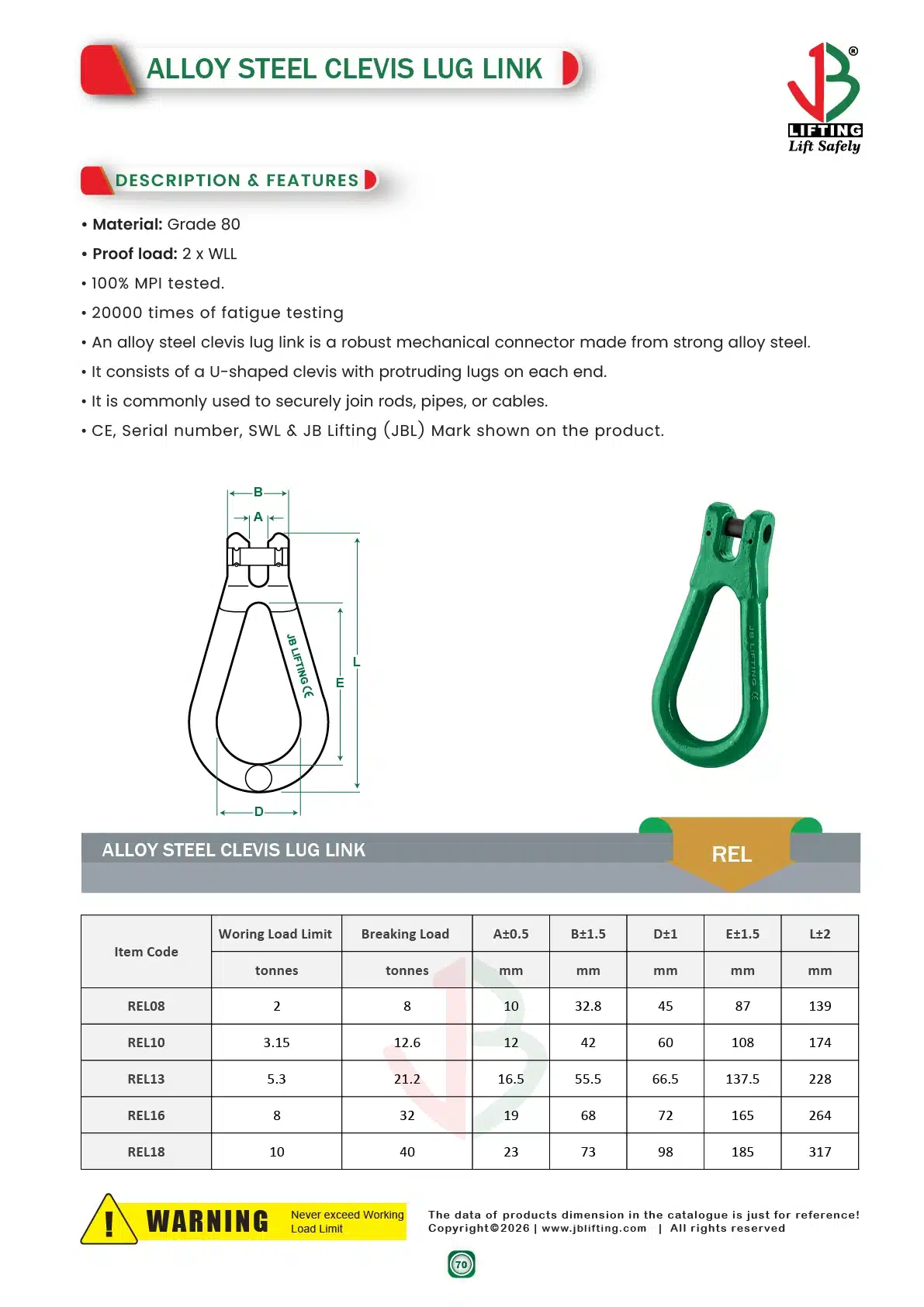

Specifications:
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±0.5 | B±1.5 | D±1 | E±1.5 | L±2 |
REL08 | 0.53 | 2 | 8 | 10 | 32.8 | 45 | 87 | 139 |
REL10 | 0.74 | 3.15 | 12.6 | 12 | 42 | 60 | 108 | 174 |
REL13 | 1.76 | 5.3 | 21.2 | 16.5 | 55.5 | 66.5 | 137.5 | 228 |
REL16 | 2.8 | 8 | 32 | 19 | 68 | 72 | 165 | 264 |
REL18 | 3.5 | 10 | 40 | 23 | 73 | 98 | 185 | 317 |
