ر.س 20.00 – ر.س 1,275.00 EX.VAT
Brand:
Our G80 Chain Connector is a robust coupling device used in rigging and lifting applications, designed to link Grade 80 (G80) alloy steel chains securely. These connectors are vital in industrial and construction environments, facilitating tasks like lifting, towing, and load securing. Recognized for their strength and durability, they ensure dependable connections between chain segments or anchor points. Our G80 chain connectors often incorporate safety features, such as latches or locking mechanisms, preventing accidental disconnection and enhancing material handling operations’ overall safety and efficiency. They are instrumental in maintaining the integrity and reliability of chain-based rigging systems.
Please select Size
Ask An Expert

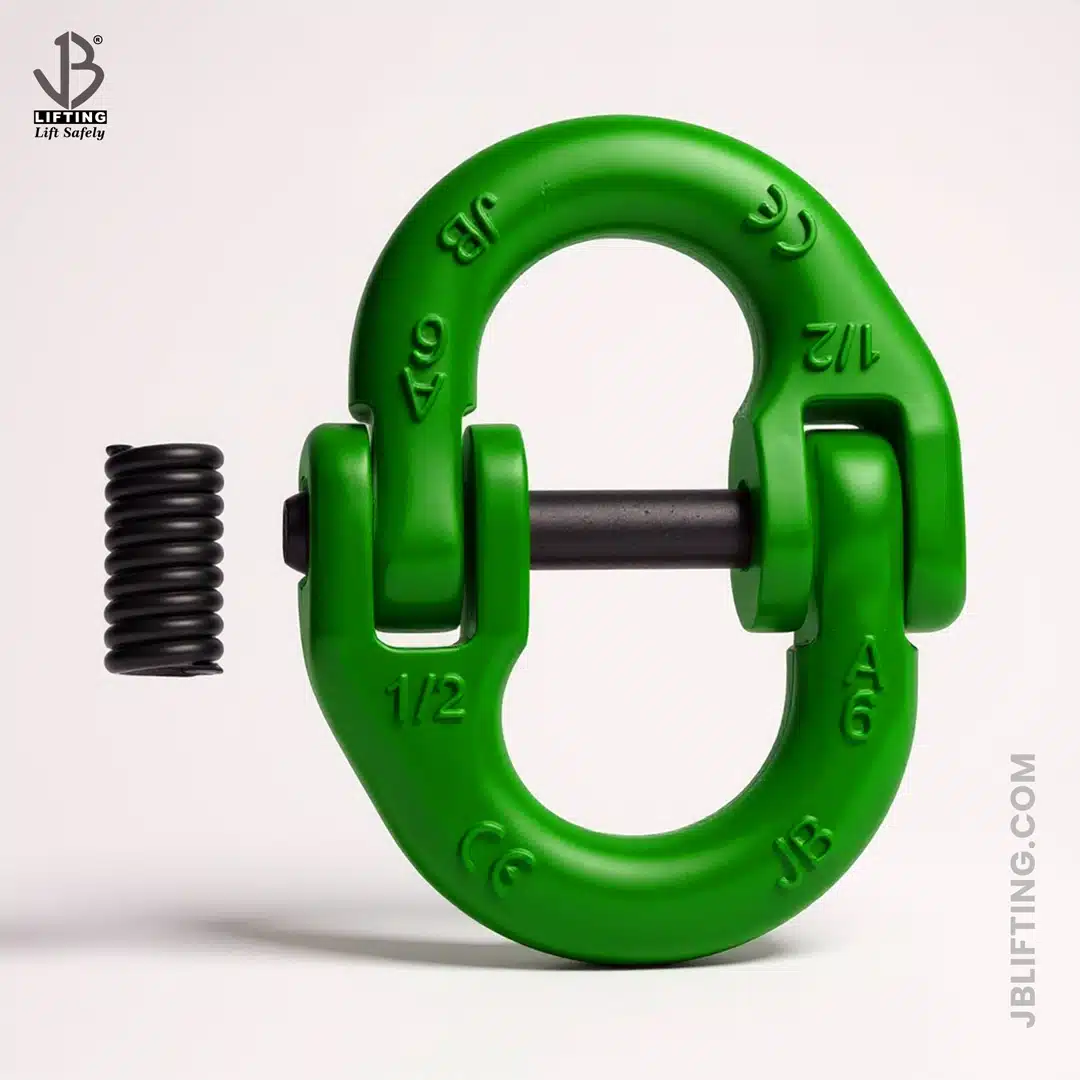

G80 CHAIN CONNECTOR
Key Features:
- Designed for use with Grade 80 alloy chain
- Use to connect alloy chain to accessories for lifting application
- Material: high tensile forged alloy steel
- Construction: quenched and tempered
- Finishing: powder-coated
- Safety factory: 4:1
- Proof Load: Tested at 2.5 ties of the WLL
- Fatigue rated: Tested at 1.5 times the WLL
- According to standard: EN1677-3
- Traceability code, capacity, and WLL embossed.
Specifications:
| ItemCode(s) | Capacity WLL | Chain Size | Dimension | Weight | |||
| K | A | D | B | ||||
| (Ton) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/pc) | |
| CEK01T-336 | 1.12 | 6 | 42 | 15 | 7 | 17 | 0.1 |
| CEK02T-336 | 2.0 | 7,8 | 62.5 | 18 | 8.5 | 22 | 0.2 |
| CEK03T-336 | 3.15 | 10 | 58 | 25 | 11 | 26 | 0.3 |
| CEK05T-336 | 5.3 | 13 | 87 | 30 | 15 | 35 | 0.7 |
| CEK08T-336 | 8.0 | 16 | 108.5 | 36 | 19 | 38 | 1.1 |
| CEK12T-336 | 12.5 | 18,20 | 122 | 42 | 23 | 46 | 1.7 |
| CEK15T-336 | 15.0 | 22 | 141.5 | 49 | 26 | 60 | 3.0 |
| CEK21T-336 | 21.2 | 26 | 158 | 55 | 30 | 62 | 4.6 |
| CEK31T-336 | 31.5 | 32 | 205 | 69 | 37 | 79 | 8.6 |
| Weight | N/A |
|---|---|
| Size (Tonne) | 1.12T, 2T, 3.15T, 5.30T, 8T, 12.5T, 15T, 21.2T, 31.5T |
