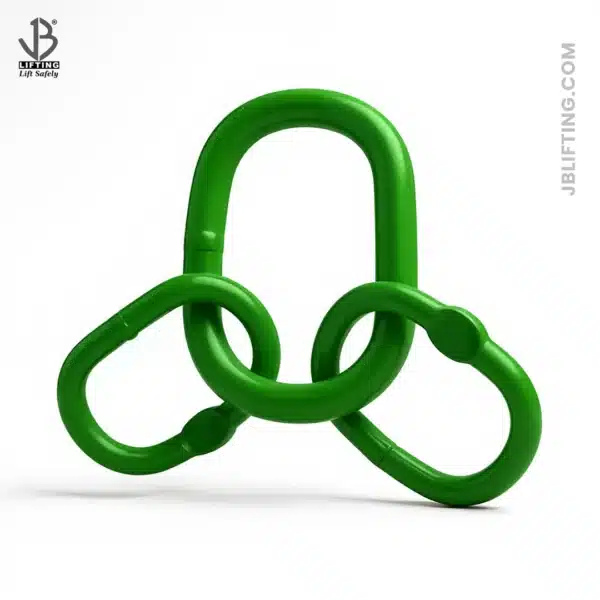

Our Welded Master Link Assembly is a robust and load-bearing component used in lifting and rigging applications. It typically consists of a welded steel master link with a central connection point for attaching chains, hooks, or other rigging equipment. Our Master link assemblies are designed for heavy-duty lifting and load-bearing tasks, ensuring secure and reliable connections in various industrial and construction settings. They play a central role in assembling chain slings and lifting equipment, meeting stringent safety and performance standards to ensure the safe and efficient handling of heavy loads. These assemblies often include components like connecting links and hooks to create complete and versatile rigging solutions.
Please select Size
G80 Welded Master Link Assembly
Key Features:
- master link assembly​ is designed for coupling with Grade 80 alloy chain or wire rope for overhead lifting operations.
- Versatile assembly for multipurpose applications.
- Material: G80 alloy steel(quenched and tempered)
- Proof load: 2.5 times of WLL.
- Safety factory: 4:1.
- Fatigue rated 1.5 times of WLL at 20,000 cycles.
- Finish: Colour painted
- According to standard: EN1677-4
- Traceability code, capacity and WLL embossed.

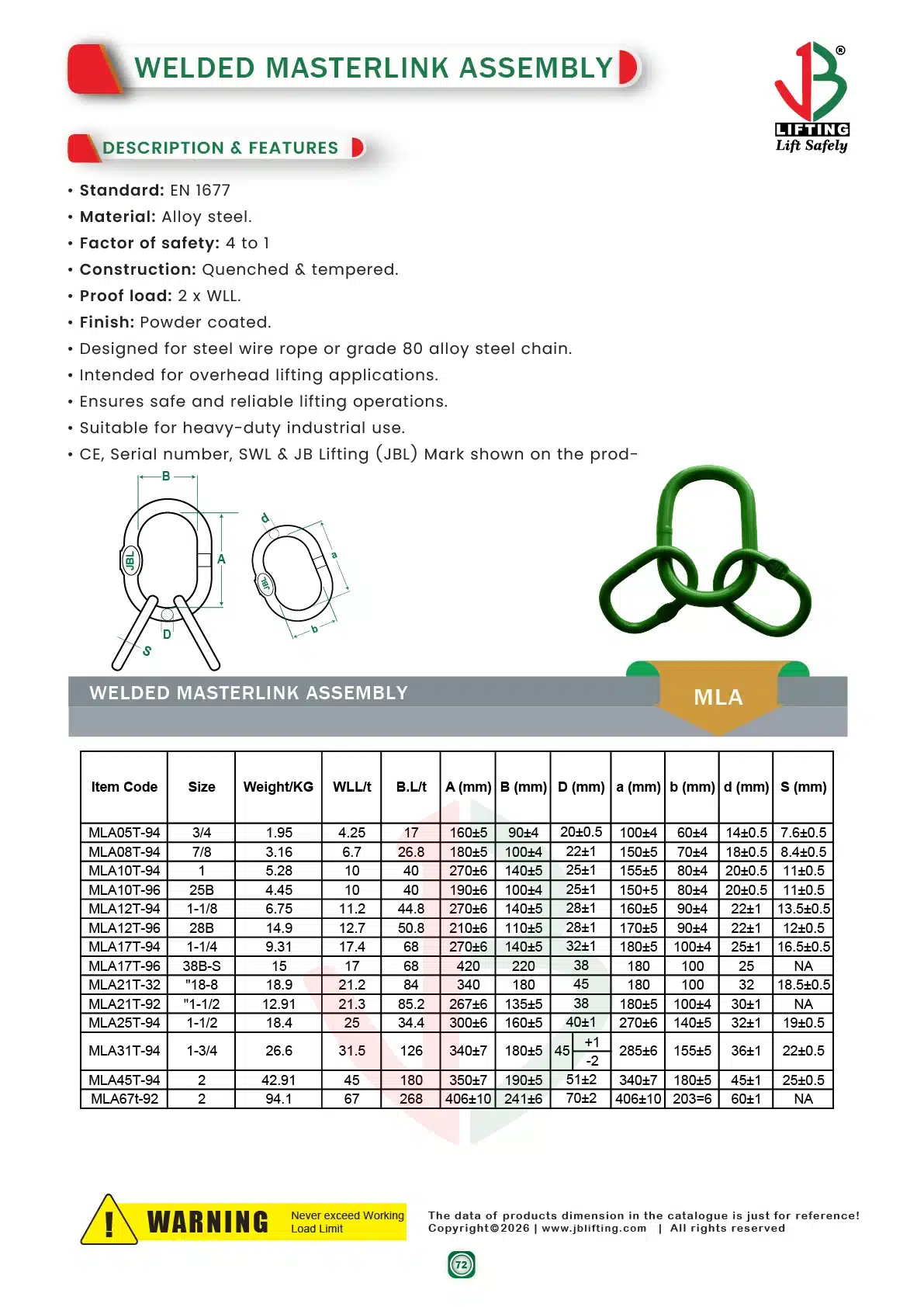

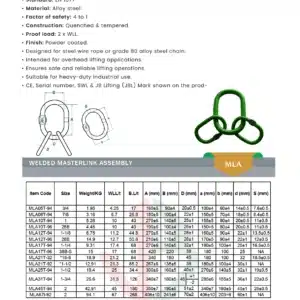

Specifications:
| Item Code | Size | Weight/KG | WLL/t | B.L/t | A (mm) | B (mm) | D (mm) | a (mm) | b (mm) | d (mm) | S (mm) | |
| MLA05T-94 | 3/4 | 1.95 | 4.25 | 17 | 160±5 | 90±4 | 20±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 | |
| MLA08T-94 | 7/8 | 3.16 | 6.7 | 26.8 | 180±5 | 100±4 | 22±1 | 150±5 | 70±4 | 18±0.5 | 8.4±0.5 | |
| MLA10T-94 | 1 | 5.28 | 10 | 40 | 270±6 | 140±5 | 25±1 | 155±5 | 80±4 | 20±0.5 | 11±0.5 | |
| MLA10T-96 | 25B | 4.45 | 10 | 40 | 190±6 | 100±4 | 25±1 | 150+5 | 80±4 | 20±0.5 | 11±0.5 | |
| MLA12T-94 | 1-1/8 | 6.75 | 11.2 | 44.8 | 270±6 | 140±5 | 28±1 | 160±5 | 90±4 | 22±1 | 13.5±0.5 | |
| MLA12T-96 | 28B | 14.9 | 12.7 | 50.8 | 210±6 | 110±5 | 28±1 | 170±5 | 90±4 | 22±1 | 12±0.5 | |
| MLA17T-94 | 1-1/4 | 9.31 | 17.4 | 68 | 270±6 | 140±5 | 32±1 | 180±5 | 100±4 | 25±1 | 16.5±0.5 | |
| MLA17T-96 | 38B-S | 15 | 17 | 68 | 420 | 220 | 38 | 180 | 100 | 25 | NA | |
| MLA21T-32 | “18-8 | 18.9 | 21.2 | 84 | 340 | 180 | 45 | 180 | 100 | 32 | 18.5±0.5 | |
| MLA21T-92 | “1-1/2 | 12.91 | 21.3 | 85.2 | 267±6 | 135±5 | 38 | 180±5 | 100±4 | 30±1 | NA | |
| MLA25T-94 | 1-1/2 | 18.4 | 25 | 34.4 | 300±6 | 160±5 | 40±1 | 270±6 | 140±5 | 32±1 | 19±0.5 | |
| MLA31T-94 | 1-3/4 | 26.6 | 31.5 | 126 | 340±7 | 180±5 | 45 | +1 | 285±6 | 155±5 | 36±1 | 22±0.5 |
| -2 | ||||||||||||
| MLA45T-94 | 2 | 42.91 | 45 | 180 | 350±7 | 190±5 | 51±2 | 340±7 | 180±5 | 45±1 | 25±0.5 | |
| MLA67t-92 | 2 | 94.1 | 67 | 268 | 406±10 | 241±6 | 70±2 | 406±10 | 203=6 | 60±1 | NA | |
| Weight | N/A |
|---|---|
| Size (Tonne) | 4.25T, 6.7T, 8.2T, 10.7T, 11.8T, 17.1T, 28.1T, 39.3T, 45T, 65.3T, 84.4T |
