D-Shaped Forged Chain Shackle With Bolt Pin

Dee Shaped Forged Chain Shackle With Bolt Pin

Introducing our d shackle bolt pin, a high-performance bolt pin chain shackle designed for secure, efficient, and safe overhead lifting. Engineered with forged carbon steel and alloy pins, this heavy duty bolt pin shackle is built to deliver exceptional strength and reliability. Whether you’re working in construction, manufacturing, or logistics, this lifting bolt pin shackle ensures dependable operation every time. With its robust build and corrosion-resistant finish, it’s the ideal chain shackle for bolt pin applications demanding safety and durability.

⭐ Key Features:

Engineered for professionals, this dee shackle delivers exceptional strength, unmatched safety, and lasting performance. Thanks to its precise forging and high-quality protective coatings, it stands out as a premium choice for heavy-duty lifting applications.

1. Premium Forged Construction:
   We forge each shackle from carbon steel, then quench and temper it to achieve maximum strength. As a result, it meets Grade 6 high-tensile performance standards, ensuring durability in demanding conditions.
2. Certified Safety:
   To guarantee compliance, we stamp each unit with its size, Working Load Limit (W.L.L.), and other identification marks. Moreover, the shackle meets EN 13889 standards and is proof load tested to twice the W.L.L., with a minimum breaking load of six times the W.L.L.
3. Corrosion-Resistant Finish:
   For enhanced protection, we hot-dip galvanize the body and powder-coat the bolt pin. Consequently, the shackle resists corrosion effectively, even in harsh environments, and maintains its integrity over time.
4. Crack Detection Assurance:
   During production, we subject every dee shackle to 100% magnaflux crack detection. This process ensures structural integrity and safe operation in critical lifting tasks.
5. Versatile Fit for Industry:
   Whether you work in construction, marine, or industrial settings, this shackle adapts effortlessly to your needs. Therefore, it provides a reliable solution across a wide range of heavy-duty bolt pin shackle applications.

⚙️ Specifications of Chain Shackle for Botl Pin:

Designed to meet demanding lifting needs, our d shackle bolt pin is offered in various sizes and load capacities to suit diverse rigging applications.

📏 Line Diagram or Dimensions of Dee Shackle​:

To ensure proper selection, visit SafeAndSecureKSA and explore our comprehensive dimensional drawings and fitting diagrams for the bolt pin chain shackle.

Additionally, you can find precise D shackle bolt pin dimensions on our website. We proudly offer reliable lifting solutions with detailed specifications tailored to meet your industrial requirements.

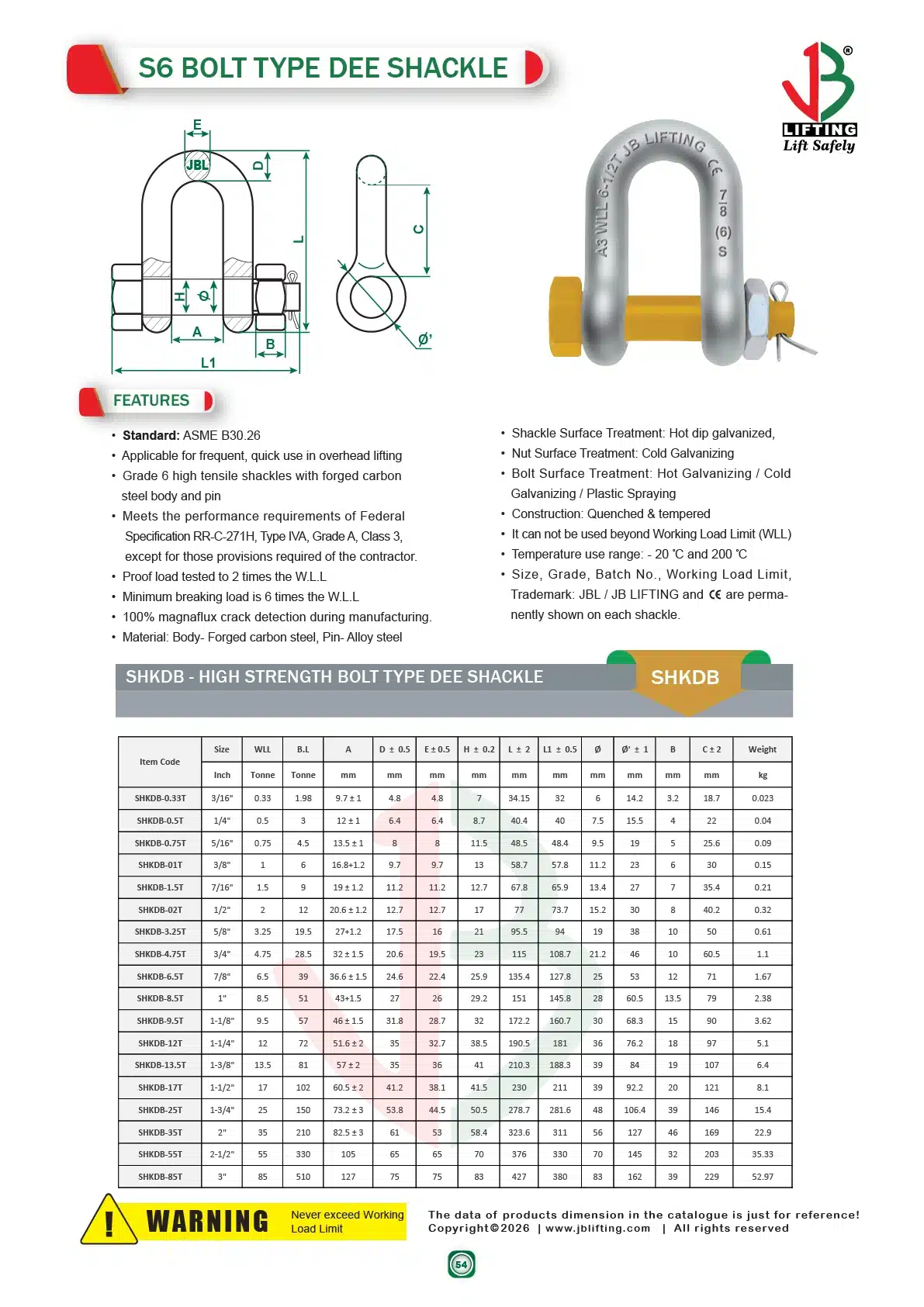

📊 Data Table of bolt pin chain shackle​ :

Each size is carefully dimensioned and rated for safe usage. Refer to the table below for exact specifications:

Parameters (Unit: mm)

📝 Note:  Need a custom length? Your Solution is Just a Message Away.

📦 Application:

This heavy duty bolt pin shackle is specifically engineered for frequent use in high-load lifting scenarios, where both strength and precision are essential. As a result, it serves reliably across construction sites, industrial factories, shipyards, and transportation hubs. Moreover, its robust design and verified safety certifications make it a trusted solution for secure overhead lifting operations.

🛠️ How to Use:

1. Determine Working Load Limit: Refer to the markings on the shackle to identify its size and working load limit (W.L.L) before use. Ensure that the load to be lifted does not exceed the specified W.L.L.
2. Proper Installation: Attach the shackle securely to the lifting equipment using the bolt pin provided. Ensure that the pin is properly seated and tightened to prevent slippage or disengagement during lifting operations.
3. Safety Precautions: Always inspect the shackle for signs of wear, damage, or deformation before each use. Do not use the shackle beyond its working load limit, as this can compromise safety and lead to equipment failure.
4. Lifting Operations: First, position the shackle correctly for the intended lifting operation, making sure the load remains balanced and firmly secured. Then, apply proper rigging techniques and operate suitable lifting equipment to safely raise and move the load with full control.
5. Post-Use Inspection: After completing the lift, immediately inspect the dee shackle for any signs of wear, damage, or deformation. Next, clean it thoroughly and store it in a dry, well-ventilated space. This practice helps prevent corrosion and significantly extends the shackle’s operational lifespan.

⚠️ Precautions:

To maintain maximum safety and preserve equipment integrity, please follow these important guidelines:

1. Avoid Overloading:
   To ensure safe operation, always follow the specified Working Load Limit. Exceeding this limit will quickly compromise the structural integrity of the heavy duty bolt pin shackle, and as a result, it can lead to sudden equipment failure.
2. Inspect Regularly:
   Before every use, take the time to carefully inspect the dee shackle for any signs of cracks, corrosion, or deformation. By performing this routine check consistently, you significantly reduce the risk of accidents and effectively extend the shackle’s service life.
3. Use Correct Fitment:
   Ensure that the bolt pin fits snugly and aligns properly with the body. Loose or mismatched pins may result in slippage or sudden failure during lifting operations.
4. Avoid Shock Loads:
   Never expose the shackle to sudden jerks or impacts. Such shock loading can significantly weaken the lifting bolt pin shackle, reducing its effectiveness over time.
5. Store Properly:
   After use, clean and store the shackle in a dry, well-ventilated area. Proper storage not only prevents rust but also helps maintain the strength and safety of the dee shackle.

❓ Frequently Asked Questions:

Here are answers to common queries about lifting chain shackles with screw pins to help users get the most from their lifting devices:

1. What is the difference between a dee shackle and a bow shackle?
   A d shackle bolt pin has a narrow profile suited for straight-line pulls, while a bow shackle accommodates multi-directional loading.
2. Is this shackle suitable for marine environments?
   Yes, indeed. Thanks to its hot-dip galvanized body and powder-coated pin, the shackle offers excellent corrosion resistance. As a result, it is well-suited for harsh marine conditions where exposure to saltwater is common.
3. How do I identify the correct size of a bolt pin chain shackle?
   To ensure proper selection, simply refer to the markings on the shackle body, which indicate its size and Working Load Limit (W.L.L). Additionally, you can consult our detailed specification table to match your specific lifting requirements accurately.
4. Can I use this chain shackle for bolt pin lifting on cranes?
   Absolutely. These shackles are fully certified for overhead lifting applications. Moreover, they comply with EN 13889 standards, making them an excellent choice for use with cranes and other heavy lifting machinery.
5. How often should I inspect the shackle?
   Ideally, you should inspect your lifting bolt pin shackle before each use. Furthermore, after completing any demanding operation, it’s crucial to recheck the shackle for signs of wear, corrosion, or deformation to ensure ongoing safety.

Still have questions or need a custom solution? Contact our team today — we’re ready to help.
