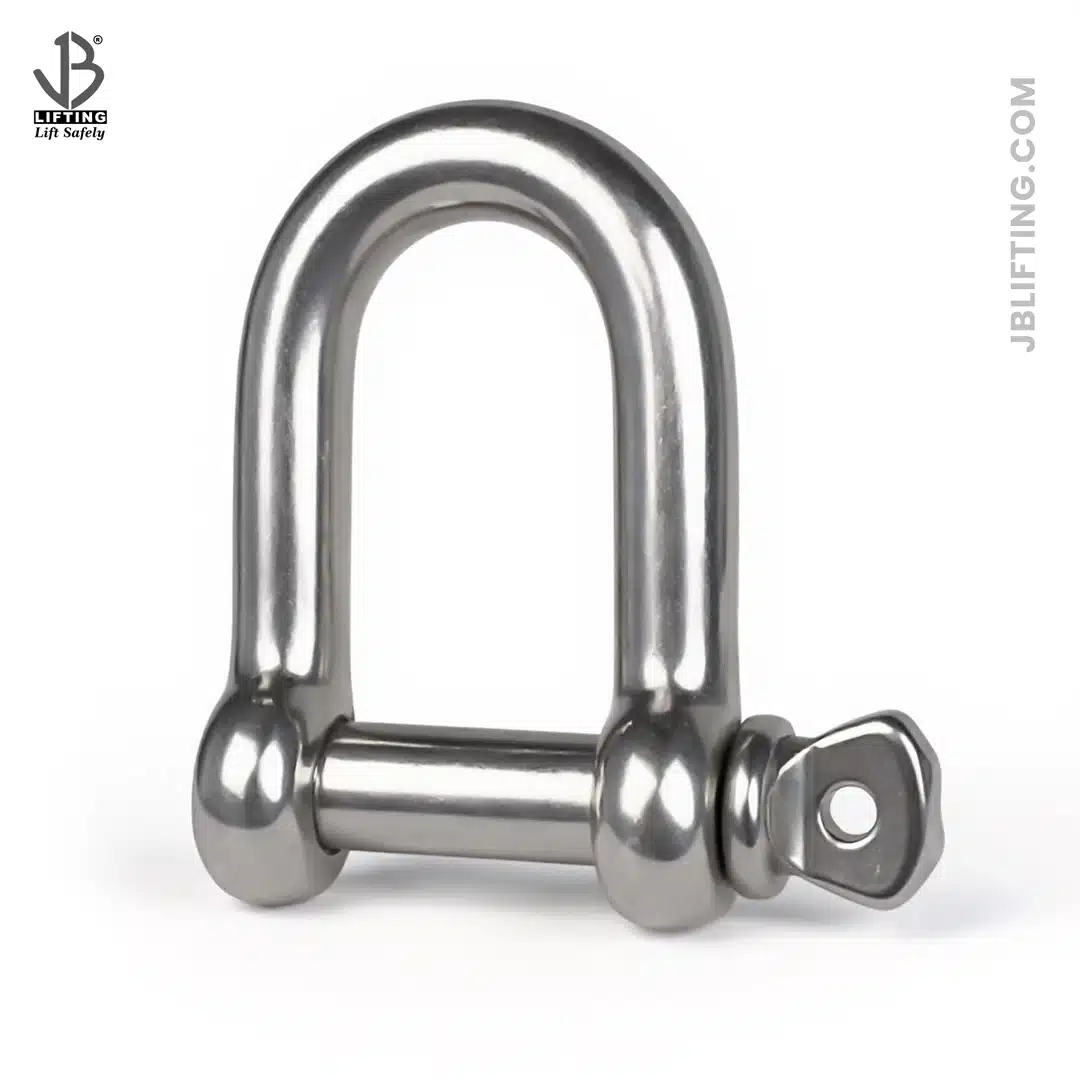

Stainless Steel D-Type Shackle Screw Pin
Introducing the Dee Type Shackle Screw Pin, crafted from corrosion-resistant 316 stainless steel for outstanding strength and performance in the most demanding conditions. Whether you are working in marine environments, construction zones, or transportation sectors, this shackle ensures secure, reliable rigging. Engineered to meet RR-C-271D standards, the stainless steel screw pin d shackles offer unmatched durability and versatility for various lifting applications.
⭐ Key Features:
Our d shackle screw pin type is engineered with both safety and usability in mind. Designed for tough jobs and harsh conditions, these shackles deliver dependable performance over time. The high-quality build, combined with the practical screw pin design, makes it an essential lifting tool.
- High-Quality Stainless Steel Construction: Manufactured using premium 316 stainless steel, this stainless steel screw pin shackle provides exceptional resistance to rust, corrosion, and wear.
- Secure Screw Pin Mechanism: The robust screw pin allows quick connection and disconnection, enhancing both convenience and safety during operations.
- Multipurpose Use: Ideal for marine, construction, agriculture, and transport, this screw pin shackle delivers adaptable performance across industries.
- Dee Type Design for Stable Load Handling: The Dee (D) shape ensures better load distribution and minimizes side load risks, enhancing safety during lifting.
- Compliance with Federal Specifications: Fully compliant with Fed. Spec RR-C-271D, Type IV B, Class 2 standards, ensuring quality and reliability.
⚙️ Specifications of Product:
Designed with precise dimensions and tested to deliver optimal load-bearing capacity, our stainless steel screw pin d shackles ensure safe and efficient lifting.
📐 Line Diagram or Dimensions Screw Pin D Shackle :
Refer to our dimension chart to match the exact size required for your lifting operation. Detailed specs help you select the most suitable shackle based on your load requirements.
📊 Data Table of Screw Pin D Shackle:
Each d shackle screw pin type is available in multiple sizes and working load limits to suit your specific lifting needs.
| Item Code(s) | WLL | Dimension | Weight | ||||
| D | d | a | c | b | |||
| (KG) | mm | mm | mm | mm | mm | (KG) | |
| SSSD05 | 80 | 5 | 5 | 10 | 19 | 11 | 0.019 |
| SSSD06 | 100 | 6 | 6 | 13 | 25 | 14 | 0.034 |
| SSSD08 | 200 | 8 | 8 | 16 | 32 | 18 | 0.07 |
| SSSD10 | 320 | 10 | 10 | 19 | 38 | 20 | 0.13 |
| SSSD12 | 520 | 12 | 12 | 25 | 51 | 26 | 0.24 |
| SSSD16 | 800 | 16 | 16 | 32 | 64 | 33 | 0.5 |
| SSSD20 | 1100 | 20 | 20 | 38 | 76 | 40 | 0.8 |
| SSSD22 | 1500 | 22 | 22 | 44 | 89 | 50 | 1.3 |
| SSSD25 | 2100 | 25 | 25 | 51 | 100 | 57 | 2 |
| SSSD28 | 3000 | 28 | 28 | 57 | 115 | 68 | 3 |
| SSSD32 | 3500 | 32 | 32 | 64 | 127 | 73 | 4.3 |
| SSSD38 | 5000 | 38 | 38 | 76 | 152 | 85 | 6.75 |
| SSSD45 | 7000 | 45 | 45 | 90 | 180 | 96 | 12.5 |
| SSSD50 | 8000 | 50 | 50 | 102 | 200 | 108 | 17.5 |
📝 Note: Need a custom length? Your Solution is Just a Message Away.
📦 Application:
Our Dee Type Shackle Screw Pin performs reliably across various industries thanks to its superior strength and consistent load-handling capability. Its practical design ensures safe and stable performance under a wide range of conditions.
- Marine & Offshore: Specifically designed for tough marine environments, this shackle excels in mooring, towing, and lifting operations on ships, docks, and offshore rigs.
- Construction: In construction settings, professionals use this shackle to securely lift heavy materials, machinery, and structural beams, improving operational efficiency.
- Agriculture: Farmers and agricultural workers rely on it to rig and lift heavy farm equipment, such as irrigation systems and machinery, with ease and safety.
- Transportation: To ensure safe transport, logistics teams use the shackle to anchor and secure cargo during hauling and transit operations.
- Industrial Maintenance: Maintenance crews frequently deploy this shackle for routine lifting and rigging tasks, ensuring safe and smooth equipment handling in industrial facilities.
How to Use:
- Determine Working Load Limit: Before use, check the markings on the shackle to identify its size and working load limit (W.L.L). Ensure that the load to be lifted does not exceed the specified W.L.L.
- Proper Installation: Securely attach the shackle to the lifting equipment or load using the screw pin provided. Ensure that the pin is properly threaded and tightened to prevent slippage or disengagement during lifting operations.
- Safety Precautions: Inspect the shackle for signs of wear, damage, or deformation before each use. Do not use the shackle beyond its working load limit, as this can compromise safety and lead to equipment failure.
- Lifting Operations: Position the shackle appropriately for the lifting operation, ensuring that the load is balanced and securely attached. Use appropriate rigging techniques and lifting equipment to safely lift and transport the load.
- Post-Use Inspection: After use, inspect the shackle for any signs of damage or deformation. Clean and store the shackle properly in a dry, well-ventilated area to prevent corrosion and ensure longevity.
⚠️ Precautions:
Stay safe by following these important precautions:
- Inspect Before Use: First and foremost, check for cracks, wear, or deformation before each operation to ensure the shackle is in proper working condition.
- Do Not Exceed WLL: Importantly, never exceed the Working Load Limit, as overloading the screw pin shackle may lead to equipment failure and safety hazards.
- Avoid Side Loading: To prevent structural damage, always maintain straight loading. Side loads can cause bending or distortion, compromising performance
- Tighten the Screw Pin Fully: Before starting any lift, make sure the screw pin is properly threaded and fully tightened to prevent accidental disengagement.
- Store in Dry Areas: Lastly, to avoid corrosion and extend the shackle’s service life, store it in a dry, well-ventilated area after each use.
❓ Frequently Asked Questions:
- What material is the Dee Type Shackle made of?
To begin with, it’s constructed from marine-grade 316 stainless steel, which offers superior corrosion resistance and long-term durability. - Can I use this shackle for marine applications?
Yes, absolutely. In fact, these stainless steel screw pin shackles are specifically designed to perform exceptionally well in saltwater and offshore environments. - How do I know what size shackle I need?
To determine the correct size, simply refer to the dimension and Working Load Limit (WLL) chart provided above. This will help ensure safe and efficient load handling. - Is the screw pin removable?
Certainly. The d shackle screw pin type includes a removable screw pin, which allows for quick and secure attachment or detachment as needed. - Does it comply with industry standards?
Yes, without a doubt. This shackle fully complies with Fed. Spec RR-C-271D, Type IV B, Class 2 standards, ensuring its reliability and safety in industrial lifting applications.
Still have questions or need a custom solution? Contact our team today — we’re ready to help.
Using a heavy-duty lifting shackle comes with certain precautions and safety measures to ensure the safety of personnel and the success of lifting operations. Here are some precautions to consider when using a heavy-duty lifting shackle:
- Inspection: Regularly inspect the shackle for any signs of wear, damage, or deformities. Do not use a shackle that appears to be in poor condition.
- Proper Sizing: Ensure that the shackle's load capacity and dimensions are suitable for the intended application. Always check the manufacturer's specifications and guidelines.
- Load Limits: Never exceed the shackle's safe working load (SWL) or rated capacity. This information is usually marked on the shackle or provided by the manufacturer.
- Quality Assurance: Use only high-quality shackles that meet relevant industry standards and certifications,Please explore our Shackles.
- Shackle Material: Select the appropriate shackle material based on the specific environment and application (e.g., stainless steel for corrosive environments).
- Lifting Angles: Be aware of the angle at which the load is being lifted. When using a shackle at an angle other than 0 degrees, the load capacity is reduced. Refer to load angle charts or consult a qualified engineer to determine the correct SWL for the angle.
- Inspection Points: When choosing a shackle, consider whether it has inspection points, such as a hole to insert a pin for visual inspection. This can help in monitoring the condition of the shackle.
- Load Balance: Ensure that the load is evenly distributed between the two attachment points on the shackle. Imbalanced loads can cause stress concentrations and lead to failure.
- Proper Connection: Ensure that the shackle is properly connected and secured to both the crane hook and the load being lifted. Verify that pins and bolts are correctly fastened.
- Avoid Side Loading: Shackles are designed to withstand loads applied in line with their pins. Avoid applying lateral or side loads, which can weaken the shackle.
- Shock Loads: Be cautious of shock loads, as they can exceed the shackle's rated capacity. Use shock-absorbing devices or factor in additional safety margins when necessary.
- Training: Only qualified and trained personnel should operate cranes and handle lifting equipment. Ensure that all personnel involved in the lifting operation are well-trained in safety procedures.
- Use Safety Devices: Implement safety devices such as safety pins, cotter pins, or locking mechanisms to prevent accidental release of the load.
- Clear the Area: Ensure that the area below the load is clear of personnel and obstacles before lifting. Create a designated work zone.
- Communication: Maintain clear and effective communication between the crane operator, riggers, and signal persons to coordinate safe lifting operations.
- Emergency Procedures: Establish emergency procedures and know how to respond in case of accidents, malfunctions, or equipment failure.
- Records and Documentation: Keep records of inspections, maintenance, and usage of shackles, and document any concerns or issues for future reference.
| Size (mm) | 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm |
|---|
