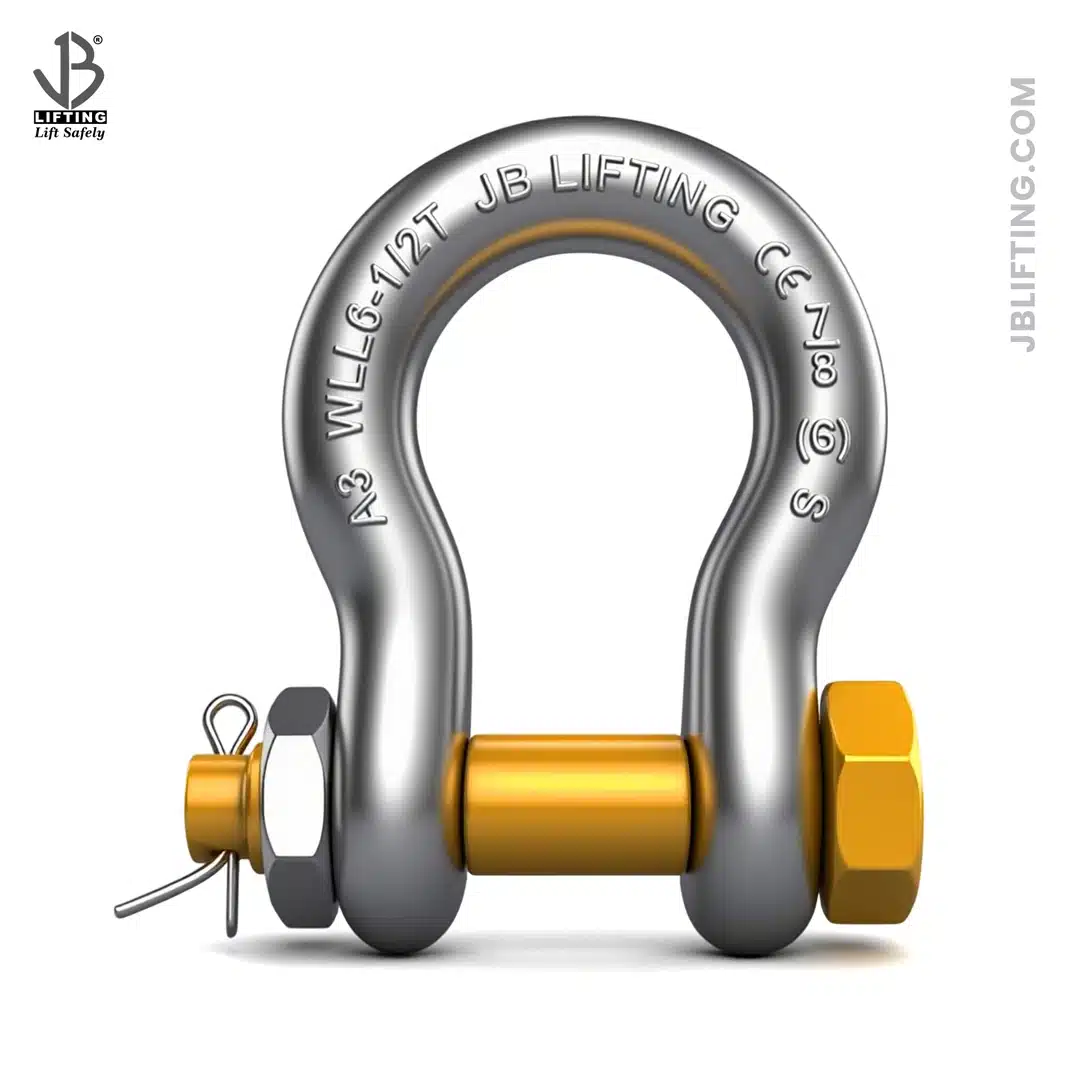

ANCHOR-BOW-OMEGA SHAPED FORGED SHACKLE WITH BOLT PIN
Introducing our Anchor-Bow-Omega Shaped Forged Shackle with Bolt Pin, meticulously engineered to meet the highest standards of safety and reliability in overhead lifting applications. Crafted from forged carbon steel and quenched and tempered with alloy pins, this shackle ensures exceptional durability and performance in demanding environments.
Key Features:
- Premium Construction: Shackles are forged from carbon steel and quenched and tempered with alloy pins, ensuring high tensile strength and durability for reliable performance in overhead lifting.
- Safety and Compliance: Each shackle is marked with its size, working load limit (W.L.L), trademark, and name, meeting the performance requirements of EN 13889. Proof load tested to 2 times the W.L.L, with a minimum breaking load of 6 times the W.L.L, ensuring compliance with rigorous safety standards.
- Enhanced Durability: Constructed from Grade 6 high tensile steel body and pin, quenched and tempered for maximum strength and resilience. 100% magnaflux crack detection during manufacturing ensures structural integrity and reliability.
- Corrosion Resistance: The body is hot-dip galvanized for corrosion resistance, while the pin is powder coated, providing added protection against environmental elements for prolonged service life.
Specifications:
- Material: Body: Forged carbon steel, Pin: Alloy steel
- Finish: Body: Hot dip galvanized, Pin: Powder coated
- Construction: Quenched & tempered

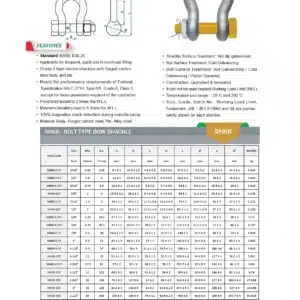

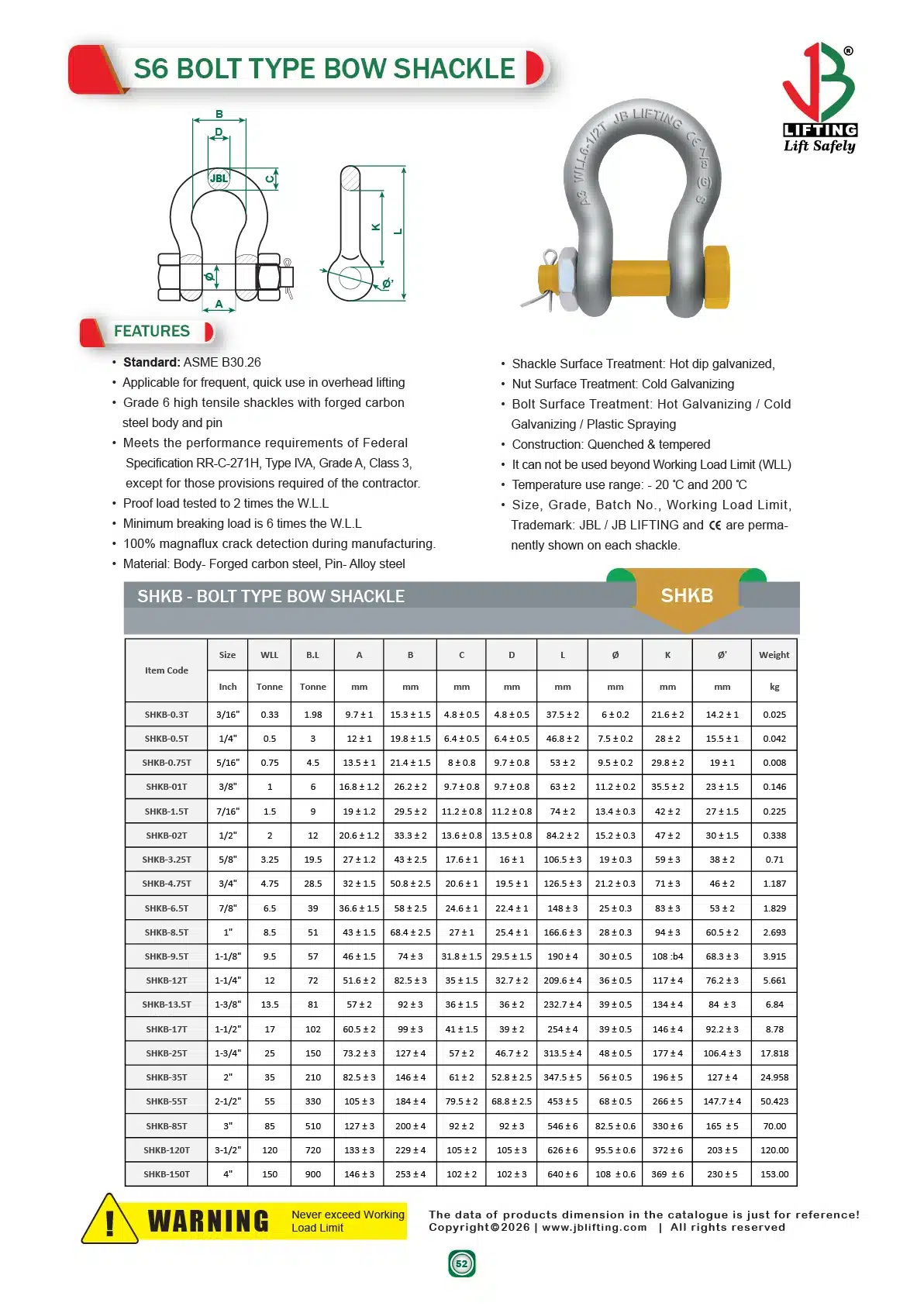

Parameters (Unit: mm)
| Item Code | Size | WLL | B.L | A | B | C | D | L | Ø | K | Ø' | Weight |
| (Inch) | (Tonnes) | (Tonnes) | (MM) | (MM) | (MM) | (MM) | (MM) | (MM) | (MM) | (MM) | (kg) | |
| SHKB-0.3T | 3/16" | 0.33 | 1.98 | 9.7 ± 1 | 15.3 ± 1.5 | 4.8 ± 0.5 | 4.8 ± 0.5 | 37.5 ± 2 | 6 ± 0.2 | 21.6 ± 2 | 14.2 ± 1 | 0.025 |
| SHKB-0.5T | 1/4" | 0.5 | 3 | 12 ± 1 | 19.8 ± 1.5 | 6.4 ± 0.5 | 6.4 ± 0.5 | 46.8 ± 2 | 7.5 ± 0.2 | 28 ± 2 | 15.5 ± 1 | 0.042 |
| SHKB-0.75T | 5/16" | 0.75 | 4.5 | 13.5 ± 1 | 21.4 ± 1.5 | 8 ± 0.8 | 9.7 ± 0.8 | 53 ± 2 | 9.5 ± 0.2 | 29.8 ± 2 | 19 ± 1 | 0.008 |
| SHKB-01T | 3/8" | 1 | 6 | 16.8 ± 1.2 | 26.2 ± 2 | 9.7 ± 0.8 | 9.7 ± 0.8 | 63 ± 2 | 11.2 ± 0.2 | 35.5 ± 2 | 23 ± 1.5 | 0.146 |
| SHKB-1.5T | 7/16" | 1.5 | 9 | 19 ± 1.2 | 29.5 ± 2 | 11.2 ± 0.8 | 11.2 ± 0.8 | 74 ± 2 | 13.4 ± 0.3 | 42 ± 2 | 27 ± 1.5 | 0.225 |
| SHKB-02T | 1/2" | 2 | 12 | 20.6 ± 1.2 | 33.3 ± 2 | 13.6 ± 0.8 | 13.5 ± 0.8 | 84.2 ± 2 | 15.2 ± 0.3 | 47 ± 2 | 30 ± 1.5 | 0.338 |
| SHKB-3.25T | 5/8" | 3.25 | 19.5 | 27 ± 1.2 | 43 ± 2.5 | 17.6 ± 1 | 16 ± 1 | 106.5 ± 3 | 19 ± 0.3 | 59 ± 3 | 38 ± 2 | 0.71 |
| SHKB-4.75T | 3/4" | 4.75 | 28.5 | 32 ± 1.5 | 50.8 ± 2.5 | 20.6 ± 1 | 19.5 ± 1 | 126.5 ± 3 | 21.2 ± 0.3 | 71 ± 3 | 46 ± 2 | 1.187 |
| SHKB-6.5T | 7/8" | 6.5 | 39 | 36.6 ± 1.5 | 58 ± 2.5 | 24.6 ± 1 | 22.4 ± 1 | 148 ± 3 | 25 ± 0.3 | 83 ± 3 | 53 ± 2 | 1.829 |
| SHKB-8.5T | 1" | 8.5 | 51 | 43 ± 1.5 | 68.4 ± 2.5 | 27 ± 1 | 25.4 ± 1 | 166.6 ± 3 | 28 ± 0.3 | 94 ± 3 | 60.5 ± 2 | 2.693 |
| SHKB-9.5T | 1-1/8" | 9.5 | 57 | 46 ± 1.5 | 74 ± 3 | 31.8 ± 1.5 | 29.5 ± 1.5 | 190 ± 4 | 30 ± 0.5 | 108 :b4 | 68.3 ± 3 | 3.915 |
| SHKB-12T | 1-1/4" | 12 | 72 | 51.6 ± 2 | 82.5 ± 3 | 35 ± 1.5 | 32.7 ± 2 | 209.6 ± 4 | 36 ± 0.5 | 117 ± 4 | 76.2 ± 3 | 5.661 |
| SHKB-13.5T | 1-3/8" | 13.5 | 81 | 57 ± 2 | 92 ± 3 | 36 ± 1.5 | 36 ± 2 | 232.7 ± 4 | 39 ± 0.5 | 134 ± 4 | 84 ± 3 | 6.84 |
| SHKB-17T | 1-1/2" | 17 | 102 | 60.5 ± 2 | 99 ± 3 | 41 ± 1.5 | 39 ± 2 | 254 ± 4 | 39 ± 0.5 | 146 ± 4 | 92.2 ± 3 | 8.78 |
| SHKB-25T | 1-3/4" | 25 | 150 | 73.2 ± 3 | 127 ± 4 | 57 ± 2 | 46.7 ± 2 | 313.5 ± 4 | 48 ± 0.5 | 177 ± 4 | 106.4 ± 3 | 17.818 |
| SHKB-35T | 2" | 35 | 210 | 82.5 ± 3 | 146 ± 4 | 61 ± 2 | 52.8 ± 2.5 | 347.5 ± 5 | 56 ± 0.5 | 196 ± 5 | 127 ± 4 | 24.958 |
| SHKB-55T | 2-1/2" | 55 | 330 | 105 ± 3 | 184 ± 4 | 79.5 ± 2 | 68.8 ± 2.5 | 453 ± 5 | 68 ± 0.5 | 266 ± 5 | 147.7 ± 4 | 50.423 |
| SHKB-85T | 3" | 85 | 510 | 127 ± 3 | 200 ± 4 | 92 ± 2 | 92 ± 3 | 546 ± 6 | 82.5 ± 0.6 | 330 ± 6 | 165 ± 5 | 70.00 |
| SHKB-120T | 3-1/2" | 120 | 720 | 133 ± 3 | 229 ± 4 | 105 ± 2 | 105 ± 3 | 626 ± 6 | 95.5 ± 0.6 | 372 ± 6 | 203 ± 5 | 120.00 |
| SHKB-150T | 4" | 150 | 900 | 140 ± 3 | 254 ± 4 | 116 ± 2 | 116 ± 3 | 653 ± 6 | 108 ± 0.6 | 368 ± 6 | 229 ± 5 | 153.00 |
Application:
Our Anchor-Bow-Omega Shaped Forged Shackle with Bolt Pin is designed for frequent, quick use in overhead lifting applications, making it ideal for various industries including construction, manufacturing, and transportation. It is suitable for lifting heavy loads securely and reliably, providing peace of mind in critical lifting operations.
How to Use:
- Determine Working Load Limit: Refer to the markings on the shackle to identify its size and working load limit (W.L.L) before use. Ensure that the load to be lifted does not exceed the specified W.L.L.
- Proper Installation: Attach the shackle securely to the lifting equipment using the bolt pin provided. Ensure that the pin is properly seated and tightened to prevent slippage or disengagement during lifting operations.
- Safety Precautions: Always inspect the shackle for signs of wear, damage, or deformation before each use. Do not use the shackle beyond its working load limit, as this can compromise safety and lead to equipment failure.
- Lifting Operations: Position the shackle appropriately for the lifting operation, ensuring that the load is balanced and securely attached. Use appropriate rigging techniques and lifting equipment to safely lift and transport the load.
- Post-Use Inspection: After use, inspect the shackle for any signs of damage or deformation. Clean and store the shackle properly in a dry, well-ventilated area to prevent corrosion and ensure longevity.
SSTC’s Anchor-Bow-Omega Shaped Forged Shackle with Bolt Pin is a reliable and durable lifting accessory designed for overhead lifting applications. With its premium construction, safety features, and corrosion resistance, this shackle provides unmatched performance and peace of mind in demanding industrial environments.
Please Contact Us for any inquiry!
