Closed Spelter Socket Dimensions​:
Find accurate closed spelter socket​ dimensions. We offer reliable, robust sockets designed for secure wire rope terminations and lifting applications.
9AM-6PM
Sun-Thu
Menu
Categories
Brand:

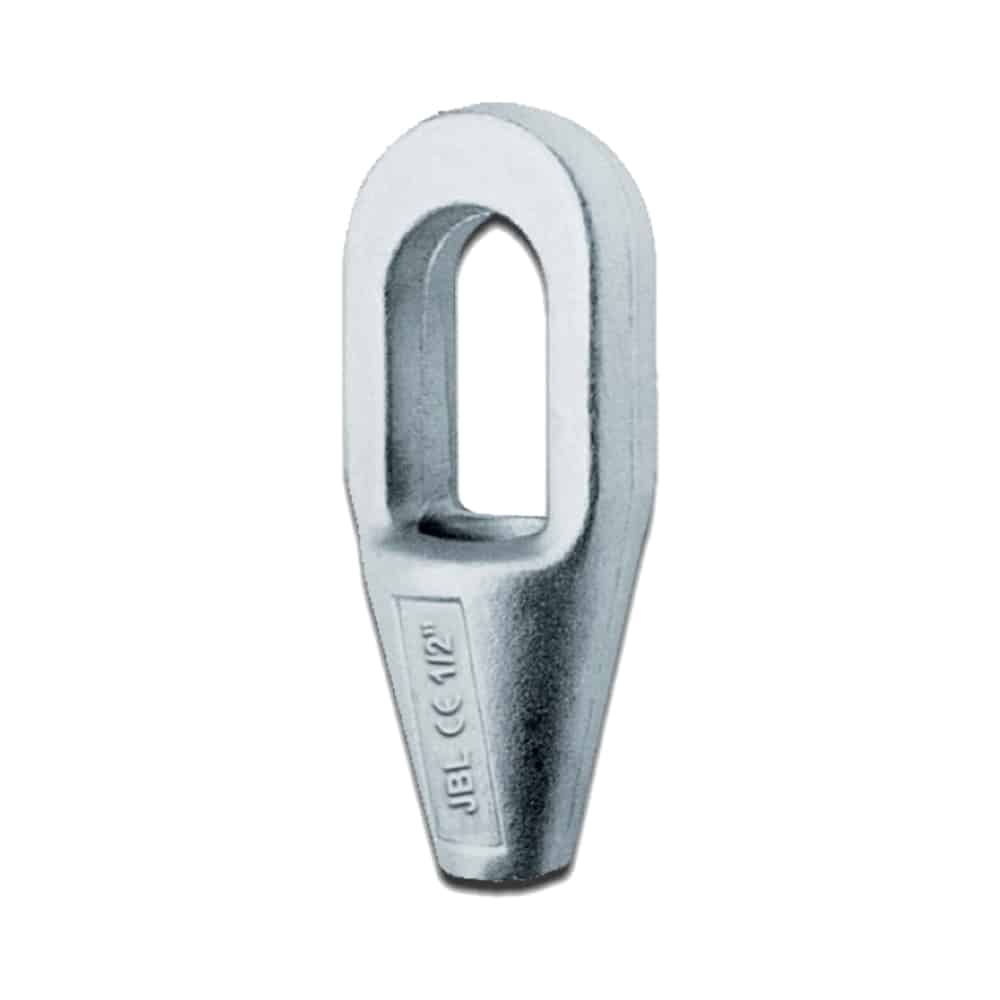

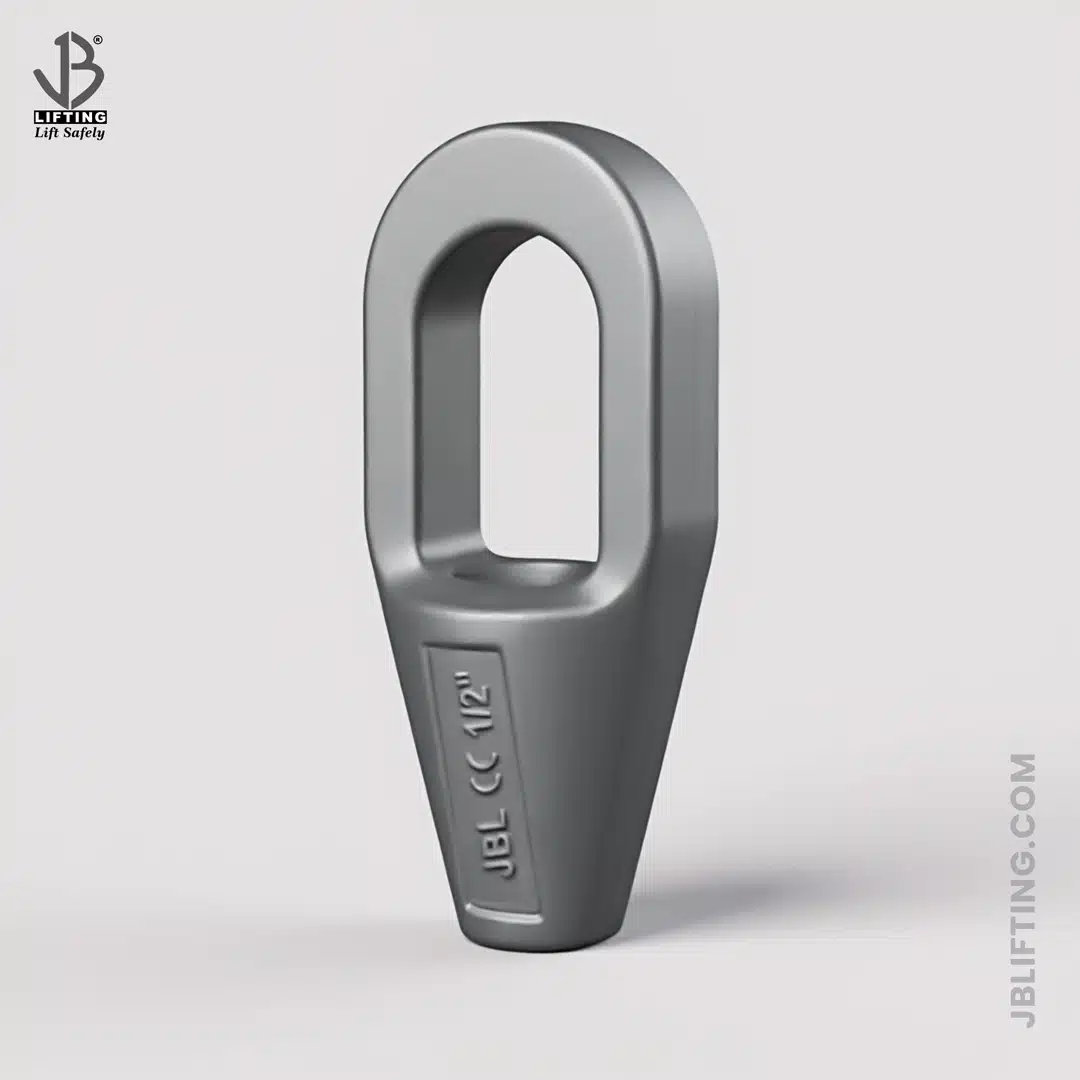

Our Wire Rope Closed Spelter Socket is a specialized fitting used for wire rope termination and attachment. It consists of a tubular structure with a conical or spelter socket that is closed on one end. This socket is designed to be inserted and swung onto the end of a wire rope to create a secure and durable termination point. Our Closed Spelter Sockets are commonly used in rigging, lifting, and suspension applications. A strong and reliable connection is essential for safety and load-bearing capabilities, and the closed end provides added protection to the rope.
Ask An Expert
Our experts are ready to help.
Your Payment is 100% Secure
Wire Rope Closed Spelter Socket
| Item code(S) | Rope Dia | Structural Strand Dia. (in) |
Ultimate Load (t) |
Weight Each (lb) |
Dimensions (in) | ||||||||||
| (in) | (mm) | A | B | C | D | F | G | H | J | K | L | ||||
| SKSRC-10 | 5/16 – 3/8 | 8-10 | — | 12.0 | 75 | 4.94 | 62 | 1.69 | 0.97 | 0.50 | 0.81 | 1.69 | 2.25 | 0.69 | 2.06 |
| SKSRC11-13 | 7/16 – 1/2 | 11-13 | — | 20.0 | 1.50 | 5.50 | 69 | 2.00 | 1.16 | 0.56 | 0.94 | 2.00 | 2.50 | 0.88 | 2.31 |
| SKSRC14-16 | 9/16 – 5/8 | 14-16 | 1/2 | 30.8 | 2.5 | 6.31 | 81 | 2.63 | 1.41 | 0.69 | 1.12 | 2.38 | 3.00 | 1.00 | 2.50 |
| SKSRC18 | 3/4 | 18 | 9/16 – 5/8 | 43.5 | 4.25 | 7.62 | 1.06 | 3.00 | 1.66 | 0.88 | 1.25 | 2.75 | 3.50 | 1.25 | 3.06 |
| SKSRC20-22 | 7/8 | 20-22 | Â 11/16 – 3/4 | 65.3 | 7.25 | 8.75 | 1.25 | 3.63 | 1.94 | 1.00 | 1.50 | 3.25 | 4.00 | 1.50 | 3.50 |
| SKSRC24-26 | 1 | 24-26 | Â 13/16 – 7/8 | 81.6 | 10.50 | 9.91 | 1.41 | 4.13 | 2.30 | 1.13 | 1.75 | 3.75 | 4.50 | 1.75 | 4.00 |
| SKSRC28-30 | 1-1/8 | 28-30 | Â 15/16 -1 | 100 | 14.25 | 11.00 | 1.50 | 4.50 | 2.56 | 1.25 | 2.00 | 4.13 | 5.00 | 2.00 | 4.50 |
| SKSRC32-35 | 1-1/4 -1-3/8 | 32-35 | Â 1-1/16 -1-1/8 | 136 | 19.75 | 12.12 | 1.63 | 5.00 | 2.81 | 1.50 | 2.25 | 4.75 | 5.50 | 2.25 | 5.00 |
| SKSRC38 | 1-1/2 | 38 | Â 1-3/16 – 1-1/4 | 170 | 29.20 | 13.94 | 1.94 | 5.38 | 3.19 | 1.63 | 2.75 | 5.25 | 6.00 | 2.50 | 6.00 |
| SKSRC40-42 | Â 1-5/8 | Â 40-42 | Â 1-5/16 – 1-3/8 | 188 | 36.00 | 15.13 | 2.13 | 5.75 | 3.25 | 1.75 | 3.00 | 5.50 | 6.50 | 2.75 | 6.50 |
| SKSRC44-48 | Â 1-3/4 – 1-7/8 | Â 44-48 | Â 1-7/16 – 1-5/8 | 268 | 57.25 | 17.25 | 2.19 | 6.75 | 3.75 | 2.00 | 3.13 | 6.38 | 7.50 | 3.00 | 7.56 |
| SKSRC50-54 | Â 2 – 2-1/8 | Â 50-54 | Â 1-11/16 – 1-3/4 | 309 | 79.00 | 19.87 | 2.44 | 7.63 | 4.38 | 2.25 | 3.75 | 7.38 | 8.50 | 3.25 | 8.81 |
| SKSRC56-60 | Â 2-1/4 – 2-3/8 | Â 56-60 | 1-13/16 – 1-7/8 | 360 | 105.00 | 21.50 | 2.75 | 8.50 | 5.00 | 2.63 | 4.13 | 8.25 | 9.00 | 3.63 | 9.75 |
| SKSRC54-67 | Â 2-1/2 – 2-5/8 | Â 64-67 | 1-15/16 – 2-1/8 | 424 | 140.00 | 23.50 | 3.12 | 9.50 | 5.50 | 2.88 | 4.50 | 9.25 | 9.75 | 4.00 | 10.62 |
| SKSRC70-73 | Â 2-3/4 – 2-7/8 | Â 70-73 | 2-3/16-2-7/16 | 549 | 220.00 | 25.38 | 3.12 | 10.75 | 6.25 | 3.12 | 4.88 | 10.19 | 11.00 | 4.88 | 11.25 |
| SKSRC75-80 | Â 3 – 3-1/8 | Â 75-80 | 2-1/2 – 2-5/8 | 656 | 276.00 | 27.12 | 3.37 | 11.50 | 6.75 | 3.38 | 5.25 | 11.50 | 12.00 | 5.25 | 11.75 |
| SKSRC82-86 | Â 3-1/4 – 3-3/8 | Â 82-86 | 2-3/4 – 2-7/8 | 750 | 313.00 | 29.25 | 4.00 | 12.25 | 7.25 | 3.62 | 5.75 | 12.25 | 13.00 | 5.75 | 12.25 |
| SKSRC88-92 | Â 3-1/2 – 3-5/8 | Â 88-92 | 3 – 3-1/8 | 820 | 400.00 | 31.00 | 4.00 | 13.00 | 7.75 | 3.88 | 6.31 | 13.00 | 14.00 | 6.25 | 13.00 |
| SKSRC94-102 |  3-3/4 – 4 | 94-102 | — | 1005 | 542.00 | 33.25 | 4.25 | 14.25 | 8.50 | 4.25 | 7.25 | 14.25 | 15.00 | 7.00 | 14.00 |
Closed Spelter Socket Installation​:
- Prepare the Wire Rope
First, clean and prepare the wire rope ends. Ensure they are free from dirt, oil, and rust. - Insert the Rope
Next, insert the prepared rope into the closed spelter socket​ until it reaches the proper depth. - Set the Rope Position
Ensure the rope is positioned correctly inside the closed spelter socket​, without any twists or bends. - Apply the Zinc
Fill the socket with molten zinc. The zinc should completely surround the rope strands, securing the rope in place. - Allow to Cool
Let the spelter socket cool and solidify. This ensures a strong bond between the rope and the socket. - Check the Installation
Inspect the completed installation to verify that the rope is securely fastened and the socket is fully set.
For secure and efficient lifting, always follow safety guidelines and use the appropriate tools. Proper installation ensures safety and durability in all lifting tasks.
Precautions & FAQs| Weight | N/A |
|---|---|
| Diameter(mm) | 6-7mm, 8-10mm, 11-13mm, 14-16mm, 18mm, 20-22mm, 24-26mm, 28-30mm, 32-35mm, 38mm, 40-42mm, 44-48mm, 50-54mm, 56-60mm, 64-67mm, 70-73mm, 75-80mm, 82-86mm, 88-92mm, 94-102mm |
