- Used for changing rope direction and simplifying lifting or hauling.
- 4-inch sheave diameter.
- Fits ropes from 3/8″ to 1/2″.
- Load capacity of 1,200 pounds.
Ask An Expert
Our experts are ready to help.
Your Payment is 100% Secure

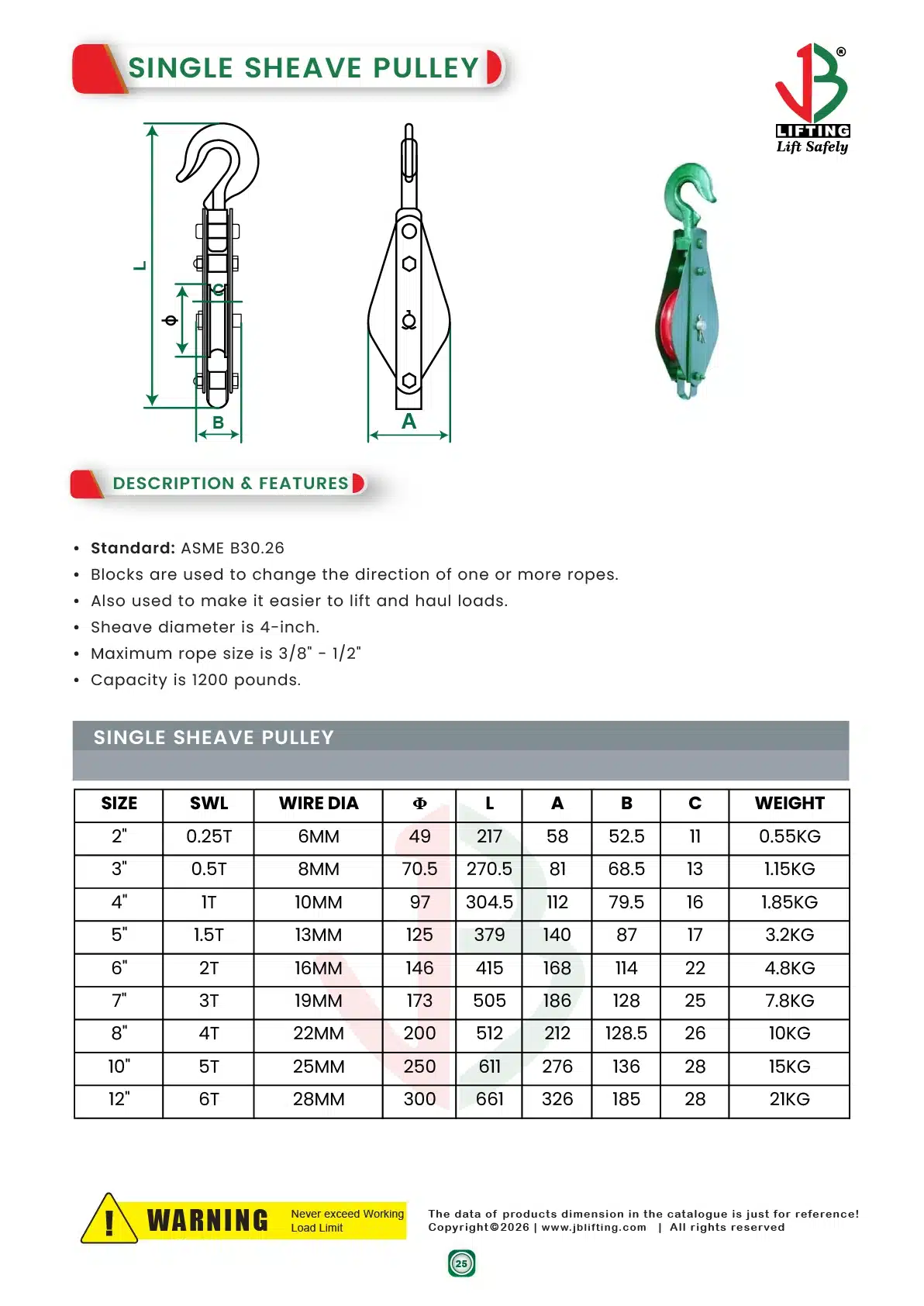

Single Sheave Pulley
The Single Sheave Pulley is perfect for redirecting ropes and making heavy lifting easier. Its durable design ensures reliable performance in demanding tasks.
- Blocks are used to change the direction of one or more ropes.
- Also used to make it easier to lift and haul loads.
- Sheave diameter is 4 inches.
- Maximum rope size is 3/8″ – 1/2″.
- Capacity is 1,200 pounds.
| SIZE | SWL | WIRE DIA | Φ | L | A | B | C | WEIGHT |
| 2″ | 0.25T | 6MM | 49 | 217 | 58 | 52.5 | 11 | 0.55KG |
| 3″ | 0.5T | 8MM | 70.5 | 270.5 | 81 | 68.5 | 13 | 1.15KG |
| 4″ | 1T | 10MM | 97 | 304.5 | 112 | 79.5 | 16 | 1.85KG |
| 5″ | 1.5T | 13MM | 125 | 379 | 140 | 87 | 17 | 3.2KG |
| 6″ | 2T | 16MM | 146 | 415 | 168 | 114 | 22 | 4.8KG |
| 7″ | 3T | 19MM | 173 | 505 | 186 | 128 | 25 | 7.8KG |
| 8″ | 4T | 22MM | 200 | 512 | 212 | 128.5 | 26 | 10KG |
| 10″ | 5T | 25MM | 250 | 611 | 276 | 136 | 28 | 15KG |
| 12″ | 6T | 28MM | 300 | 661 | 326 | 185 | 28 | 21KG |
