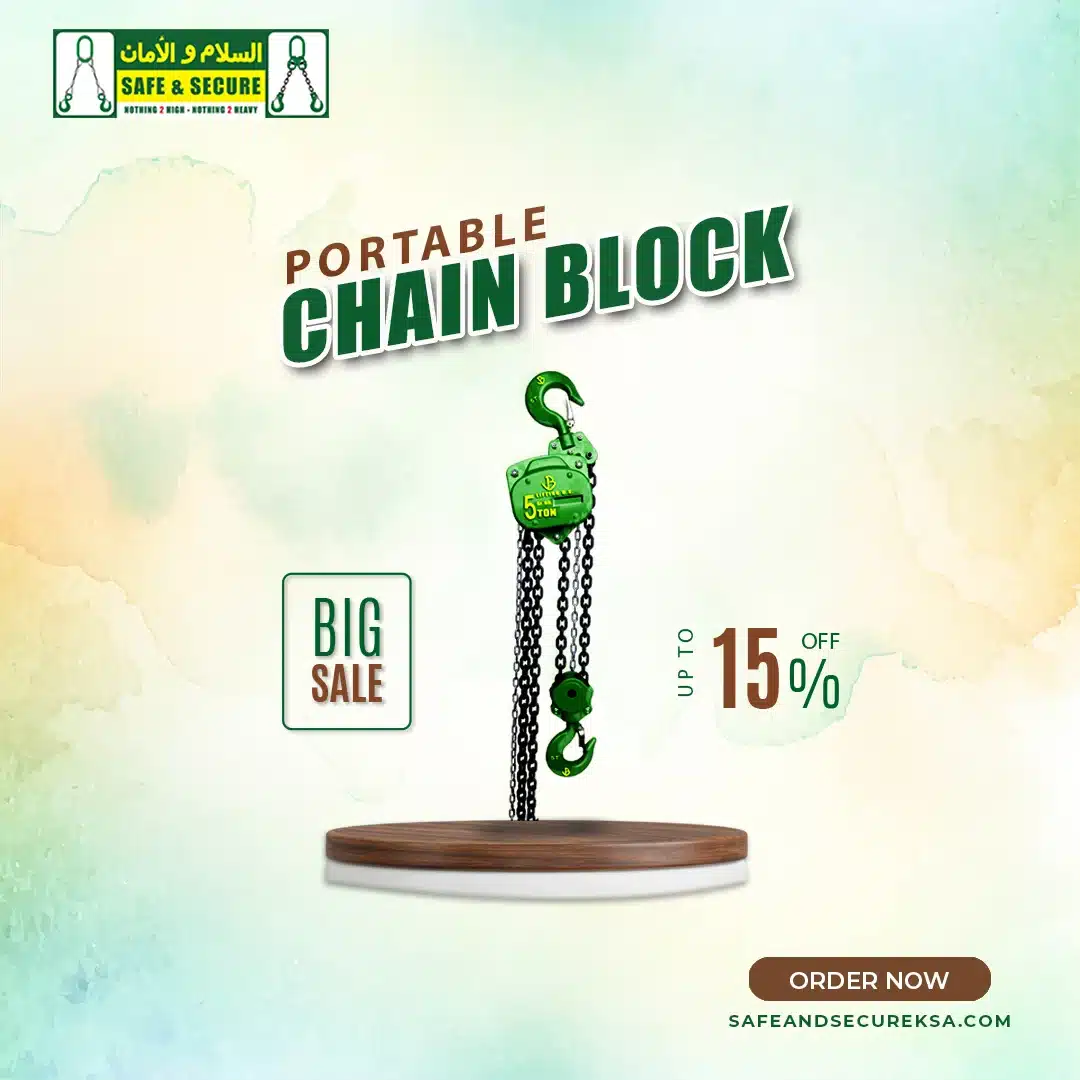

MANUAL-HAND OPERATED-PORTABLE CHAIN BLOCK HOIST PULLEY
We are introducing our Manual Hand-Operated Portable Chain Block Hoist Pulley, provided by the premier Chain Pulley Block supplier in KSA. This versatile lifting solution is meticulously crafted for optimal performance in diverse industrial settings. With a focus on quality, reliability, and convenience, our chain pulley blocks offer a compact and portable design, allowing for efficient handling in various work environments.
Features:
Meets and Exceeds: ANSI/ASME B30.16, BS EN 13157:2004
- WLL 0.5 ton 20 tones.
- Factor of Safety (FoS) – 4:1
- Safe and reliable in operations with minimum maintenance.
- High efficiency and small hand pull.
- Lightweight and easy handling.
- Durability in service.
- Swivel 360o hooks with heavy-duty cast safety latches.
- Automatic double pawl brake
- Tested to 150 % of Working Load Limit.
- High tensile quality load/lift chain.
- Zinc-plated / Hot-dip Galvanized chain
- Strong bolts between side plates and housing cover and the reinforced hand wheel cover ensure increased stability.
- Precision machined guide rollers ensure the smooth running of the load chain.
- High-quality bearings for the gearbox, side plates, and load chain sheave permit a long service life.
- Double pawls supporting fail-safe brake mechanism for secure operations.
- Load sheave with sealed roller bearing
- Heat-treated steel side plates, gears, and shafts for enhanced strength
- Quenched and Tempered High tensile alloy steel chains and hooks
- Powder coated finished
- JB Lifting Logo, CE, Serial / Identification ID number, and WLL / SWL are shown on the tag.
Specifications:
ItemCode(s) | CHB0.5 | CHB01 | CHB1.5 | CHB02 | CHB03 | CHB05 | CHB10 | CHB20 | ||
Capacity / WLL / SWL | (Ton) | 0.5 | 01 | 1.5 | 02 | 03 | 05 | 10 | 20 | |
Standard Length | (Chain Lift in Meter)* | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Test Load | (Ton) | 0.75 | 1.5 | 2.4 | 3 | 4.8 | 7.5 | 12.5 | 25 | |
Pull to lift full load | (N) | 240 | 330 | 340 | 340 | 350 | 390 | 410×2 | 410×2 | |
Number of Load Chain | (Chain Falls) | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
Load Grade 80 Chain Dia | (mm) | 5 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | 9 | |
Dimensions (mm) | A | (mm) | 127 | 147 | 147 | 179 | 179 | 179 | 179 | 207 |
B | (mm) | 144 | 157 | 174 | 204 | 206 | 263 | 367 | 873 | |
C | (mm) | 285 | 315 | 340 | 315 | 340 | 380 | 475 | 760 | |
D | (mm) | 27 | 30 | 34 | 37 | 43 | 46 | 67 | 96 | |
Net Weight | (kg) | 8.6 | 11.5 | 13.8 | 21.6 | 23 | 41 | 78 | 190 | |
Weight of Extra Chain each Meter | (kg) | 1.5 | 1.8 | 2.1 | 2.3 | 3.2 | 4.4 | 7.9 | 14.8 |
* Standard Lengths: 3 and 6 meter.
* Whereas customizable Lengths are available depending on customer requirements in both meters and feet.
* For Custom Lengths,  please Contact Us for your inquiry
Application:
The Manual Hand-Operated Portable Chain Block Hoist Pulley is suitable for a wide range of lifting applications in industrial settings, including:
- Construction sites: Ideal for lifting and positioning heavy materials and equipment during construction projects.
- Warehouses and distribution centers: Perfect for loading and unloading goods from trucks and storage areas.
- Manufacturing facilities: Essential for handling and transporting heavy machinery and components along assembly lines.
- Maintenance and repair workshops: Suitable for lifting and servicing heavy equipment and vehicles.
How to Use:
- Ensure the chain block hoist pulley is securely attached to a stable and suitable anchorage point using the swivel 360o hooks with heavy-duty cast safety latches.
- Adjust the chain length and position the load beneath the load sheave of the chain block hoist pulley.
- Operate the hand wheel to raise or lower the load, ensuring smooth and controlled lifting or lowering.
- Use the automatic double pawl brake for secure holding of the load at the desired height during lifting operations.
- After use, lower the load to the ground and secure the chain block hoist pulley in a safe and designated storage area.
