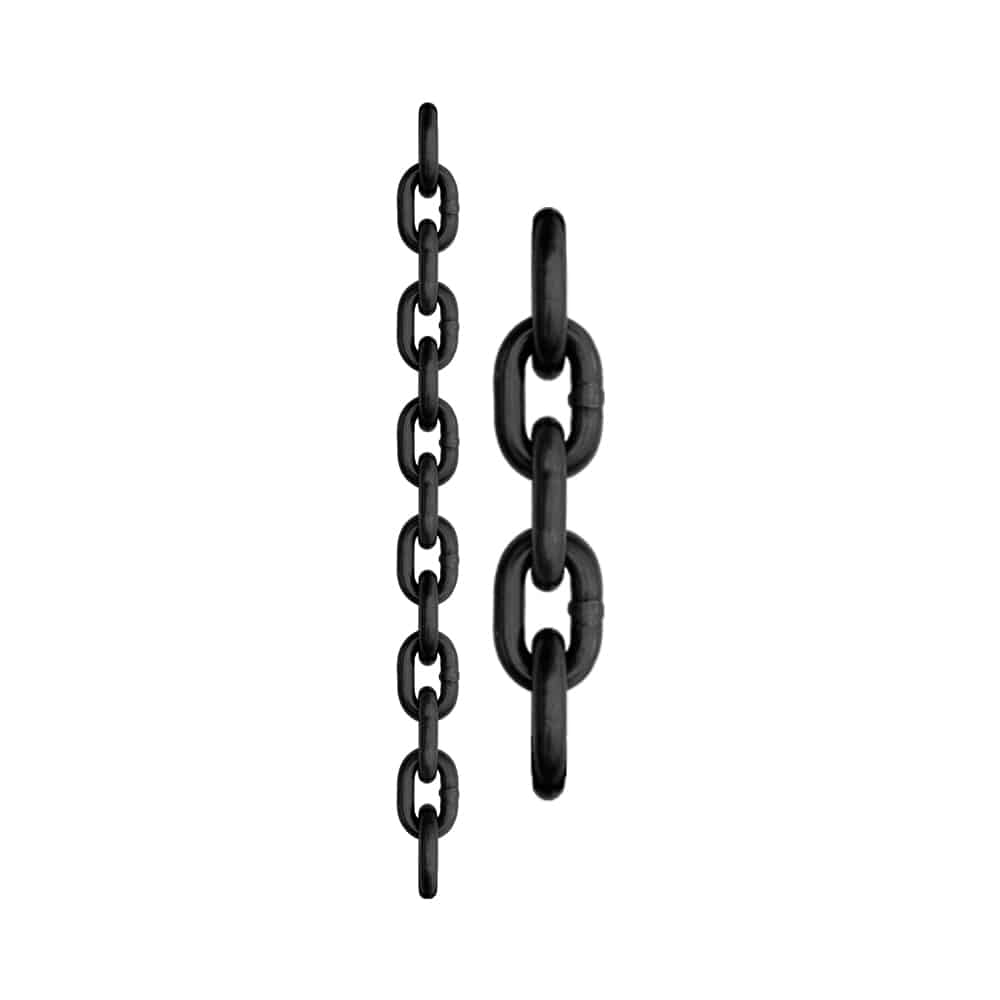

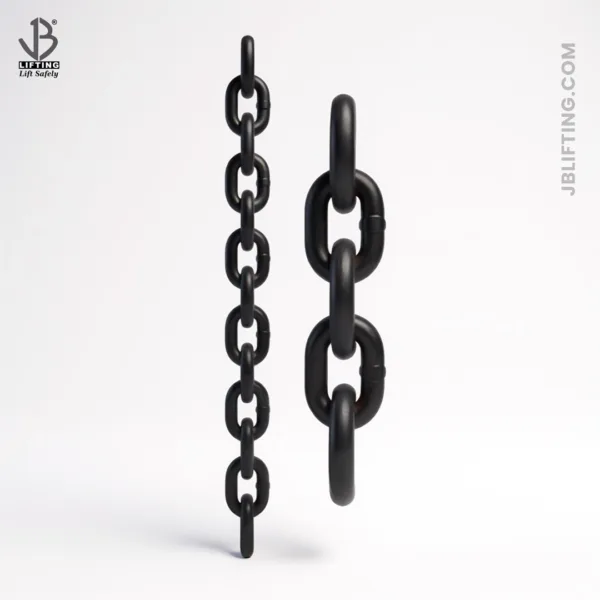

Grade 43 Alloy Chain​
Introducing our grade 43 chain​​​, the ultimate solution for heavy-duty trucking, major construction activities, binding towing, and logging applications. Crafted with precision and engineered for superior performance, this grade 43 chain​ boasts high tensile strength and wear resistance, making it the preferred choice for demanding tasks where reliability is non-negotiable.
- High Tensile Strength: The Grade 43 alloy steel chain offers exceptional strength for heavy-duty trucking, construction, towing, and logging.
- Wear Resistance: This chain withstands wear and tear, ensuring long-term durability and reliable performance in demanding environments.
- Safety Factor 3:1: With a 3:1 safety factor, the g43 alloy chain meets strict safety standards, offering peace of mind in critical tasks.
- Identification and Traceability: Each g43 alloy chain link is embossed with a JB marking for easy identification and traceability, ensuring accountability.
- Finish: The G43 chain is black, quenched, and tempered, boosting durability and corrosion resistance for extended service life.
Grade 43 Chain Specs​:
ItemCode(s) | Normal Chain Size (dn) |
Material Diameter |
Working Load Limit |
Proof Test Min |
Minimum Breaking Force |
Inside Length Max (D) |
Inside Width Min (W1) |
|||||||
In | mm | In | mm | Ib | kg | Ib | kN | Ib | kN | In | mm | In | mm | |
CHN07-G43 | 1/4 | 7 | 0.276 | 7 | 2600 | 1180 | 3900 | 17.3 | 7800 | 34.6 | 1.24 | 31.5 | 0.38 | 9.8 |
CHN09-G43 | 5/16 | 8.7 | 0.343 | 8.7 | 3900 | 1770 | 5850 | 26 | 11700 | 52 | 1.29 | 32.8 | 0.44 | 11.2 |
CHN10-G43 | 3/8 | 10 | 0.406 | 10.3 | 5400 | 2450 | 8100 | 36 | 16200 | 72 | 1.38 | 35 | 0.55 | 14 |
CHN12-G43 | 7/16 | 11.9 | 0.468 | 11.9 | 7200 | 3270 | 10800 | 48 | 21600 | 96 | 1.64 | 41.6 | 0.65 | 16.6 |
CHN13-G43 | 1/2 | 13 | 0.531 | 13.5 | 9200 | 4170 | 13800 | 61.3 | 27600 | 122.6 | 1.79 | 45.5 | 0.72 | 18.2 |
CHN16-G43 | 5/8 | 16 | 0.630 | 16 | 13000 | 5910 | 19500 | 86.5 | 39000 | 173 | 2 | 56 | 0.79 | 20 |
CHN20-G43 | 3/4 | 20 | 0.787 | 20 | 20200 | 9180 | 30300 | 134.7 | 60000 | 269.4 | 2.76 | 70 | 0.98 | 25 |
CHN22-G43 | 7/8 | 22 | 0.866 | 22 | 24500 | 11140 | 36750 | 163.3 | 73500 | 326.6 | 3.03 | 77 | 1.08 | 27.5 |
Remember:Â Not to be used for overhead lifting.
