- Versatile tool designed for secure load binding in transportation applications.
- Features continuous take-up for infinite adjustment and one-piece assembly for durability.
- Constructed from drop-forged alloy steel with a rust-proofed ratchet spring for reliable performance.
Please select Diameter
Ask An Expert
Our experts are ready to help.
Your Payment is 100% Secure

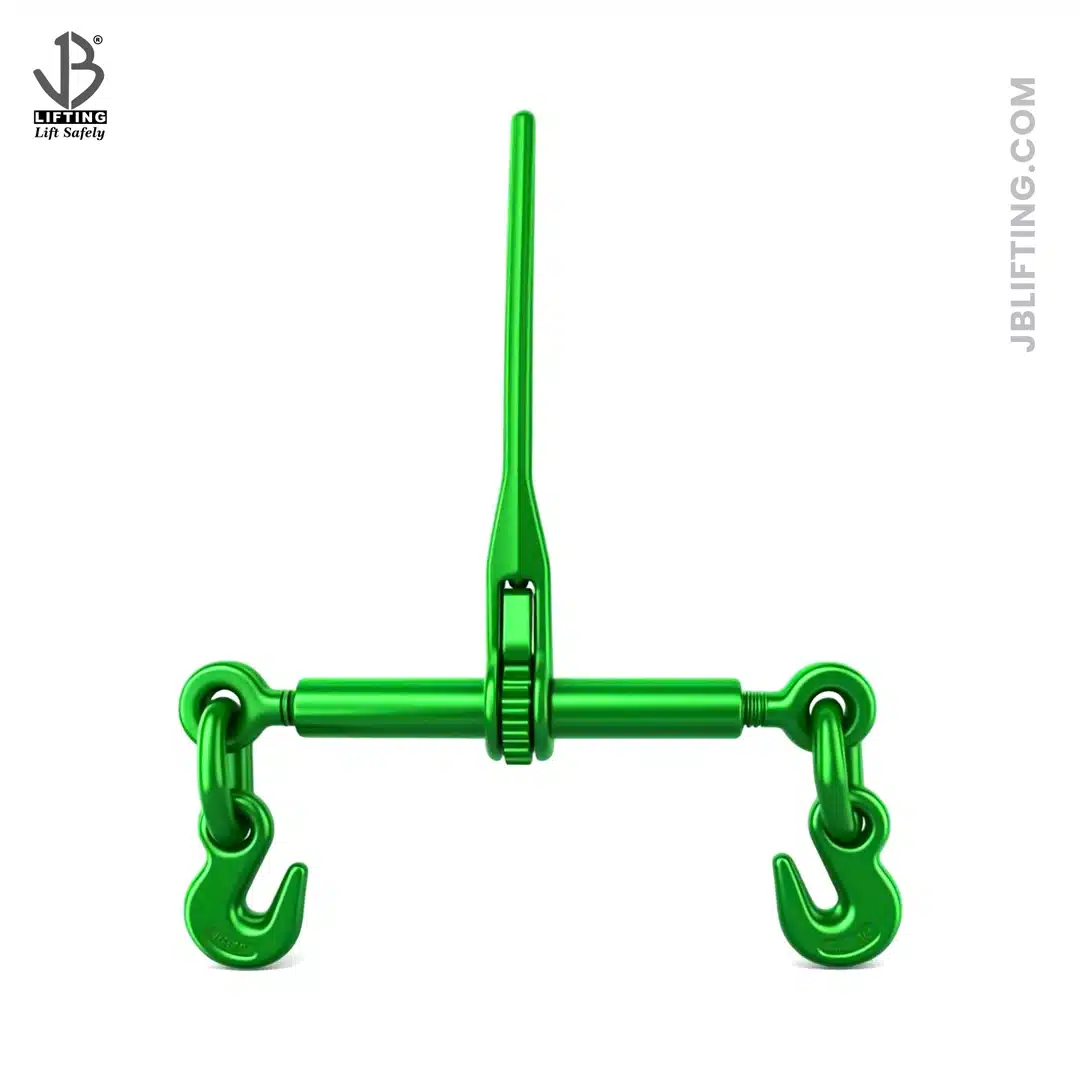

Load Binder Ratchet Type
Key Features:
- Versatile Design: The load binder ratchet type is designed for all types of transport use, providing a reliable solution for securing loads on trucks, trailers, and other vehicles.
- Continuous Take-Up Feature: Equipped with a continuous take-up feature, this load binder ratchet type offers infinite adjustment, allowing it to easily get the last link of the chain for precise and secure tensioning.
- One-Piece Assembly: Featuring a one-piece assembly design, this load binder ratchet type eliminates the need for bolts or nuts, minimizing the risk of loosening during transportation and ensuring long-lasting reliability.
- Rust-Proofed Ratchet Spring: The ratchet spring is rust-proofed, providing durability and reliability in harsh environmental conditions, ensuring smooth and consistent operation.
- Heavy-Duty Construction: All load-bearing or holding parts of the load binder ratchet type are forged from drop-forged alloy steel, quenched, and tempered for exceptional strength and durability.
- Easy Operating Positive Ratchet: The load binder ratchet type is equipped with an easy operating positive ratchet, allowing for quick and efficient tensioning of loads with minimal effort.
- Painted Finish: Finished with a durable paint coating, this load binder ratchet type offers corrosion resistance and a professional appearance, ensuring longevity and reliability in various working environments.
- Reinforced Hooks and Special Safety Devices: Fitted with reinforced hooks and special safety devices, this load binder ratchet type provides a secure attachment and prevents accidental disengagement during transportation.
- Minimum Breaking Load: The minimum breaking load of the load binder ratchet type is 2 times the lashing capacity, ensuring safety and reliability in critical load-binding operations.
- CE Certification: CE certified with size, lashing capacity, and SSTC embossed, this load binder ratchet type meets international quality and safety standards, ensuring compliance and traceability

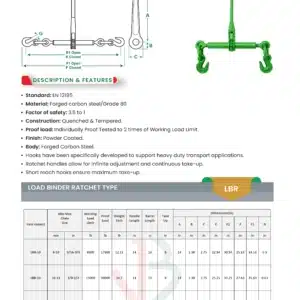

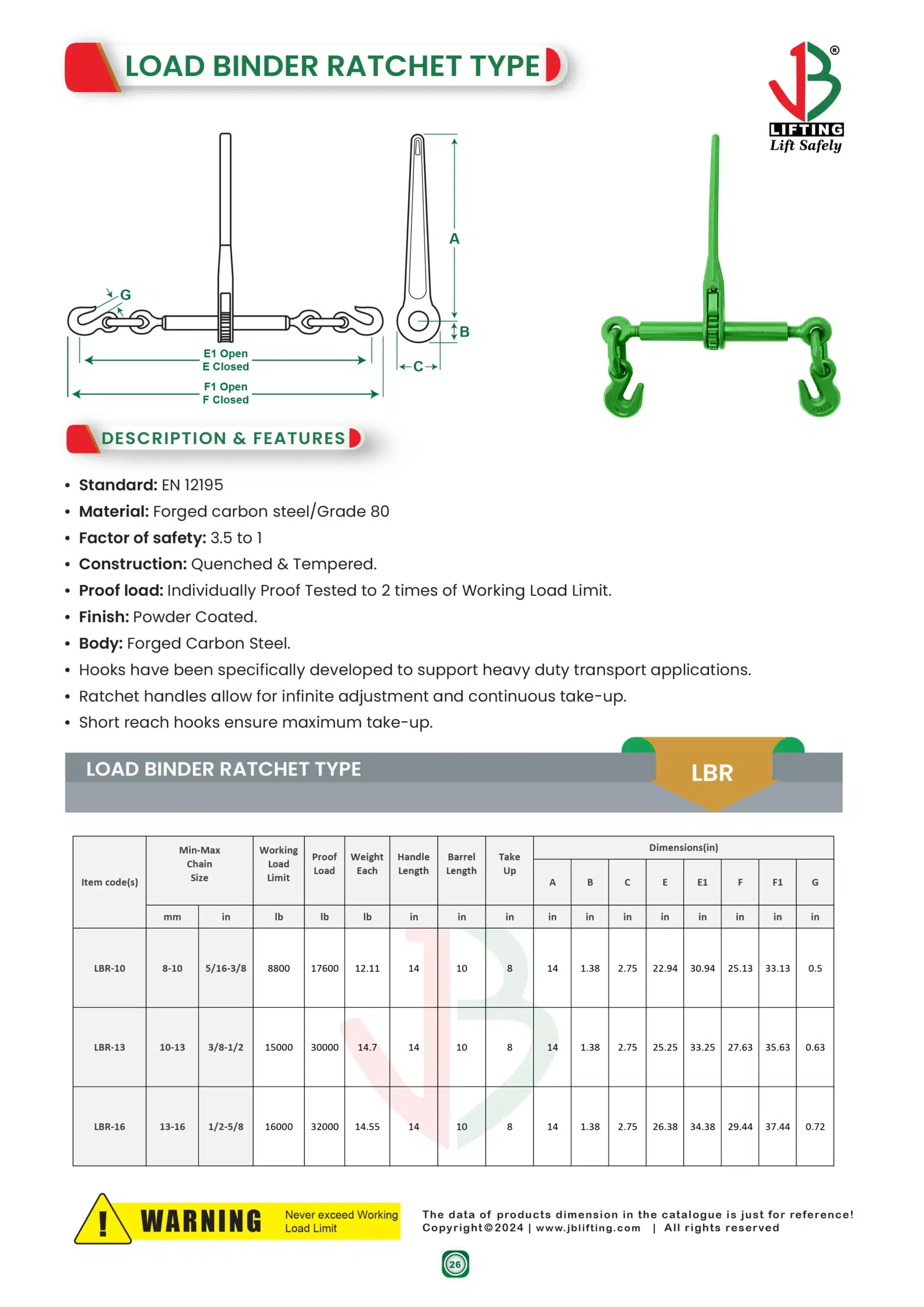

Ratchet Load Binder Dimension:
| Item code(s) | Min-Max Chain Size | Working Load Limit | Proof Load | Weight Each | Handle Length | Barrel Length | Take Up | Dimensions | ||||||||
| A | B | C | E | E1 | F | F1 | G | |||||||||
| mm | in | lb | lb | lb | in | in | in | in | in | in | in | in | in | in | in | |
| LBR-10 | 8-10 | 5/16-3/8 | 8800 | 17600 | 12.11 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 22.94 | 30.94 | 25.13 | 33.13 | 0.5 |
| LBR-13 | 10-13 | 3/8-1/2 | 15000 | 30000 | 14.7 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 25.25 | 33.25 | 27.63 | 35.63 | 0.63 |
| LBR-16 | 13-16 | 1/2-5/8 | 16000 | 32000 | 14.55 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 26.38 | 34.38 | 29.44 | 37.44 | 0.72 |
Application:
Our Load Binder Ratchet Type is ideal for a wide range of transport applications, including:
- Trucking and Hauling: Used to secure loads on flatbed trucks, trailers, and other vehicles during transit.
- Shipping and Logistics: Essential for securing cargo containers and palletized goods during shipping and handling.
- Construction: Used for securing construction materials and equipment on job sites and transporting them safely.
How to Use:
- Select Proper Size: Choose the appropriate size of the load binder ratchet type based on the size and weight of the load to be secured, ensuring compatibility with the lashing capacity.
- Attach to Load: Attach the hooks of the load binder ratchet type to the anchor points or tie-down points on the load.
- Tensioning: Use the ratchet mechanism to tension the load binder ratchet type, applying sufficient tension to secure the load in place.
- Locking: Once the desired tension is achieved, lock the ratchet mechanism into place to prevent loosening during transportation.
- Release: To release the load, disengage the ratchet mechanism and release the tension, allowing for quick and easy removal of the load binder ratchet type.
| Weight | N/A |
|---|---|
| Chain Diameter (mm) | 10mm, 13mm, 16mm |
