ر.س 650.00 – ر.س 3,500.00 EX.VAT
Brand:
- Lightweight yet robust construction ensures easy handling and powerful lifting capabilities.
- Adjustable handles and tandem levers offer ergonomic operation and efficient power transfer.
- The built-in shearing pin prevents overload, while the anchor bolt provides versatile connection options for various lifting tasks.
Please Select Size
Ask An Expert

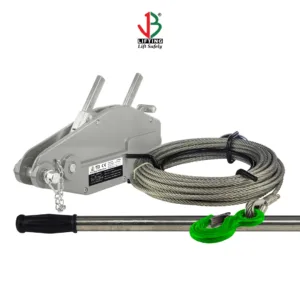

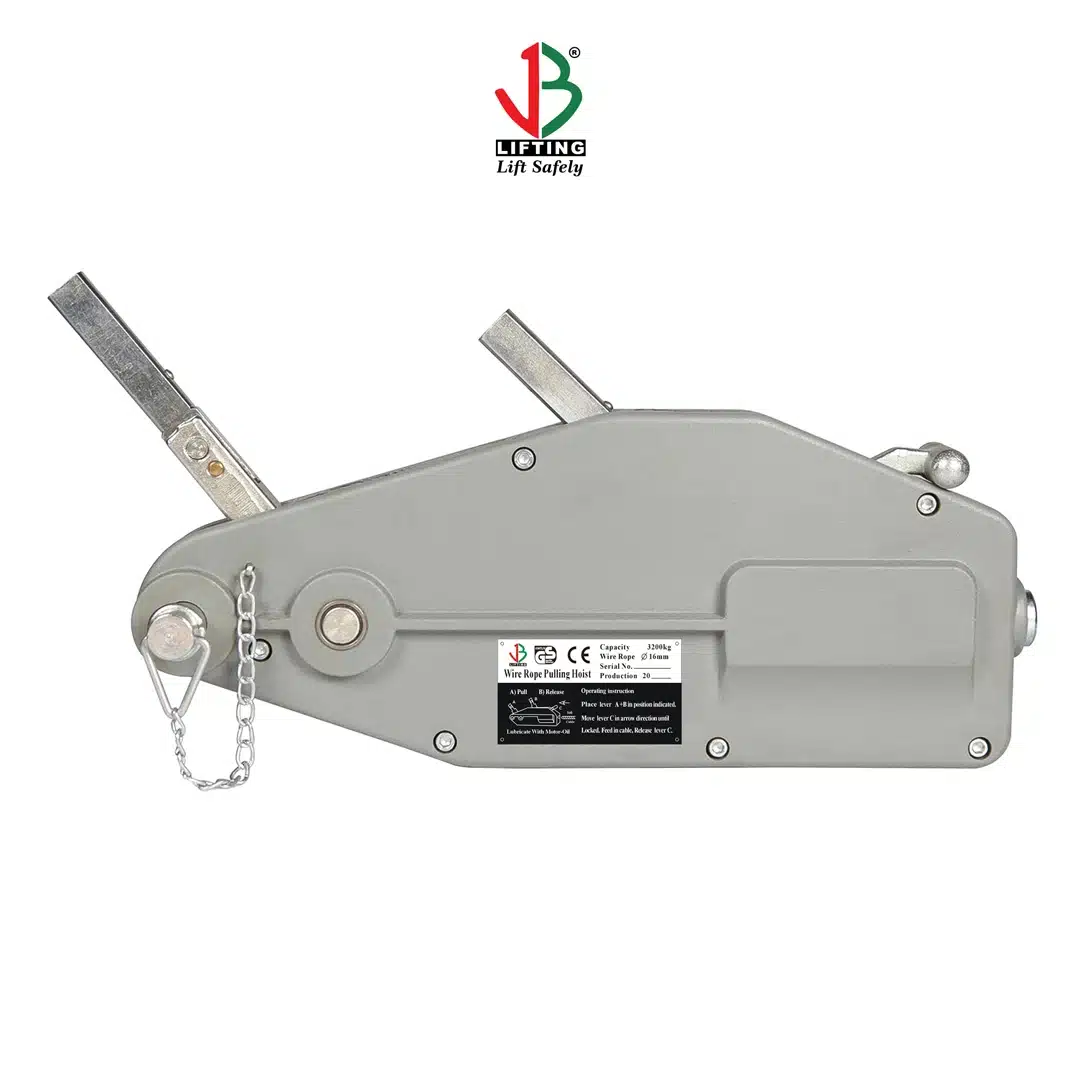

WIRE ROPE PULLER/HOIST
Wire Rope Puller machines are portable manual hoists used with flexible wire rope. They can be used to lift, pull and position loads over great distances depending on the wire rope length. They are suitable for use in numerous configurations and are the ideal solution for use in professional applications.
Key Features:
- EN 13157 Standard: Manufactured to meet EN 13157 standards, ensuring reliability and compliance with industry regulations.
- Quick Installation, Low Weight: Its low weight and quick installation make it convenient for various lifting applications.
- No Cable Length Limitation: With no limitation on cable length, this hoist offers flexibility in lifting operations.
- Robust and Powerful: Despite its manageable and lightweight design, this hoist is robust and powerful, capable of handling heavy loads effortlessly.
- Â Increase Load Capacity: Enhance load capacity with deflection sheaves, providing added versatility in lifting scenarios.
- Adjustable Handle: The adjustable handle ensures easy operation, adapting to different user preferences and requirements.
- Slim Design with Tandem Levers: Backward and forward levers are placed in tandem, providing a slim design while assuring efficient power transfer along the center.
- Built-in Shearing Pin: Prevents overload by functioning at approximately 50% overload, with replaceable pins that can be swapped without removing the load.
- Anchor Bolt for Versatile Connections: The anchor bolt offers numerous versatile connection possibilities with load hoods, sling ropes, and sling chains, enhancing operational flexibility.
- High-Strength Cast Aluminum Alloy Body: Crafted from high-strength cast aluminum alloy, quenched and tempered, this hoist is durable and reliable.
- Powder-Coated Finish: Powder-coated finish ensures corrosion resistance and provides a smooth surface for increased stability.
- Simple to Operate: Its lightweight and straightforward design makes it simple to operate, and suitable for various lifting tasks.
- Large, Flat Bottom Surface: The large, flat bottom surface enhances stability in both horizontal and vertical working positions, ensuring safe and efficient lifting operations.

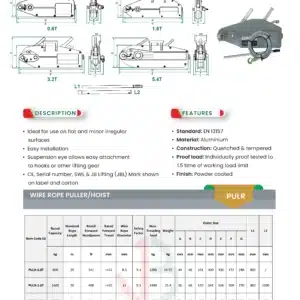

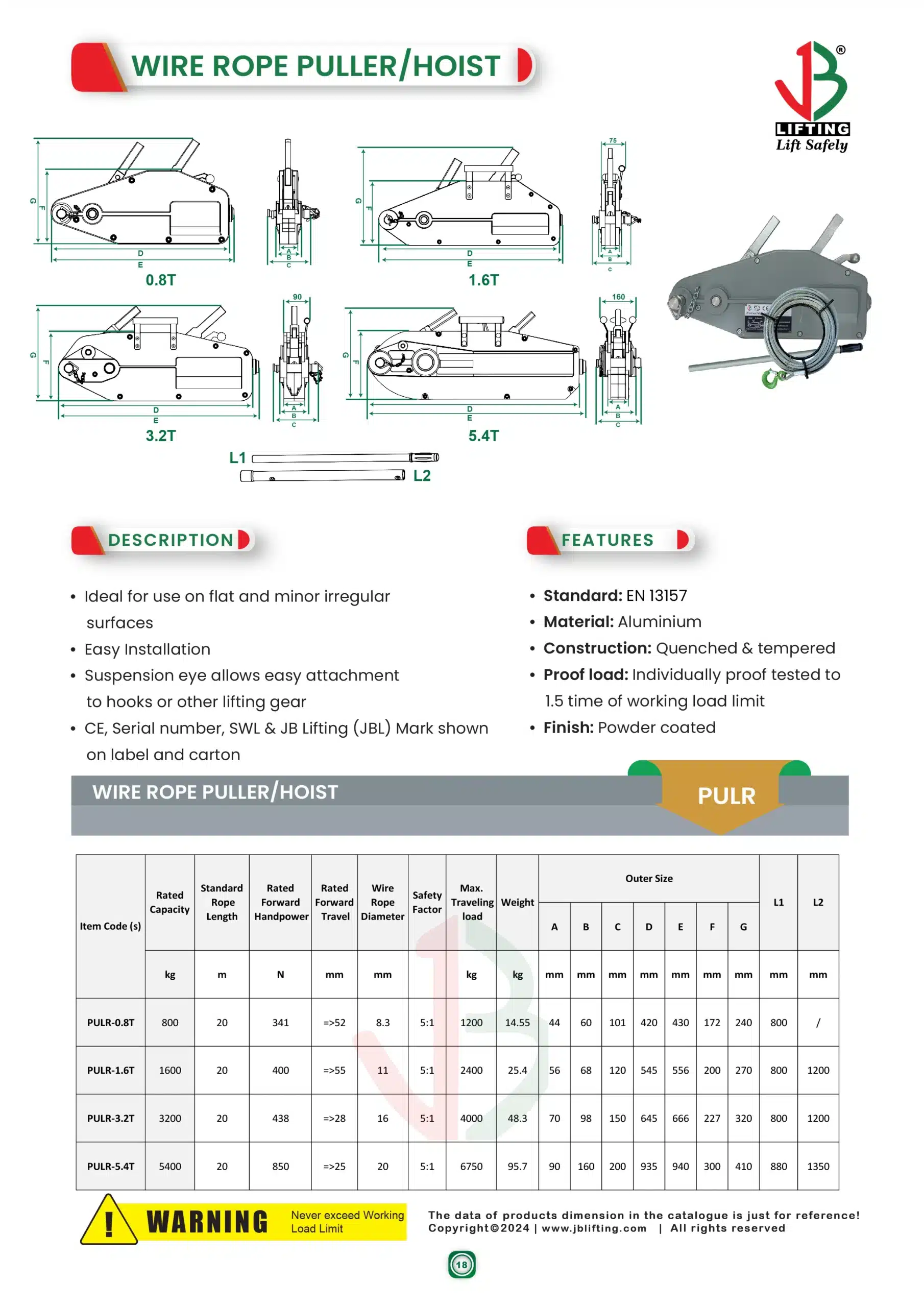

Specifications:
Wire Rope Puller / Portable hoist to lift and pull loads, for utilization in numerous configurations with steel wire rope.
| ItemCode(s) | Rated capacity | Rated forward hand power | Standard Rope Length | Rated forward travel(Swing if forward and backward) | Rope diameter | Wire rope safety factor load capacity | Safety factor & static load capacity | Max. traveling load | Max. outer size | Weight | ||||
| A | B | C | L1 | L2 | ||||||||||
| (Ton) | (Meter) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) | ||||||
| PULR0.8T | 0.8 | 341 | 20 | ≥52 | 8.3 | 5 | 5 | 1200 | 426 | 238 | 64 | 80 | 80 | 14.6 |
| PULR1.6T | 1.6 | 438 | 20 | ≥55 | 11 | 5 | 5 | 2400 | 545 | 284 | 97 | 80 | 80 | 26.4 |
| PULR3.2T | 3.2 | 438 | 20 | ≥28 | 16 | 5 | 5 | 4000 | 660 | 325 | 116 | 80 | 80 | 49.3 |
| PULR5.4T | 5.4 | 745 | 20 | ≥30 | 20 | 6 | 6 | 8000 | 930 | 480 | 152 | 80 | 120 | 98 |
Note: Custom lengths are available on request. Please Contact Us for your inquiry
Applications:
The Wire Rope Puller/Hoist is ideal for a wide range of lifting applications in industries such as construction, manufacturing, maintenance, and more. It can be used for lifting heavy objects, pulling loads, tensioning cables, and various other tasks requiring controlled lifting and pulling.
How to Use:
- Securely attach the hoist to a stable anchor point using the anchor bolt.
- Adjust the handle to a comfortable position for operation.
- Engage the appropriate lever (backward or forward) to initiate lifting or pulling action.
- Monitor load capacity and avoid overloading by utilizing the built-in shearing pin.
- Use deflection sheaves to increase load capacity if necessary.
- After completing the lifting or pulling operation, release the lever and secure the load as needed.
- Store the hoist in a safe and dry location after use, ensuring proper maintenance for long-term reliability.
| Weight | N/A |
|---|---|
| Size (Tonne) | 0.8T, 1.6T, 3.2T, 5.4T |
