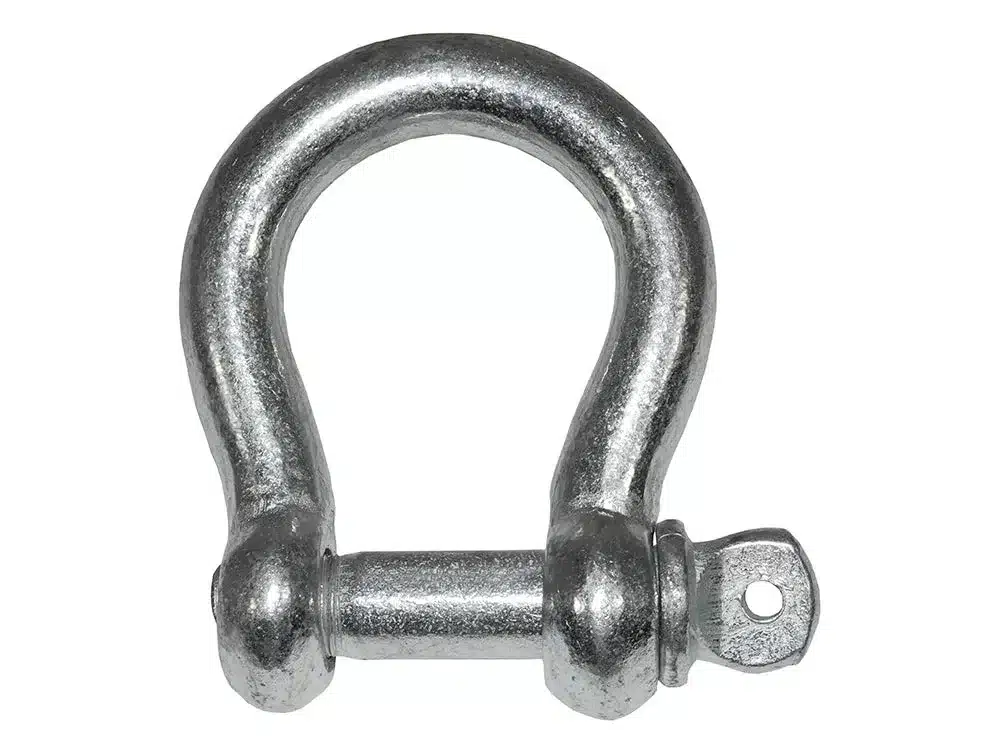

Stainless Steel Bow Shackle
- Robust Construction: Premium SS304/SS316 steel for superior strength.
- Corrosion Resistant: Rust-proof design for marine and outdoor use.
- Versatile Bow: Rounded shape allows for multi-directional loading.
- Reliable Connection: Precision-engineered for secure, stable rigging tasks.
Claim a Flat 15% Sitewide Savings!
Secure your professional lifting gear for less. Tap the code to copy and apply at checkout.
Stainless Steel Bow Shackle for Industrial and Marine Applications
Our high-quality stainless steel bow shackles provide the reliable connection needed for heavy-duty lifting, rigging, and securement across Saudi Arabian industrial and coastal sectors. Engineered with a robust rounded bow design, these shackles offer superior versatility for multi-directional loading, ensuring maximum safety and efficiency in demanding environments like Riyadh’s industrial zones and Dammam’s marine facilities.
Features:
These shackles are manufactured using advanced materials to ensure maximum performance and long-lasting durability in every application. These features make them a trusted choice for secure, high-stakes lifting and rigging tasks.
- Robust Material: Crafted from premium SS304 or SS316 grade stainless steel for exceptional strength.
- Corrosion Resistance: Highly resistant to rust and salt, making them perfect for marine or outdoor use.
- Versatile Bow Design: The rounded “O” shape allows for multi-directional loading and easy sling attachment.
- Reliable Securement: Designed to withstand heavy loads while ensuring a stable and secure connection point.
Technical Specifications:
Our rigging hardware meets stringent industrial safety requirements. Each bow shackle features precise engineering design parameters to handle extreme site conditions.
- Material Composition: Industrial-grade SS304 or SS316 stainless steel for maximum durability.
- Corrosion Resistance: Superior protection against moisture, chemicals, and saltwater environments.
- Design Standards: Engineered for heavy-duty lifting, towing, and structural securement.
- Load Capability: Precision-tested to support a wide range of Working Load Limits (WLL).

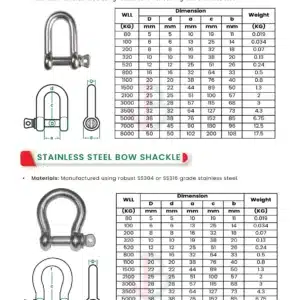

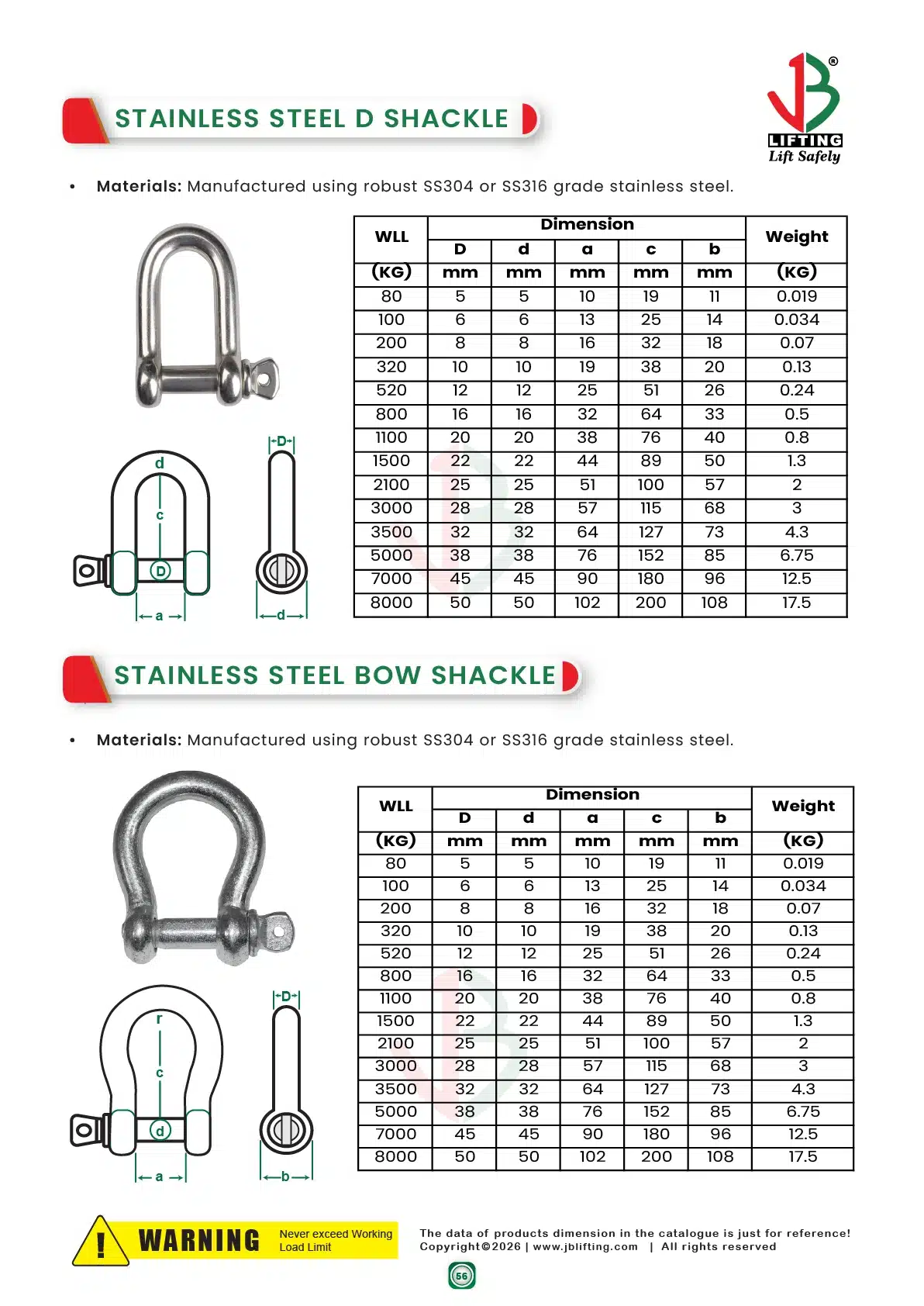

Data Table:
This table provides a comprehensive overview of our standard shackle specifications to help you choose the right fit. Please ensure you select the model that best matches your machinery requirements and specific load-bearing needs.

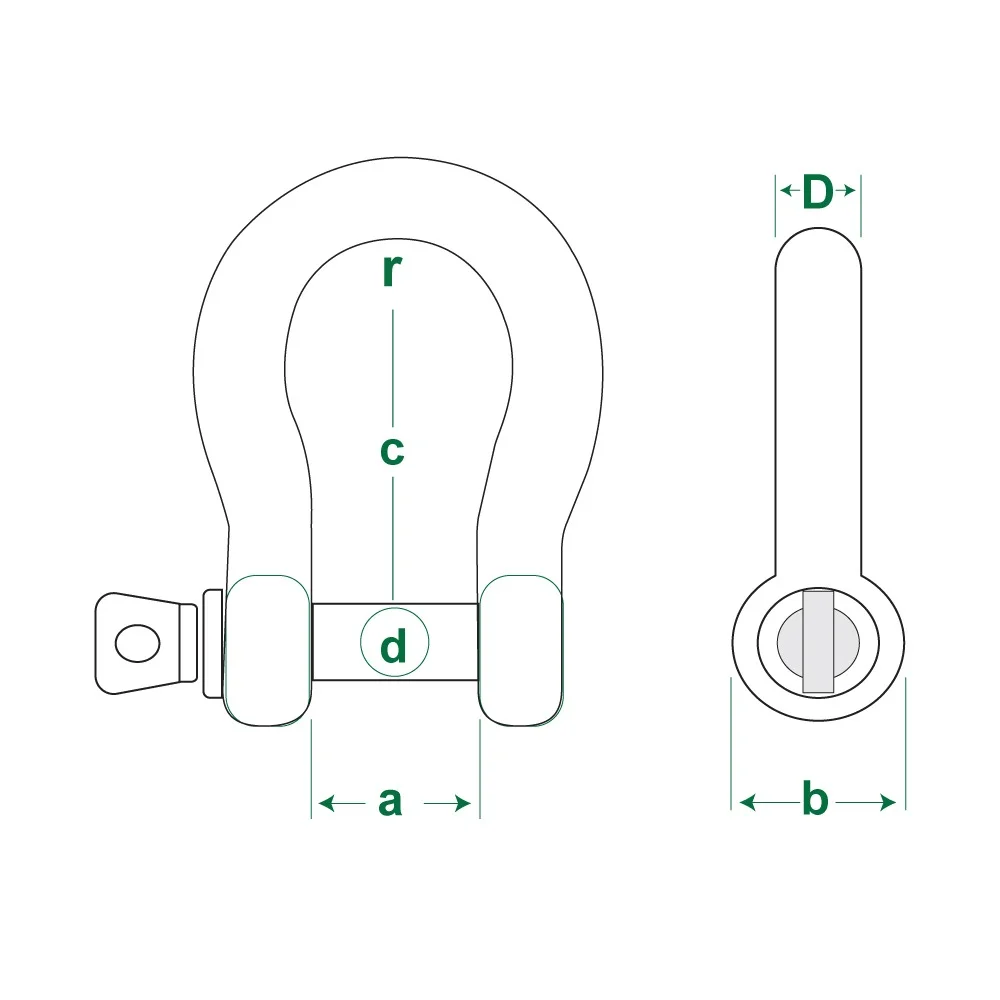

| WLL | Dimension | Weight | ||||
|---|---|---|---|---|---|---|
| D | d | a | c | b | ||
| (KG) | mm | mm | mm | mm | mm | (KG) |
| 80 | 5 | 5 | 10 | 19 | 11 | 0.019 |
| 100 | 6 | 6 | 13 | 25 | 14 | 0.034 |
| 200 | 8 | 8 | 16 | 32 | 18 | 0.07 |
| 320 | 10 | 10 | 19 | 38 | 20 | 0.13 |
| 520 | 12 | 12 | 25 | 51 | 26 | 0.24 |
| 800 | 16 | 16 | 32 | 64 | 33 | 0.5 |
| 1100 | 20 | 20 | 38 | 76 | 40 | 0.8 |
| 1500 | 22 | 22 | 44 | 89 | 50 | 1.3 |
| 2100 | 25 | 25 | 51 | 100 | 57 | 2 |
| 3000 | 28 | 28 | 57 | 115 | 68 | 3 |
| 3500 | 32 | 32 | 64 | 127 | 73 | 4.3 |
| 5000 | 38 | 38 | 76 | 152 | 85 | 6.75 |
| 7000 | 45 | 45 | 90 | 180 | 96 | 12.5 |
| 8000 | 50 | 50 | 102 | 200 | 108 | 17.5 |
Applications:
These shackles are essential for stabilizing and connecting heavy components across diverse industrial sectors. They are vital for maintaining connection integrity in the following environments
- Marine & Offshore: Ideal for boat rigging, anchoring, and saltwater-exposed operations.
- Industrial Lifting: Providing secure connection points for cranes, hoists, and heavy machinery.
- Construction Sites: Anchoring structural elements and securing temporary supports during infrastructure projects.
- General Rigging: Perfect for connecting slings, cables, and towing equipment in various logistics settings.
How To Use:
Proper installation is critical to ensuring the security and effectiveness of your bow shackles during any heavy lift. Follow these steps to correctly connect your equipment and maintain a safe load foundation.
- Inspect the Shackle: Check for any signs of deformation, cracks, or thread damage before every use.
- Align the Load: Ensure the shackle is properly aligned with the load to avoid any side-loading unless rated for it.
- Center the Load: Always position the sling or load on the center of the shackle’s bow, not on the pin, to ensure even distribution.
- Center the Load: Always position the sling or load on the center of the shackle’s bow, not on the pin, to ensure even distribution.
- Verify Securement: Confirm the pin is fully tightened and the shackle is not restricted by other hardware.
- Monitor Regularly: Observe the connection during the lifting operation to ensure no shifting or loosening occurs.
Warning:
Operating heavy-load equipment requires strict adherence to safety guidelines to prevent accidents or equipment failure. Please read these warnings carefully to ensure a safe working environment and maintain operational integrity.
- Load Limits: NEVER exceed the manufacturer’s specified Working Load Limit (WLL) for the shackle.
- Structural Health: NEVER use shackles showing visible signs of bending, deep cracks, or significant surface deformations.
- Stability Limits: NEVER subject the shackle to side-loading forces that exceed its documented design capabilities.
- Ground Contact: NEVER use a shackle pin that does not seat fully into the shackle eye; ensure it is properly secured at all times.
Precautions:
Taking proactive measures before and during rigging setup is vital to extending the lifespan of your gear. Follow these precautions to ensure maximum performance and maintain safety standards on your site.
- Regular Inspection: Conduct a thorough visual check for wear, corrosion, or thread damage before every single deployment.
- Surface Maintenance: Keep the threads clean and free of grit to ensure the pin remains easy to tighten and remove.
- Correct Sizing: Always ensure the shackle size and WLL are appropriate for the specific weight of the load and the lifting application.
- Proper Storage: When not in use, store your shackles in a clean, dry area away from direct exposure to harsh chemicals or corrosive elements.
Frequently Asked Questions (FAQs):
Q: What is the main difference between SS304 and SS316 stainless steel?
A: SS316 contains molybdenum, which provides superior corrosion resistance, making it the ideal choice for marine or high-salt environments.
Q: Can these shackles be used for overhead lifting?
A: Yes, provided they are properly rated for the lift, inspected before use, and the load does not exceed the stated Working Load Limit (WLL).
Q: Are these stainless steel shackles magnetic?
A: Generally, high-quality austenitic stainless steel shackles like SS304 and SS316 are non-magnetic, though some minor magnetism may occur due to manufacturing.
Q: How do I choose the right size shackle for my rigging project?
A: Select a shackle that matches or exceeds your load requirements and ensure the bow size is large enough to accommodate the slings or ropes you are connecting.
Q: How should I maintain my shackles to ensure they last longer?
A: Simply clean them with fresh water after exposure to saltwater, perform routine visual checks for signs of wear, and store them in a clean, dry environment.
