Anchor-Bow-Omega Shaped Shackle With Screw Pin

Anchor Bow Omega Shackle Screw Pin

Introduction:

Enhance your rigging operations with our Anchor Bow Omega Shackle Screw Pin a heavy duty anchor shackle with screw pin​ designed for safe and efficient overhead lifting. This anchor shackle with screw pin delivers superior strength and reliability in the most demanding industrial applications. This shackle screw pin anchor meets international standards optimal performance with safety. Our lifting shackles ensure secure perations in construction, marine, and transport industries.

⭐ Key Features:

Engineered for durability and tested for safety, this high-performance anchor bow shackle​ with screw pin is the go-to choice for professionals who demand strength and reliability. Discover why our lifting shackles lead the industry in quality.

1. Premium Build Quality: Manufactured from forged carbon steel, this anchor bow shackle is quenched and tempered for maximum toughness. The alloy screw pin offers additional security and long-term wear resistance.
2. Safety Assured: Each anchor bow shackle​ is permanently marked with size, WLL, and brand identity. It meets EN 13889 requirements and is proof load tested at 2x WLL, with a minimum break load of 6x W.L.L.
3. Corrosion-Resistant Coating: Hot-dip galvanized finish on the body and powder coating on the pin ensure resistance to rust and harsh environments
4. Crack Detection Guarantee: 100% magnaflux crack detection during production ensures flawless material integrity for the anchor shackle with screw pin.
5. Grade 6 Strength: This shackle screw pin anchor provides high tensile strength for critical applications in lifting and rigging.

⚙️ Specifications of Anchor Shackle Screw Pin:

When selecting lifting shackles for your job site, precision matters. This anchor bow shackle​ with screw pin is available in multiple sizes to accommodate various load requirements.

📏 Bow Shackle Dimensions​:

Looking for accurate anchor bow shackle​ dimensions? At SafeAndSecureKSA.com, we provide detailed specifications and top-quality shackles for your lifting and rigging needs.

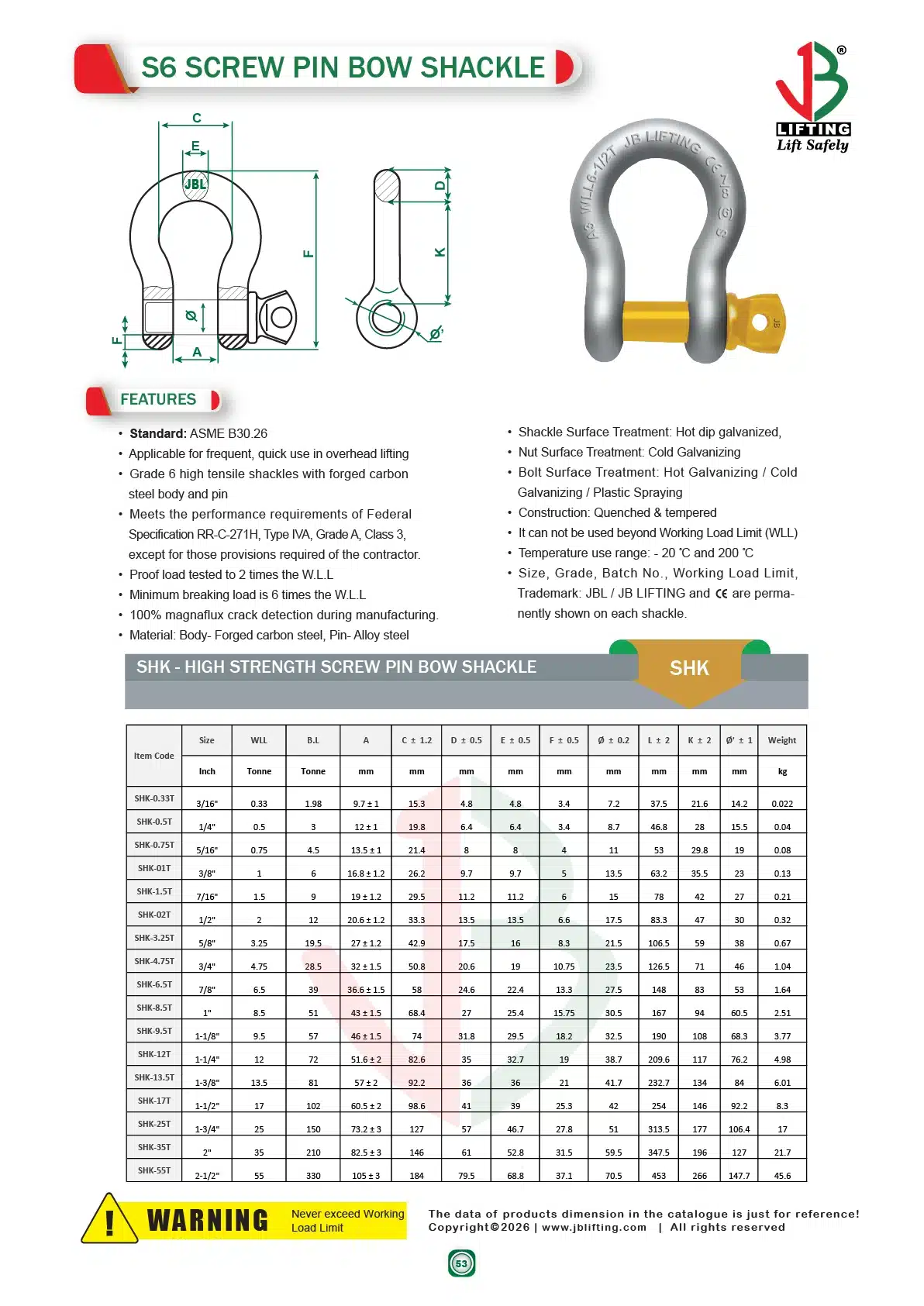

Anchor Shackle Screw Data Table:

Below is the technical specification table for our lifting shackles. Sizes range from 3/16″ to 2-1/2″, with working load limits up to 55 tonnes.

📦 Application:

The anchor bow shackle is ideal for frequent use in overhead lifting operations across industries such as construction, maritime, oil & gas, and heavy manufacturing. Its bow shape allows for multidirectional loading, making shackle screw pin anchor​ a reliable lifting solution when used with slings and hoists. Whether it’s used for general lifting or securing heavy equipment, our lifting shackles provide the dependable performance needed for professional environments.

🛠️ How to Use bow shackle:

Using a bow shackle with screw pin is straightforward, but following the correct procedures ensures optimal safety and performance.

1. Determine Working Load Limit: Refer to the markings on the shackle to identify its size and working load limit (W.L.L) before use. Ensure that the load to be lifted does not exceed the specified W.L.L.
2. Proper Installation: Securely attach the shackle to the lifting equipment using the screw pin provided. Ensure that the pin is properly threaded and tightened to prevent slippage or disengagement during lifting operations.
3. Safety Precautions:Before every use, thoroughly inspect the shackle for any signs of wear, damage, or deformation. Never exceed the specified working load limit, as doing so can seriously compromise safety and cause equipment failure.
4. Lifting Operations:When setting up for a lift, position the shackle correctly to keep the load balanced and securely fastened. Additionally, apply proper rigging techniques and select appropriate lifting equipment to safely lift and transport the load.
5. Post-Use Inspection:After completing the lift, carefully inspect the anchor shackle with screw pin for any visible damage or deformation. Then, clean the shackle and store it in a dry, well-ventilated area to prevent corrosion and extend its service life.Consistently, the Shackle Anchor-Bow-Omega Shaped with Screw Pin delivers dependable and durable performance in overhead lifting applications. Moreover, its high-quality construction, robust safety features, and superior corrosion resistance make this anchor shackle with screw pin a preferred choice for heavy-duty industrial use.

⚠️ Precautions:

To maintain the integrity and extend the lifespan of your lifting equipment, follow these five essential safety tips:

1. Always respect load limits – First and foremost, never exceed the specified Working Load Limit (W.L.L) of the anchor shackle with screw pin. Overloading can cause catastrophic failure and pose serious safety risks.
2. Inspect before use – Before every operation, check the shackle thoroughly for cracks, deformation, or excessive wear. By identifying damage early, you can prevent accidents and equipment failure.
3. Avoid improper loading – To preserve structural integrity, always avoid side loading. The anchor shackle with screw pin is designed for straight-line loads, and improper angles can lead to bending or breakage.
4. Secure the pin correctly – Each time you use the shackle, make sure the screw pin is fully seated and tightly secured. This simple step prevents accidental disengagement during lifting.
5. Store with care – After completing your task, clean the shackle and store it in a dry, well-ventilated area. Proper storage helps prevent corrosion and extends the useful life of your shackle screw pin anchor.

❓ Frequently Asked Questions:

Below are answers to common queries about the anchor shackle with screw pin to help users get the most from their lifting device:

1. What is the difference between a anchor shackle with screw pin​ and an anchor shackle?
   Although both terms are often used interchangeably, an anchor shackle with screw pin typically has a wider curve; therefore, it can handle multi-directional loads more effectively than a straight “D” anchor shackle with screw pin.
2. Can I use a lifting shackle for overhead lifting applications?
   Yes, our lifting shackles are rated for overhead lifting and meet EN 13889 safety standards.
3. How often should I inspect my shackle screw pin anchor?Therefore, we recommend inspecting your anchor shackle with screw pin​ with screw pin before every use and, additionally, conducting a detailed inspection periodically depending on usage frequency.
4. Is the anchor bow shackle resistant to corrosion?
   Absolutely. lifting shackles features a hot-dip galvanized body and a powder-coated pin for excellent resistance against rust and harsh environments.
5. What sizes are available for this product?
   We offer anchor shackle with screw pin​ ranging from 3/16″ (0.33T W.L.L) to 2-1/2″ (55T W.L.L), all compliant with international lifting standards.

Still have questions or need a custom solution? Contact our team today — we’re ready to help.
