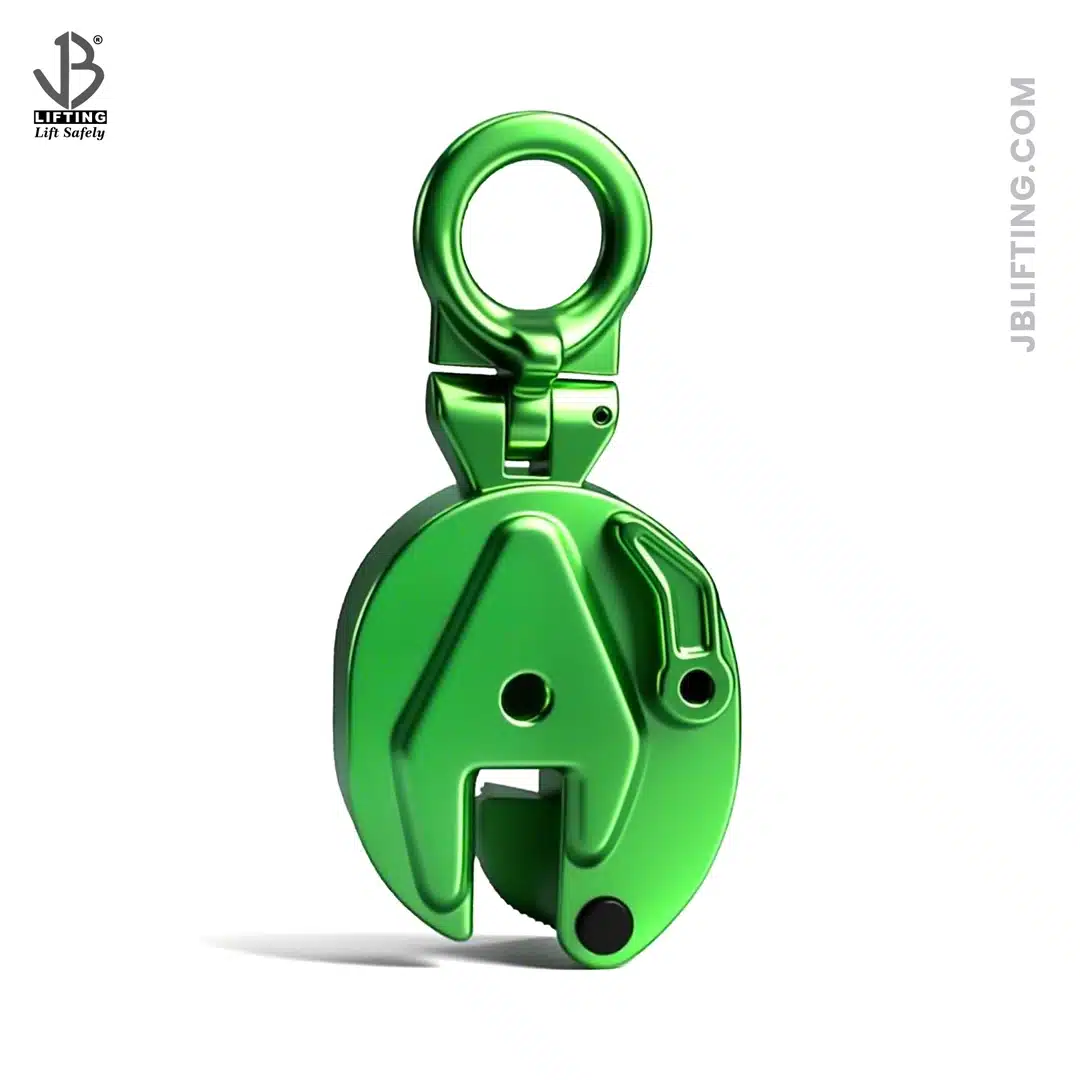

Vertical Plate Lifting Clamp
Price range: 300.00 ر.س through 3,500.00 ر.س EX.VAT
Brand:
- Load Capacity: Supports up to a massive 16-tonne working limit.
- Safety Mechanism: Prevents slipping during crane operations.
- Industrial Use: Perfect for transporting heavy steel structures safely.
- Articulated Shackle: Ensures exceptional maneuverability across lifting positions.
Vertical Plate Lifting Clamp
Logistics professionals across Saudi Arabia demand highly reliable rigging equipment daily. Therefore, choosing this robust hardware guarantees operational safety. Specifically, this equipment securely transports heavy steel structures effortlessly. Furthermore, industries in Riyadh rely on a durable vertical plate clamp heavily. Consequently, overhead hoisting tasks become significantly safer immediately. Additionally, utilizing an industrial plate lifting clamp prevents dangerous accidental drops. Ultimately, integrating high-quality vertical plate lifting clamps maximizes your daily workplace productivity safely.
Features:
Manufacturers forge this essential equipment safely for demanding industrial environments. Consequently, a vertical plate clamp delivers exceptional crane performance consistently.
- Articulated Shackle: Engineers utilize an articulated design for maximum structural flexibility.
- Enhanced Security: The safety mechanism secures a vertical plate lifting clamp flawlessly.
- Locking System: The hardware locks securely in both open and closed positions.
- Safety Margin: The minimum working limit equals ten percent of maximum capacity.
- Flawless Traceability: Clear engraved markings display the exact working load limit easily.
Technical Specifications:
Our versatile rigging hardware meets stringent Saudi Arabian shipping requirements. Furthermore, a heavy-duty plate lifting clamp features precise engineering parameters.
- Material Suitability: Hardened steel ensures absolute structural integrity during operations.
- Safety Factor: This sturdy plate lifting clamp withstands rigorous industrial tasks easily.
- Jaw Opening: The mechanism accommodates materials up to 100 millimeters wide safely.
- Testing Standard: Inspectors apply strict test loads ensuring complete operational reliability always.
Data Table:
Review the comprehensive load capacities for these vertical lifting clamps below. Consequently, you can verify the perfect operational lifting measurements clearly.
| ItemCode(s) | WLL | Test Load | Jaw Opening | Dimensions | Net weight | Order & Pricing | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R | S | C | U | T | V | X | W | Y | ||||||
| Tonne | kN | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | ||
| LCA0.5 | 0.5 | 7.35 | 0-15 | 17 | 44 | 128 | 212 | 30 | 103 | 36 | 35 | 10 | 1.9 | |
| LCA01 | 1 | 14.7 | 0-20 | 22 | 63 | 167 | 295 | 48 | 138 | 50 | 51 | 12 | 4.5 |
300.00 ر.س EX.VAT
|
| LCA02 | 2 | 29.4 | 0-25 | 27 | 76 | 202 | 370 | 60 | 164 | 52 | 56 | 16 | 7.5 |
400.00 ر.س EX.VAT
|
| LCA03 | 3 | 44.1 | 0-30 | 32 | 85 | 237 | 418 | 65 | 193 | 78 | 59 | 20 | 14.8 |
500.00 ر.س EX.VAT
|
| LCA05 | 5 | 73.5 | 0-50 | 55 | 90 | 262 | 480 | 76 | 232 | 90 | 59 | 20 | 23 |
880.00 ر.س EX.VAT
|
| LCA08 | 8 | 117.5 | 0-45 | 45 | 112 | 330 | 600 | 85 | 263 | 100 | 77 | 22 | 37 |
1,000.00 ر.س EX.VAT
|
| LCA12 | 12 | 176.4 | 50-90 | 90 | 145 | 380 | 700 | 90 | 490 | 113 | 100 | 25 | 50 |
2,500.00 ر.س EX.VAT
|
| LCA16 | 16 | 235.2 | 60-100 | 100 | 155 | 410 | 712 | 100 | 425 | 113 | 110 | 30 | 65 |
3,500.00 ر.س EX.VAT
|
Applications:
Contractors deploy vertical lifting clamps across multiple demanding industrial sectors. Specifically, this robust equipment optimizes workflow significantly.
- Construction: Builders in Jeddah hoist heavy steel plates securely using this gear.
- Shipbuilding: Maritime operators in Dammam secure massive metal sheets efficiently daily.
- Manufacturing: Factory workers utilize vertical plate lifting clamps dynamically.
- Rigging: Professionals follow strict OSHA rigging standards during complex cargo lifts.
- Fabrication: Metalworkers manage bulky loads using plate clamps for lifting safely.
How To Use:
Operators must handle a vertical plate clamp with absolute professional care. Therefore, follow these precise steps when utilizing this hardware.
- Inspect the vertical plate lifting clamp thoroughly before lifting any industrial cargo.
- Verify the engraved working load limit clearly matches your specific payload.
- Position the hardware securely on the steel plate ensuring proper alignment.
- Engage the articulated lifting shackle properly to prevent accidental load release.
- Lift materials smoothly to avoid dangerous sudden dynamic impacts entirely.
- Monitor vertical lifting clamps continuously during heavy operations in Mecca facilities.
Warning:
Improper usage of this rigging hardware causes severe workplace accidents. Consequently, safety officers in Medina strictly enforce operational guidelines.
- Never exceed the clearly stamped maximum working load limit under any circumstances.
- Avoid hoisting heavy loads over unsuspecting personnel or crowded warehouse areas.
- Do not use vertical plate lifting clamps showing visible stress cracks.
- Always replace damaged plate clamps for lifting immediately without any dangerous delay.
Precautions:
Workers should maintain equipment in optimal condition always. Furthermore, proper warehouse storage extends the lifespan of rigging gear significantly.
- Clean the metal surfaces thoroughly after every demanding industrial shift ends.
- Store the rigging gear in a dry, well-ventilated dedicated warehouse space.
- Apply light lubrication to the articulated mechanism regularly for operational smoothness.
- Keep this specialized gear away from highly corrosive industrial chemical substances.
Frequently Asked Questions (FAQs):
- What is this lifting hardware used for?
Typically, professionals use this forged component for secure overhead steel transportation. Furthermore, it easily accommodates massive metal sheets effectively. - How does the safety mechanism improve security?
This specialized device features a secure locking mechanism. Consequently, it effectively prevents dangerous slipping while lifting or lowering loads. - Can I use a single unit for hoisting?
Yes, depending on the specific plate dimensions and weight distribution. However, operators must ensure perfect balance during all lifting operations. - How often should I inspect this rigging tool?
Operators must inspect this robust hardware before every single use. Additionally, perform detailed periodic inspections depending on your usage frequency. - What is the minimum working load limit?
The minimum capacity equals ten percent of the maximum limit. Therefore, always maintain loads above this strict safety threshold safely.
Still have questions or need a custom solution? Contact our team today — we’re ready to help.
| Weight | N/A |
|---|---|
| Size (Tonne) | 0.5T, 1T, 2T, 3T, 5T, 8T, 12T, 16T |
