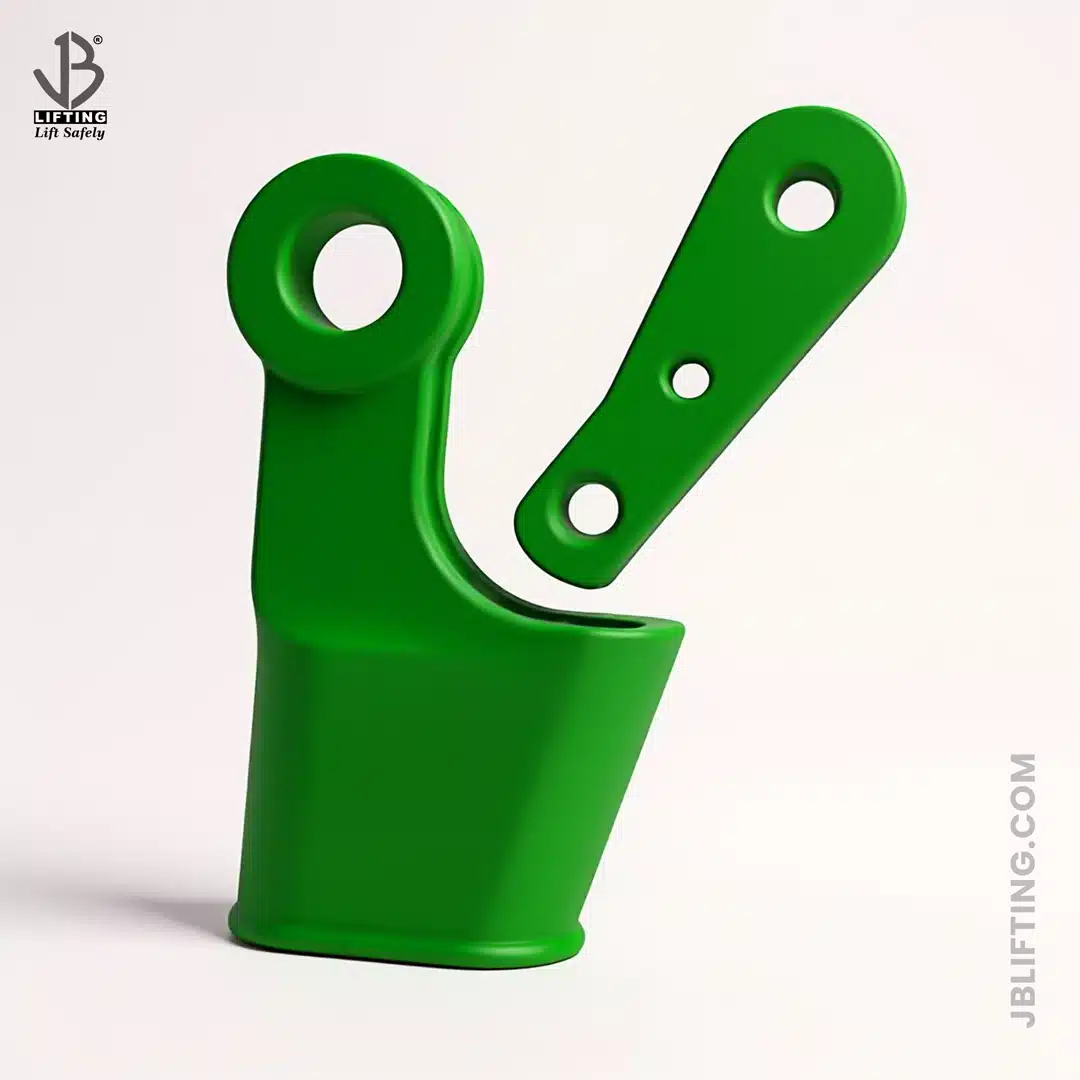

Wire Rope Wedge Socket
A premium wire rope wedge socket secures essential lifting cables across Saudi Arabia efficiently. Therefore, construction managers in Riyadh trust this reliable wedge socket for wire rope daily. Furthermore, this heavy-duty hardware functions perfectly as a compatible alternative to a standard crosby wedge socket. Specifically, fleet operators in Jeddah utilize these dependable devices for mobile crane operations. Consequently, the durable assembly anchors heavy loads without compromising wire integrity. Ultimately, superior load restraint defines our premium industrial rigging hardware.
Features:
Advanced engineering maximizes the performance of our reliable rope wedge socket equipment. Please review the key features of our securing hardware below.
- Structural Integrity: Forged steel bodies provide immense strength for heavy lifting actively.
- Cable Protection: The internal groove prevents cable deformation during heavy tensioning reliably.
- Quick Assembly: The removable pin ensures rapid connection to heavy crane blocks.
- Visual Inspection: The open design allows riggers to inspect cable seating easily.
- Corrosion Defense: Specialized industrial coatings offer extreme environmental protection against harsh climates.
- Versatile Application: This hardware accommodates various cable diameters securely and efficiently.
Technical Specifications:
Rigorous testing defines the industrial reliability of our robust rope wedge socket. The following specifications outline its precise structural metrics.
- Base Material: Manufacturers craft the main body completely from quenched forged steel.
- Capacity Range: Safe working limits scale from 1.2 up to 18.1 tonnes.
- Cable Sizes: This wedge socket accommodates cables from 9mm to 38mm precisely.
- Breaking Load: Maximum breaking limits range from 59.04 KN to 45.3 tonnes.
- Hardware Safety: We engineered this specifically for demanding industrial overhead lifting tasks.
- Traceability Integration: Each certified unit includes a unique identification code for compliance.

Data Table:
Procurement managers across Saudi Arabia require precise technical data for fleet compliance. Review the certified dimensions below.
| Item code(s) | WIRE ROPE DIA | DIMENSION (mm) | SWL (tonne) | PL (tonne) | MBL (KN) | N.W (kg) | Order & Pricing | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | A | B | C | D | P | ||||||
| WSKT-10 | 3/8 | 9-10 | 143 | 70.5 | 20.5 | 20.5 | 39.6 | 1.2 | 3 | 59.04 | 1.5 |
250.00 ر.س EX.VAT
|
| WSKT-13 | 1/2 | 11-13 | 173 | 90 | 25.4 | 25.4 | 49.5 | 2.1 | 5.3 | 104 | 2.6 |
250.00 ر.س EX.VAT
|
| WSKT-16 | 5/8 | 14-16 | 208 | 111 | 32 | 30 | 57 | 3.3 | 8.2 | 161.6 | 3.8 |
790.00 ر.س EX.VAT
|
| WSKT-19 | 3/4 | 18-19 | 248 | 118 | 38 | 35 | 66.5 | 4.7 | 11.7 | 230.4 | 6.2 |
1,050.00 ر.س EX.VAT
|
| WSKT-22 | 7/8 | 20-22 | 283 | 122 | 44.5 | 41.5 | 79 | 6.4 | 15.9 | 312 | 9.8 |
1,050.00 ر.س EX.VAT
|
| WSKT-26 | 1 | 24-26 | 324 | 128 | 50.8 | 50.8 | 95 | 8.3 | 20.6 | 404.8 | 15 | |
| WSKT-28 | 1-1/8 | 28 | 365 | 140 | 57 | 57 | 108 | 10.4 | 25.9 | 508.8 | 21 |
3,740.00 ر.س EX.VAT
|
| WSKT-32 | 1-1/4 | 30-32 | 406 | 202 | 63.5 | 57 | 120 | 12.8 | 31.9 | 625.6 | 26 |
4,125.00 ر.س EX.VAT
|
| WSKT-36 | 1-3/8 | 36 | 465 | 220 | 69 | 64 | 130 | 15.4 | 38.5 | 754.4 | 38 | |
| WSKT-38 | 1-1/2 | 38 | 505 | 235 | 75 | 70 | 150 | 18.1 | 45.3 | 888 | 48.5 |
4,125.00 ر.س EX.VAT
|
Applications:
Versatility makes this wire rope wedge socket essential for various transportation sectors. We recommend these robust tools for regional applications.
- Crane Operations: Secures heavy cables reliably on Riyadh construction site tower cranes.
- Port Logistics: Protects lifting lines efficiently at busy Jeddah marine shipping ports.
- Oil and Gas: Riggers secure heavy drilling equipment safely across Jubail extraction sites.
- Mining Extraction: The hardware anchors large machinery lines during heavy transit operations.
- Heavy Haulage: Operators utilize strong tensioning devices for safely transferring industrial assets.
- Infrastructure Repair: Workers stabilize suspension bridge cables actively inside Dammam repair facilities.
How To Use:
Proper deployment ensures your wire rope wedge socket works effectively and safely. Follow these exact steps to utilize your rigging equipment properly.
- Selection: Choose the appropriate assembly based on your exact cable diameter.
- Insertion: Thread the live cable end through the socket and wedge.
- Loop Creation: Create a loop and insert the wedge securely inside.
- Seating: Apply a sudden load to seat the internal wedge completely.
- Tail Securement: Fasten the dead end using a specialized wire rope clip.
- Inspection: Verify the pin mechanism is fully engaged before heavy lifting.
Warning:
Safety remains critical when hauling bulk industrial freight across the Kingdom. Please observe these important warnings regarding our securing hardware.
- Incorrect Orientation: Never attach the live cable to the wrong socket and wedge side.
- Overload Hazard: Never exceed the specified maximum safe working load limit.
- Hardware Integrity: Discard the tool if the forged body shows visible cracks.
- Dead End Clip: Never attach the dead end directly to the live line.
- Incompatible Chains: Avoid using cables that do not match the specified groove.
Precautions:
Proper handling preserves the integrity of your logistics solutions indefinitely. Implement these precautions when managing your transportation hardware.
- Storage Environment: Always store the wedge socket for wire rope in dry places.
- Routine Inspection: Check the pin and cotter for signs of wear regularly.
- Lubrication Need: Grease the internal pin routinely to maintain smooth movement always.
- Load Guidelines: Apply loads according to strict international wire rope standards precisely.
- Environmental Exposure: Clean the tool immediately after exposure to harsh corrosive chemicals.
Frequently Asked Questions (FAQs):
1. Is this equipment safe for heavy overhead lifting?
Yes, this hardware secures critical heavy freight efficiently and safely.
2. How does this compare to a crosby wedge socket?
It provides comparable industrial strength and fully complies with international standards.
3. What material comprises this specific wedge socket?
The manufacturer crafts the main body entirely from quenched forged steel.
4. Can I reuse the internal wedge component safely?
Yes, you can reuse it if thorough inspections reveal no deformation.
5. How much weight can the largest model handle?
The largest model safely manages an eighteen tonne working load limit.
Still have questions or need a custom solution? Contact our team today — we’re ready to help.
