Plain Beam Trolley

Industrial Plain Beam Trolley

Introducing the Plain Beam Trolley, a heavy-duty lifting solution designed to enhance material handling in Saudi Arabia. Built with premium carbon steel, this high-performance trolley ensures durability and reliability in industrial environments with a factor of safety of 4:1.With its seamless operation on various surfaces, the Plain Beam Trolley is an ideal choice for diverse applications across Saudi Arabia, from construction sites to warehouses. Equipped with advanced safety features and easy installation, it promises efficient and smooth movement for all your lifting needs.

⭐ Key Features:

Discover the standout qualities that make our product reliable, durable, and efficient. These key features highlight the advanced design, safety enhancements, and performance benefits that ensure optimal operation in demanding industrial environments.

1. Built for Durability: The Plain Beam Trolley features heavy-duty construction, ensuring long-lasting, reliable performance in demanding industrial environments.
2. Glides Smoothly: Its moving wheel, equipped with sealed ball bearings, enables smooth and efficient travel along beams and tracks.
3. Enhanced Safety with Anti-Drop Plates: Fitted with anti-drop plates, the trolley prevents accidental disengagement during operation, offering added safety.
4. Optional Buffer Rubber Blocks Available: For quieter and more cushioned operation, users can easily install optional buffer rubber blocks.
5. Engineered for Strength: The forged steel moving wheel delivers exceptional strength and durability, making it ideal for handling heavy loads.
6. Versatile on Surfaces: Designed to operate on both flat and slightly uneven surfaces, the push beam trolley adapts to a variety of environments.
7. Installs Easily: Thanks to its user-friendly design, the Plain Beam Trolley can be installed quickly and without hassle.
8. Convenient Suspension Eye: The integrated suspension eye simplifies connection to hooks and other lifting gear, enhancing operational efficiency.
9. Certified and Traceable: The trolley complies with CE standards and includes essential safety markings such as traceability codes, Working Load Limit (WLL), and JBL.
10. Meets EN 12195 Standards: Built according to EN 12195 specifications, the trolley upholds strict quality and performance standards.
11. Quenched & Tempered for Reliability: Its quenched and tempered construction increases strength and reliability, especially in heavy-duty applications.
12. Individually Proof Tested: Each unit undergoes individual proof testing at 1.5 times its working load limit, ensuring maximum safety and performance.
13. Corrosion-Resistant Finish: The powder-coated finish not only gives a sleek look but also adds resistance to corrosion, extending the product’s service life.

⚙️ Industrial Plain Beam Trolley Specification:

Below are the specifications for the Industrial Plain Beam Trolley, detailing important features such as load capacities, adjustable beam width ranges, wheel dimensions, and overall unit weight. These specifications are essential for selecting the correct trolley model to ensure a secure fit, smooth movement, and safe operation in a variety of industrial lifting applications.

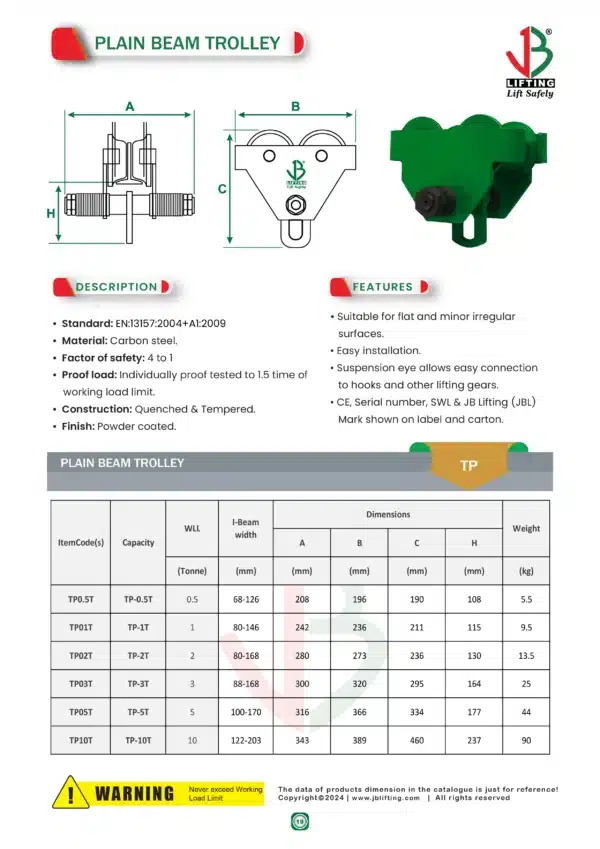

📐 Beam Trolley Line Diagram​:

Below are the key diagram specifications of the push beam trolley, including measurements such as beam width range, wheelbase, and overall height.

Beam Trolley Data Table​:

Here is the Beam Trolley Data Table outlining essential specifications such as load capacity, adjustable beam width range, wheel size, and unit weight.

📝 Note: Need a custom length? Reach out to our team for a tailored solution.

📦 Applications:

The Plain Beam Trolley is ideal for a wide range of industrial applications, including but not limited to:

1. Manufacturing facilities
2. Warehouses
3. Construction sites
4. Shipyards
5. Maintenance operations

🛠️ How to Use:

Follow these simple steps to ensure safe and efficient operation of the push beam trolley. Begin by inspecting the unit for any visible damage or wear.

1. Inspect the push beam trolley​ for any visible damage or defects before use.
2. First, securely attach the suspension eye to the lifting gear or hook.
3. Next, place the trolley onto the beam or track, ensuring proper alignment with the load.
4. Then, adjust the trolley as necessary to accommodate the load and ensure smooth movement.
5. Once in position, engage the anti-drop plates to prevent accidental disengagement.
6. Afterward, operate the trolley smoothly along the beam or track, avoiding sudden movements or overloading.
7. Finally, inspect the trolley for any signs of wear or damage and store it in a safe location.

⚠️ Precautions:

To ensure safe and reliable use of the push beam trolley, always perform a thorough inspection of the trolley and suspension eye for any signs of wear, cracks, or damage before each use.

1. Always inspect the push beam trolley and suspension eye for wear, cracks, or other damage before use to prevent equipment failure.
2. Ensure the beam size is within the specified width range for the model being used to maintain secure installation and safe operation.
3. Never exceed the rated working load limit (WLL) to avoid structural failure or accidents.
4. Engage the anti-drop plates properly after installing the trolley to prevent it from dislodging during operation.
5. Avoid abrupt or jerky movements while moving loads to prevent destabilization or strain on the trolley components.

❓ Frequently Asked Questions (FAQs)

Below are answers to common queries about the Industrial Plain Beam Trolley to help users get the most from their lifting device:

1. What is the capacity range of the push beam trolley?
   The Plain Beam Trolley is available in multiple capacities, ranging from 0.5 tonnes to 10 tonnes, making it suitable for a wide variety of lifting tasks.
2. Can the trolley fit different beam sizes?
   Yes, each model is adjustable and designed to fit a range of I-beam widths—from 68 mm to 203 mm depending on the model—ensuring compatibility with standard beams.
3. What safety certifications does the trolley comply with?
   The trolley is manufactured according to EN 12195 standards and includes CE marking, a traceability code, working load limit (WLL), and JBL for regulatory compliance.
4. Are anti-drop features included?
   Yes, the trolley includes anti-drop plates as a built-in safety feature to prevent accidental disengagement during operation.
5. Is individual testing performed on each unit?
   Absolutely. Each unit is proof tested individually to 1.5 times its rated working load limit to ensure safety and performance reliability.

Still have questions or need a custom solution? Contact our team today — we’re ready to help.
